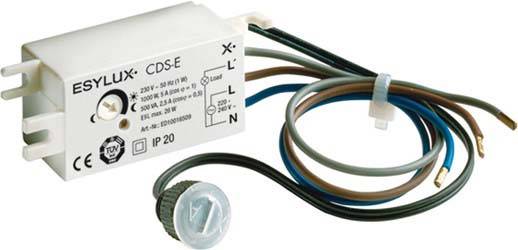

ESYLUX ED10016509 Twilight switch White 230 V 1 maker
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design of the sensor: Light sensor separately
- Contacts: 1 closer
- Switch-on brightness: 5..300 lx
- Switch-off brightness: 5..300 lx
- Switch-off delay 60 s
- Switch-on delay 60 s.
- Suitable for C load: Yes
- With automatic night switch-off: no.
- Mounting type: Flush-mounted
- Swivel: no.
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: no.
- Surface: Untreated
- Surface type: Matt
- RAL number (similar): 9010
- Transparent: no.
- Max. Switching current (resistive load): 4.5 A.
- Operating temperature -25..70 °C.
- Min Depth of device socket: 50 mm
- Product type
Twilight switch
- Operating voltage
230 V
- Contact type
1 maker
- Max. switching capacity
1000 W
IP44
- Factory colour
White
- Dim
(L x W x H) 70 x 26 x 24 mm
- Length
70 mm
- Width
26 mm
- Height
24 mm
- Similar RAL
9010
- Mounting type
Flush mount
- Switching capacity
1000 W
230 V
70
FALSE
26 mm
60 mm
-25-70 °C
9010
FALSE
FALSE
50
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1958549 ESYLUX ED10016509 Twilight switch White 230 V 1 maker
User & Safety Instructions
User & Safety Instructions 1958549 ESYLUX ED10016509 Twilight switch White 230 V 1 maker
Description
Twilight switch for retrofitting in outdoor lights and junction boxes. Small design enables flexible use. High switching capacity ESL and PL up to 26 W. Additional mounting brackets for a secure attachment. LED adjustment aid (delay-free). Housing made of UV-stabilized polycarbonate. Settings on the device with potentiometer for light values.
