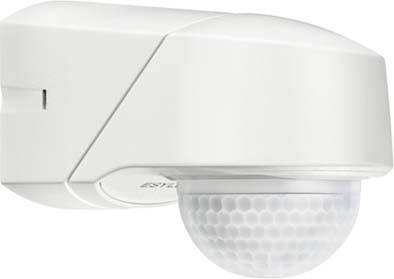

ESYLUX EM10015311 Surface-mount Motion detector 230 ° White IP54 Non-stop lighting mode
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: no
- Forced cut-off: no
- Animal - i.e up: no
- Sneak/field monitoring: yes
- Can be interlinked: no
- Scan angle: 230°
- Optimum mounting height: 2.5 m
- Staircase monitoring: yes
- Bypass switch: no
- Max. The Front Range: 8 m
- Detection field diameter on floor: 40 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: yes
- Adjustable threshold: yes
- With Signal Unit: no
- Teach function for the light-intensity threshold: yes
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: yes
- Abdimmfunktion with dimming use: no
- Mounting type: wall mounted
- Connection type: screw terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: no
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- RAL-number (similar): 9010
- Transparent: no
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Min. Switch-on duration: 15 s
- Max. duty cycle 30 min
- Switch-off delay: 0 s
- On-delay 5 s
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 16 A
- Control current 0 mA
- Extension input: no
- Alarm function: no
- Depth: 135 mm
- Product type
Motion detector
- Detection angle
230°
20 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
2 - 2500 lux
- Time settings
15 s - 30 min
- Factory colour
White
- Similar RAL
9010
IP54
- Operating temperature
-25°C to +55 °C
- Type
Motion detector
- Width
78 mm
- Height
105 mm
- Dim
(W x H x D) 78 x 105 x 135 mm
- Weight
0.26
- features
Non-stop lighting mode
- Depth
135 mm
- Max. temperature
55 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1965313 ESYLUX EM10015311 Surface-mount Motion detector 230 ° White IP54 Non-stop lighting mode
User & Safety Instructions
User & Safety Instructions 1965313 ESYLUX EM10015311 Surface-mount Motion detector 230 ° White IP54 Non-stop lighting mode
Description
Motion detector with 230° detection range and a high range. 360° creep zone protection for a complete detection, can be switched off via the remote control. Can be programd via remote control, for example Continuous light ON/OFF and automatic einlesefunktion of the current light value. Hard background program provides for an immediate readiness for operation. Avoiding operating errors through integrated selector switch for test function/remote control/potentiometer setting. One-hand base mounting. Double the membrane cable entry. Concealed connection socket with a large wiring space. The range adjustment of the sensor with additional Focus LED as the setting help. Retractable setting elements prevent accidental adjustment of parameters. Wall or ceiling mounting is without accessories, thanks to swivel joint, possible. Hide individual sections enclosed by cap (can be cut to size). Special socket for inner and outer corner mounting as accessory.
