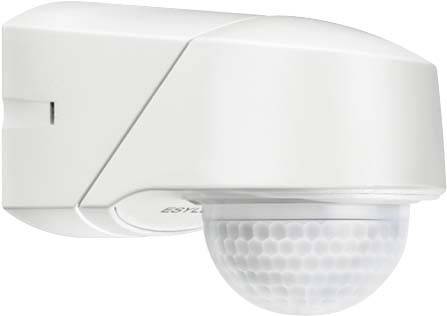

ESYLUX EM10015472 Surface-mount Motion detector 360 ° White IP54
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: yes
- Bus-KNX radio: no
- Funkbus bus system: no
- LON bus system: no
- Powernet bus system: no
- Other bus systems: without
- Bi-directional radio: no
- Mounting type: wall mounted
- Material: plastic
- Material: thermoplastic
- Untreated surface:
- Design of the surface: mat
- RAL-number (similar): 9010
- Transparent: no
- With bus coupling: yes
- Extension input: no
- Sneak/field monitoring: yes
- Mode switch: no
- Animal - i.e up: yes
- Staircase monitoring: no
- Adjustable threshold: yes
- Teach function for the light-intensity threshold: yes
- Switch-off delay is self-learning: no
- Optimum mounting height: 2.5 m
- Max. The Front Range: 8 m
- Detection field diameter on floor: 40 m
- Detection angle, vertical: 0..90°
- Detection angle horizontal 180°. .230
- Number of Channels: 2
- The number of binary inputs: 0
- Power rating: 0 W
- Min. Switch-on duration: 60 s
- Max. duty cycle 30 min
- Product type
Motion detector
- Detection angle
360°
20 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Voltage (max.)
31 V
- Twilight settings
2 - 1000 lx
- Factory colour
White
- Similar RAL
9010
IP54
- Type
Motion detector
- Length
135 mm
- Width
78 mm
- Height
105 mm
- Dim
(L x W x H) 135 x 78 x 105 mm
- Weight
0
- Voltage (min.)
29 V
78
Movement sensor
105 mm
135 mm
TRUE
TRUE
FALSE
FALSE
TRUE
FALSE
9010
FALSE
FALSE
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962401 ESYLUX EM10015472 Surface-mount Motion detector 360 ° White IP54
Description
KNX motion detector with 230° detection range and a high range. 360° creep zone protection for complete coverage. Can be programd via the ETS. Avoiding operating errors through integrated selector switch for test function/remote control/potentiometer setting. One-hand base mounting. Double the membrane cable entry. Concealed connection socket with a large wiring space. The range adjustment of the sensor with additional Focus LED as the setting help. Retractable setting elements prevent accidental adjustment of parameters. Wall or ceiling mounting is without accessories, thanks to swivel joint, possible. Hide individual sections enclosed by cap (can be cut to size). Special socket for inner and outer corner mounting as accessory.
