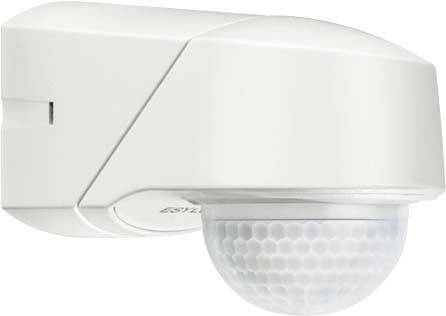

ESYLUX EM10015649 Surface-mount Motion detector 230 ° White IP54 Non-stop lighting mode
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Sensor type: Passive infrared
- With DALI interface: no.
- Constant light control: no.
- HVAC control: no.
- Forced switching: no.
- Forced shutdown: no.
- Animal cut: no.
- Low-creep/back-field monitoring: Yes
- Networkable: no.
- Scanning angle 230 °
- Optimum mounting height: 2.5 m.
- Staircase monitoring: Yes
- Override switch: no.
- Max. Range frontal: 8 m.
- Detection area Diameter on floor: 40 m.
- Suitable for wireless transmission: no.
- Remote control: Yes
- With remote control: no.
- Adjustable response sensitivity: Yes
- Adjustable response brightness: Yes
- With signal unit: no.
- Teach function for response brightness: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: Yes
- Dimming function with dimming insert: no.
- Mounting type: Surface-mounted
- Connection type: Screw terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: no.
- Surface: Untreated
- Surface type: Matt
- Antibacterial treatment: no.
- RAL number (similar): 9010
- Transparent: no.
- Voltage type AC/DC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 0 s.
- Switch-on delay: 5 s.
- Swivel range sensor
- horizontal: 0..0 °
- Swivel range sensor
- vertical: 0..0 °
- Max. breaking capacity 36 W
- Suitable for C load: no.
- Number of switching zones: 1
- Max. Inrush current 10 A.
- Control current 0 mA
- Extension input: no.
- Alarm function: no.
- Depth: 135 mm
- Product type
Motion detector
- Detection angle
230°
20 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Operating voltage
24 V
- Switching capacity
36 W
- Voltage (max.)
24 V
- Switching capacity (LED)
36 W
- Twilight settings
5 - 2500 lux
- Time settings
15 s - 30 min
- Factory colour
White
- Similar RAL
9010
IP54
- Operating temperature
-25 °C to +55 °C. °C
- Type
Motion detector
- Length
135 mm
- Width
78 mm
- Height
105 mm
- Dim
(L x W x H) 135 x 78 x 105 mm
- features
Non-stop lighting mode
- Voltage (min.)
12 V
- Depth
135 mm
- Max. temperature
55 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1958347 ESYLUX EM10015649 Surface-mount Motion detector 230 ° White IP54 Non-stop lighting mode
User & Safety Instructions
User & Safety Instructions 1958347 ESYLUX EM10015649 Surface-mount Motion detector 230 ° White IP54 Non-stop lighting mode
Description
Motion detector with 230° detection range and long range. 360° sneak-by protection for a complete coverage, can be switched off via remote control. Programmable via remote control, e.g. Continuous light ON/OFF and automatic reading function of the current light value. A fixed plant program ensures that the plant is ready for immediate operation. Simple programming via remote control with "blue mode" technology. Avoidance of incorrect operation by integrated selection switch for test function/remote control/potentiometer setting. One-hand socket mounting. Double membrane cable entry. Covered connection socket with large wiring compartment. Range adjustment of the sensor with additional Focus-LED as adjustment aid. Retractable adjustment elements prevent unintentional parameter adjustment. Wall or ceiling mounting is possible without accessories, thanks to swivel joint. Hide individual areas by means of the enclosed cap (can be cut to size individually). Special socket for indoor and outdoor mounting as accessories.
