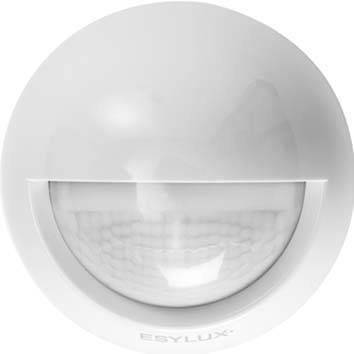

ESYLUX EM10041006 Surface-mount Motion detector 200 ° Relay White IP55 Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: no
- Forced cut-off: no
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 200°
- Optimum mounting height: 2.5 m
- Staircase monitoring: yes
- Bypass switch: no
- Max. The Front Range: 5 m
- Detection field diameter on floor: 20 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: no
- Adjustable threshold: yes
- With Signal Unit: no
- Teach function for the light-intensity threshold: yes
- Suitable for ceiling mounting: no
- Suitable for wall mounting: yes
- Abdimmfunktion with dimming use: no
- Mounting type: wall mounted
- Connection type: screw terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: no
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- RAL-number (similar): 9010
- Transparent: no
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 0 s
- Switch-on delay: 0 s
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 16 A
- Control current 0 mA
- Extension input: no
- Alarm function: no
- Product type
Motion detector
- Detection angle
200°
10 m
- Used at
Fixed
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
2 - 2000 lux
- Time settings
15 s - 16 min
- Factory colour
White
- Similar RAL
9010
IP55
- Operating temperature
-25°C to +55 °C
- Type
Motion detector
- Width
110 mm
- Height
55 mm
- (Ø)
110 mm
- Dim
(Ø x H) 110 mm x 55 mm
- Weight
0.30
- features
Non-stop lighting mode
- Max. temperature
55 °C
- Min. temperature
-25 °C
Movement sensor
FALSE
55 mm
50-50 MHz
110 mm
TRUE
800 A
9010
230-230 V
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958342 ESYLUX EM10041006 Surface-mount Motion detector 200 ° Relay White IP55 Non-stop lighting mode
Description
Motion detector with 200° detection zone in modern design. Color design by caps in the accessories. 16 A high power relay (tungsten-feed contact), particularly suitable for switching capacitive loads, such as Ebs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Hard background program for an immediate readiness for operation. Can be programd via remote control, for example Continuous light ON/OFF and automatic einlesefunktion of the current light value. One-hand base mounting. Compatible with many european sockets (distance between screws 60 mm). Double the membrane cable entry. Cable entry either from the top, bottom or rear. Spacer for surface-mounted cable routing in white. Accompanying plug terminal for through-wiring of the earth. The range adjustment of the sensor with adjustable inner lens cover. Concealed setting elements prevent accidental adjustment of parameters. For the wall mounting. Hide individual sections enclosed by cap (can be cut to size).
This text is machine translated.
