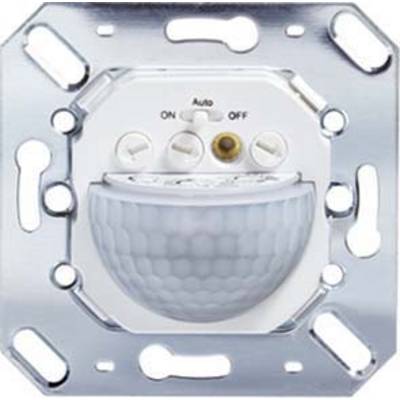

ESYLUX EM10055010 Flush mount Motion detector 180 ° Relay Multicolour IP20 Non-stop lighting mode
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: yes
- Forced shut-off: yes
- Animal - i.e up: yes
- Sneak/field monitoring: yes
- Can be interlinked: no
- Scan angle: 180°
- Optimum mounting height: 1.1 m
- Staircase monitoring: yes
- Bypass switch: yes
- Max. The Front Range: 3 m
- Detection field diameter on floor: 16 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: yes
- Adjustable threshold: yes
- With Signal Unit: yes
- Teach function for the light-intensity threshold: yes
- Suitable for ceiling mounting: no
- Suitable for wall mounting: yes
- Abdimmfunktion with dimming use: no
- Installation type: flush-mounted
- Type of connection: Plug-in terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- Color: Other
- Transparent: yes
- Type of voltage: AC
- Mains frequency: 50/50 Hz.
- Switch-off delay: 0 s
- Switch-on delay: 0 s
- Detection angle horizontal 180°. .180
- Swivel range sensor
- Horizontal: 0., 2.0°
- Swivel range sensor
- Vertical: 0., 2.0°
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 800 A
- Control current 0 mA
- Extension input: yes
- Alarm function: no
- Depth: 70 mm
- Installation width: 61 mm
- Installation depth: 34 mm
- Installation length: 61 mm
- Installation diameter: 61 mm
- Min. The depth of the device box: 34 mm
- Product type
Motion detector
- Detection angle
180°
8 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Twilight settings
5 - 2000 lux
- Time settings
15 s - 30 min
- Factory colour
Multicolour
IP20
- Operating temperature
0 to 50 °C
- Type
Motion detector
- Length
61 mm
- Width
70 mm
- Height
29 mm
- (Ø)
61 mm
- Dim
(Ø x H) 61 mm x 29 mm
- Weight
154.00
- features
Non-stop lighting mode
- Depth
70 mm
- Recess length
61 mm
- Recess width
61 mm
- Recess depth
34 mm
- Recess diameter
61 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
70
Movement sensor
TRUE
55 mm
70 mm
34 mm
50-50 MHz
TRUE
60 mm
800 A
230-230 V
TRUE
FALSE
34
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1958553 ESYLUX EM10055010 Flush mount Motion detector 180 ° Relay Multicolour IP20 Non-stop lighting mode
User & Safety Instructions
User & Safety Instructions 1958553 ESYLUX EM10055010 Flush mount Motion detector 180 ° Relay Multicolour IP20 Non-stop lighting mode
Description
Wall Motion detector with 180° detection range. Built-in acoustic sensor for the optimum use in the confusing and winding rooms with no or low daylight share. 16 A high power relay (tungsten-feed contact), particularly suitable for switching capacitive loads, such as Ebs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Can be programd via remote control, for example Continuous light ON/OFF and automatic einlesefunktion of the current light value. Cover frame IP20 in 5 different colors. Brand switch compatible, thus replaces every conventional switch. Design in IP44 suitable for damp rooms, garages, cellars exits. Vandalism-inhibiting cover with stainless steel screws (accessories). Plug-in terminals in double occupancy for a feed-through wiring allow for quick and easy installation. Manual switching through integrated switch ON/OFF/AUTO is possible. Prevention of unwanted switch, for example by small animals, by hiding the vertical detection range with the help of enclosed cap. Universal surface-mounting frame IP20/IP44 with 3 compartments membrane cable entry. Integrated pulse function for controlling staircase lighting timer or signal devices and application for Building Technology/SPS.
