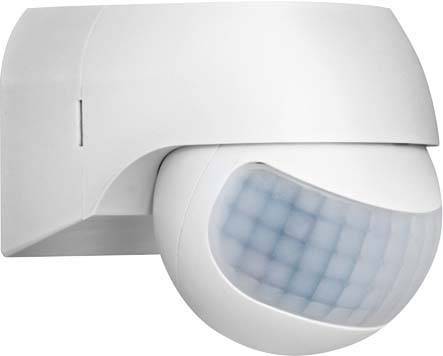

ESYLUX EM10055089 Surface-mount Motion detector 180 ° White IP44
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: no
- Forced cut-off: no
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 180°
- Optimum mounting height: 2.5 m
- Staircase monitoring: no
- Bypass switch: no
- Max. The Front Range: 5 m
- Detection field diameter on floor: 20 m
- Suitable for wireless transmission: no
- Remote control: no
- With remote control: no
- The sensitivity can be set: yes
- Adjustable threshold: yes
- With Signal Unit: no
- Teach function for the light-intensity threshold: no
- Suitable for ceiling mounting: no
- Suitable for wall mounting: yes
- Abdimmfunktion with dimming use: no
- Mounting type: wall mounted
- Connection type: screw terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- Transparent: no
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Min. Switch-on duration: 10 s
- Max. duty cycle 15 min
- Switch-off delay: 0 s
- Switch-on delay: 0 s
- Swivel range sensor
- Horizontal: 30...30°
- Swivel range sensor
- Vertical: 30...30°
- The light-intensity threshold: 5..1000 lx
- Max. circuit breaking capacity 800 W
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 0 A
- Control current 0 mA
- Extension input: no
- Alarm function: no
- Depth: 80 mm
- Product type
Motion detector
- Detection angle
180°
10 m
- Used at
Fixed
- Mounting type
Surface-mount
- Operating voltage
230 V
- Switching capacity
800 W
- Voltage (max.)
230 V
- Standby current consumption
0.5 W
- Twilight settings
5 - 1000 Lux
- Time settings
10s - 15 min
- Factory colour
White
IP44
- Operating temperature
-20°C to +40 °C
- Type
Motion detector
- Width
55 mm
- Height
66 mm
- Dim
(W x H x D) 55 x 66 x 80 mm
- Weight
200.0000 g
- Depth
80 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
55
Movement sensor
TRUE
66 mm
80 mm
50-50 MHz
TRUE
40 A
230-230 V
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958356 ESYLUX EM10055089 Surface-mount Motion detector 180 ° White IP44
Description
Motion detector with 180° detection zone for convenient switching of the lighting. Double the membrane cable entry. Connection socket with plug-in terminal and lateral cable entry. Adjustment of the detection and range by rotating and tilting ball head technology. For the wall mounting.
