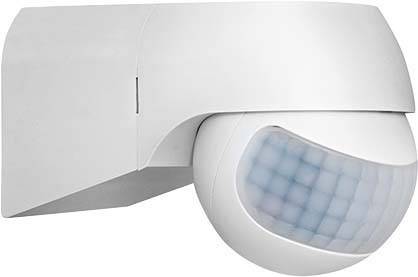

ESYLUX EM10055508 Surface-mount Motion detector 180 ° White IP44
EAN:
Part number:
Item no:
Technical specifications
- Optimum mounting height: 2.5 m
- Max. The Front Range: 5 m
- Detection field diameter on floor: 20 m
- Connection type: screw terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Swivel range sensor
- Horizontal: 30...30°
- Swivel range sensor
- Vertical: 30...30°
- Suitable for C-load: no
- Max. Switch-on current: 0 A
- Control current 0 mA
- Extension input: no
- Alarm function: no
- Depth: 102 mm
- Product type
Motion detector
- Detection angle
180°
10 m
- Used at
Fixed
- Mounting type
Surface-mount
- Operating voltage
230 V
- Switching capacity
800 W
- Voltage (max.)
230 V
- Twilight settings
3 - 1000 lux
- Time settings
10s - 15 min
- Factory colour
White
IP44
- Operating temperature
-20°C to +40 °C
- Type
Motion detector
- Length
102 mm
- Width
55 mm
- Height
66 mm
- (Ø)
20 m
- Dim
(Ø x H) 20 m x 66 mm
- Depth
102 mm
- Max. temperature
40 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955600 ESYLUX EM10055508 Surface-mount Motion detector 180 ° White IP44
Description
Motion detector with 180° detection zone for convenient switching of the lighting. Double the membrane cable entry. Connection socket with plug-in terminal and lateral cable entry. Large wiring space. Adjustment of the detection and range by rotating and tilting ball head technology. For the wall mounting.
