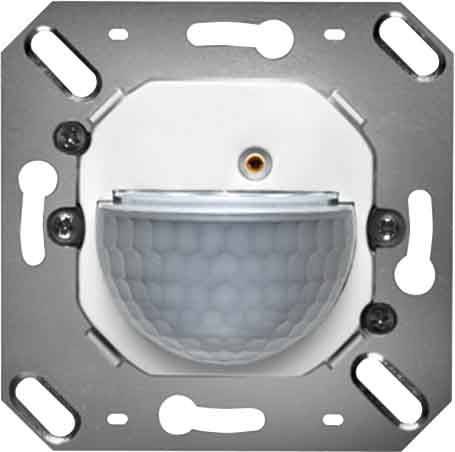

ESYLUX EM10410024 Flush mount Occupancy sensor 180 ° Multicolour IP20
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Sensor type: Passive infrared
- Constant light control: no.
- With DALI interface: no.
- HVAC control: no.
- Constant light control: no.
- Networkable: no.
- HVAC control: no.
- Suitable for wireless transmission: no.
- Forced switching: no.
- Low-creep/back-field monitoring: Yes
- Forced shutdown: no.
- Animal cut: Yes
- Low-creep/back-field monitoring: no.
- Max. Range frontal: 3 m.
- Networkable: no.
- Detection area Diameter on floor: 8 m.
- Scanning angle 180 °
- Adjustable response sensitivity: no.
- Optimum mounting height: 1.1 m.
- Adjustable response brightness: no.
- Staircase monitoring: Yes
- Teach function for response brightness: no.
- Override switch: no.
- Dimming function with dimming insert: no.
- Animal cut: Yes
- Max. Attendance: 25.17 m²
- Staircase monitoring: Yes
- Max. Range frontal: 6 m.
- Material: Plastic
- Detection area Diameter on floor: 16 m.
- Material quality: Other
- Suitable for wireless transmission: no.
- Halogen-free: Yes
- Remote control: no.
- With remote control: no.
- Adjustable response sensitivity: no.
- Min Duty cycle: 0 s.
- Adjustable response brightness: no.
- Max. duty cycle 0 min
- With signal unit: Yes
- Teach function for response brightness: no.
- Suitable for ceiling mounting: no.
- Color: Other
- Suitable for wall mounting: Yes
- Dimming function with dimming insert: no.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface: Untreated
- Surface type: Matt
- Antibacterial treatment: no.
- Color: Other
- Transparent: Yes
- Voltage type: AC
- Min Duty cycle: 0 s.
- Max. duty cycle 0 min
- Switch-off delay: 0 s.
- Switch-on delay: 0 s.
- Swivel range sensor
- horizontal: 0..0 °
- Swivel range sensor
- vertical: 0..0 °
- Suitable for C load: no.
- Number of switching zones: 0
- Extension input: no.
- Alarm function: no.
- Depth: 70 mm
- Installation width 61 mm
- Mounting depth: 34 mm
- Installation length 61 mm
- Installation diameter 61 mm
- Min Depth of the device socket: 34 mm
- Product type
Occupancy sensor
- Detection angle
180°
8 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Voltage (max.)
230 V
- Factory colour
Multicolour
IP20
- Operating temperature
0 to +50 °C
- Type
Presence detector
- Length
61 mm
- Width
70 mm
- Height
29 mm
- (Ø)
61 mm
- Dim
(Ø x H) 61 mm x 29 mm
- Weight
120.00
- Depth
70 mm
- Recess length
61 mm
- Recess width
61 mm
- Recess depth
34 mm
- Recess diameter
61 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
70
Presence detector
TRUE
55 mm
70 mm
34 mm
50-50 MHz
TRUE
60 mm
230-230 V
TRUE
FALSE
34
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966425 ESYLUX EM10410024 Flush mount Occupancy sensor 180 ° Multicolour IP20
Description
Slave" detector for extending the detection range of a "master" detector with 180° detection range for wall mounting. Range of up to 16 m for a cost-effective system extension with up to 6 additional extensions. All parameters are set on the "master" detector, the "slave" detector detects movements and passes them on to the "master". Cover frame IP 20 in 5 different colors. Brand switch compatible, thus replaces any conventional switch. Design in IP 44, suitable for damp rooms, garages, cellar exits. Anti-vandalism cover with stainless steel screws (accessories). Prevention of unintentional switching, e.g. by small animals, by hiding the vertical detection area using the enclosed cover cap. Universal surface-mounted socket IP 20/IP 44 with 3facher membrane cable entry. The "slave" detector can be connected to the following detectors: PD 180i/R, MD 180i/R.
