ESYLUX EO10850684 EO10850684 LED ceiling light LED (monochrome) 80 W White
EAN:
Part number:
Item no:
Highlights & Details
ESYLUX ESYLUX LED ceiling lamp SVENJACL #EO10850684
- Power= 80 W
- Total luminous flux= 9400 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Suitable for the number of bulbs: 2
- Version: Other
- Material of housing: Aluminium
- Surface protection housing: Untreated
- Housing color: White
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI-2 dimming: Yes
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct/indirect
- Highest energy efficiency class of the exchangeable bulb: D.
- Rated life L70/B50 at 25 °C: 96000 h
- Rated life L80/B10 at 25 °C: 58000 h
- Rated life L90/B10 at 25 °C: 26000 h
- Light current decline at medium. Service life 35,000 h at 25 °C surrounding temperature: 2 %
- Light current decline at medium. Service life 50,000 h at 25 °C surrounding temperature: 2 %
- Light current decline at medium. Service life 75,000 h at 25 °C surrounding temperature: 2 %
- Protection class (IP) IP20
- Impact strength: IK08
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Rated ambient temperature according to IEC62722-2-1: 0..45°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Max. System power 80 W
- Light output 117 lm/W
- Rated light current according to IEC 62722-2-1: 9400 lm
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Power factor 0.95
- Height/depth 87 mm
- Outer diameter: 900 mm
- Number of pins: 5
- Conductor cross-section: 2.5 mm²
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 19
- Adjustable color temperature: No.
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Dim

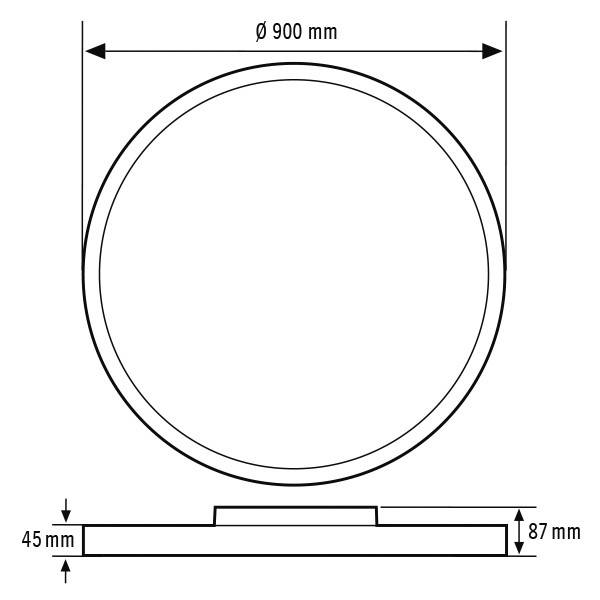

(Ø x H) 900 mm x 87.00 mm
- Type
Circular
- Operating voltage
230 V
- No. of bulbs
2
- Product type
LED ceiling light
- Bulb type
LED (monochrome)
- Height
87.00 mm
- Depth
87 mm
80 W
- (Ø)
900 mm
- Light features
Dimmable
- Protection class
I
IP20
- Factory colour
White
- Material
Aluminium
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
3000 K
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Total luminous flux
9400 lm
- Rated luminous flux
9400 lm
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159243 ESYLUX EO10850684 EO10850684 LED ceiling light LED (monochrome) 80 W White
Description
Round, flat LED attachment lamp with powder-coated aluminum housing. Opal diffuser with microprismatic structure made of impact resistant polycarbonate. Colour temperature 3000 K or 4000 K. For intelligent lighting solutions with constant light control depending on presence and daylight via DALI or DALI 2 presence detectors. SwitchDIM-function for dimming individual lights by 230V button (all models except SVENJA CL 900 830/840). Optional accessories: Displacing with shortest rope-hanging set (2 m) or pipe-hanging set (1 m). Ideal for applications with high requirements for light quality and glare in accordance with EN 12464-1. Especially suitable for use in common areas such as foyers, lounges, break areas, lounges and canteens. The indirect light ratio of 35% makes the lamps optically float at the ceiling and rooms have a larger effect. Homogeneous, glare-free illumination and long LED-life through extensive backlight arrangement of the LED and tuned lenses. Easy to mount thanks to two-piece design with snap-lock system and electrical connector.
