ESYLUX EP10055539 Flush mount Ceiling-mount motion detector Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Design: Motion detector
- Sensor type: Passive infrared
- With DALI interface: No.
- Constant light control: No.
- HVAC activation: No.
- Forced activation: Yes
- Forced shutdown: Yes
- Animal slope: No.
- Low-level detection/back field monitoring: Yes
- Network-compatible: No.
- Scan angle 360°
- Optimum mounting height 3 m.
- By-pass switch: Yes
- Max. Range to one side: 4 m.
- Max. Range: Front 3 m
- Capturing field Diameter on floor: 8 m.
- Suitable for wireless transmission: No.
- Remote control: Yes
- With remote control: No.
- Response sensitivity adjustable: Yes
- Response brightness adjustable: Yes
- With signal unit: Yes
- Teach-Function for Response Brightness: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: No.
- Dimming function with dimming element: No.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Design of surface: Matt
- Antibacterial treatment: No.
- Colour: white
- RAL number (similar): 9010
- Transparent: Yes
- Protection class (IP) IP20
- Voltage type AC
- Frequency: 50 Hz
- Nominal voltage: 230 V
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Switch-off delay 0 s.
- Switch-on delay 30 s.
- Horizontal coverage angle: 180..360°
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Response brightness 5 - .2000 Lux
- Max. switching capacity 2300 W
- Max. Switching capacity LED 600 W
- Suitable for C-Load: Yes
- Temperature: -25..50°C
- Number of switching zones: 1
- Max. Power surge 800 A
- Alarm function: No.

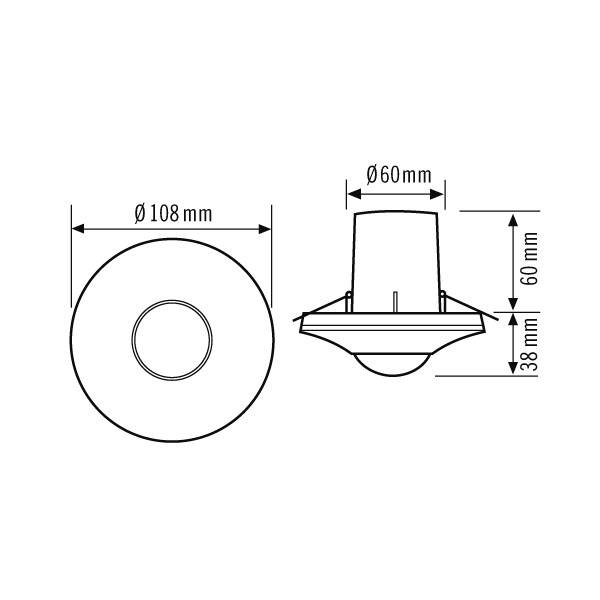

- Height: 98 mm
- Diameter 108 mm
- Installation depth: 90 mm
- Installation diameter 68 mm
- Compatible with Apple HomeKit: No.
- Min Depth of the device socket 90 mm
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Ceiling-mount motion detector
8 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Switching capacity (LED)
600 W
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Motion detector
- Height
98.00 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 98.00 mm
- Material (details)
Plastic
- Nominal voltage
230 V
- Recess diameter
68 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162955 ESYLUX EP10055539 Flush mount Ceiling-mount motion detector Relay White IP20
Description
Motion detector with 360° detection range for ceiling installation. Range of up to 8 m in diameter with a recommended mounting height of 3 m (maximum mounting height 5 m) for use in small rooms and passage areas with no or low daylight share. 16 A high power relay (tungsten feed contact), specially suitable for switching capacitive loads, such as EVGs, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Permanently stored factory program for immediate operation. Automatic light control for applications with or without a very low proportion of daylight. Easy remote programming with "
blue mode"
Technology or by adjusting elements. Integrated switch for setting via remote control or via adjustable controller - prevention of misuse and as tamper protection. Suppression of interference sources by reduction of sensitivity by DIP switches. Additional button input with switching function "
Room = ON + OFF/corridor = ON"
. Cover plate and design ring can be easily changed/painted (silver available as accessory). Extension of the detection range by parallel connection of max. 8 detectors. Targeted suppression of areas using enclosed lens mask.
This text is machine translated.
