ESYLUX EP10055560 Flush mount Ceiling-mount motion detector Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Design: Motion detector
- Sensor type: Passive infrared
- With DALI interface: No.
- Constant light control: No.
- HVAC activation: No.
- Forced activation: Yes
- Forced shutdown: Yes
- Animal slope: No.
- Low-level detection/back field monitoring: Yes
- Network-compatible: No.
- Scan angle 360°
- Optimum mounting height 3 m.
- By-pass switch: Yes
- Max. Range to one side: 12 m.
- Max. Range: Front 5.5 m
- Capturing field Diameter on floor: 24 m.
- Suitable for wireless transmission: No.
- Remote control: Yes
- With remote control: No.
- Response sensitivity adjustable: Yes
- Response brightness adjustable: Yes
- With signal unit: Yes
- Teach-Function for Response Brightness: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: No.
- Dimming function with dimming element: No.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Design of surface: Matt
- Antibacterial treatment: No.
- Colour: white
- RAL number (similar): 9010
- Transparent: Yes
- Protection class (IP) IP20
- Voltage type AC
- Frequency: 50 Hz
- Nominal voltage: 230 V
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Switch-off delay 0 s.
- Switch-on delay 30 s.
- Horizontal coverage angle: 180..360°
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Response brightness 5 - .2000 Lux
- Max. switching capacity 2300 W
- Max. Switching capacity LED 600 W
- Suitable for C-Load: Yes
- Temperature: -25..50°C
- Number of switching zones: 1
- Max. Power surge 800 A
- Alarm function: No.

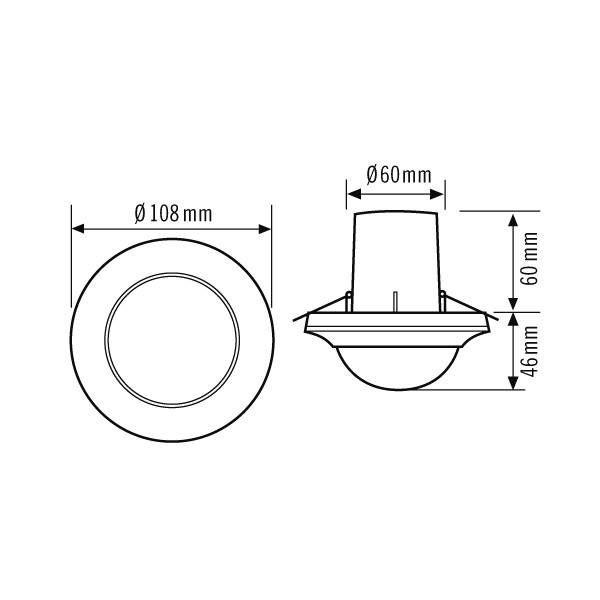

- Height: 106 mm
- Diameter 108 mm
- Installation depth: 90 mm
- Installation diameter 68 mm
- Compatible with Apple HomeKit: No.
- Min Depth of the device socket 90 mm
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Ceiling-mount motion detector
24 m
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V AC
- Switching capacity (LED)
600 W
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Motion detector
- Height
106.00 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 106.00 mm
- Material (details)
Plastic
- Nominal voltage
230 V
- Recess diameter
68 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162958 ESYLUX EP10055560 Flush mount Ceiling-mount motion detector Relay White IP20
Description
Motion detector with 360° detection range for ceiling installation. Long range of up to 24 m in diameter at a recommended installation height of 3 m for various applications. 16 A high power relay (tungsten feed contact), specially suitable for switching capacitive loads, such as EVGs, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Ideal for installation at high altitudes of up to 10 m, such as sports halls, warehouses etc. Automatic light control for applications with or without a very low proportion of daylight. Easy remote programming with "
blue mode"
Technology or by control element (poti). Integrated switch for setting via remote control or via adjustable controller - prevention of misuse and as tamper protection. Permanently stored factory program for immediate operation. Suppression of interference sources by reduction of sensitivity by DIP switches. Additional button input with switching function "
Room = ON + OFF/corridor = ON"
. Cover plate and design ring can be easily changed/painted (in the color "
silver"
Available as accessories). Large wiring space thanks to low installation depth of the Power box. Quick and easy connection via plug-in terminals. Extension of the detection range by parallel connection of max. 8 detectors. Targeted suppression of areas using enclosed lens mask.
This text is machine translated.
