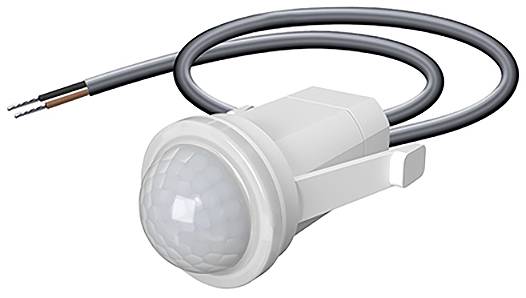

Image similar
Image similar
ESYLUX EP10422836 Ceiling Occupancy sensor
EAN:
Part number:
Item no:
Technical specifications
- Height: 66 mm
- Design: Presence detectors
- Mounting type: Other
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Transparent: Yes
- Design of surface: Matt
- Diameter 33 mm
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: Yes
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- With connection cable: No.
- Material quality: Thermoplastic
- RAL number (similar): 9010
- Response brightness adjustable: Yes
- Optimum mounting height 3 m.
- Max. Range to one side: 3.8 m.
- Max. Range: Front 2.5 m
- Capturing field Diameter on floor: 8 m.
- Angle of coverage vertical 52..104°
- Horizontal coverage angle: 180..360°
- Operating mode switch: No.
- Staircase monitoring: No.
- Low-level detection/back field monitoring: No.
- Teach-Function for Response Brightness: Yes
- Animal slope: No.
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- Bus power supply: No.
- DALI-2 certified: Yes
- Product type
Occupancy sensor
8 m
- Mounting type
Ceiling
- Similar RAL
9010
- Height
66 mm
- (Ø)
33 mm
- Dim
(Ø x H) 33 mm x 66 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549995 ESYLUX EP10422836 Ceiling Occupancy sensor
Description
DALI-2 certified 360° BMS Ceiling Detector. Range up to 8 m in diameter with recommended mounting height of 3 m. Very small design for installation in lamellae ceilings with suitable bracket (accessories). Input device with integrated PIR and light sensor for DALI-2 commands in accordance with IEC 62386-303/304. For decentralized light control in combination with APC presence detectors with integrated control unit. Alternatively, easy integration with third-party building management systems. DALI-2 interoperability standard.
