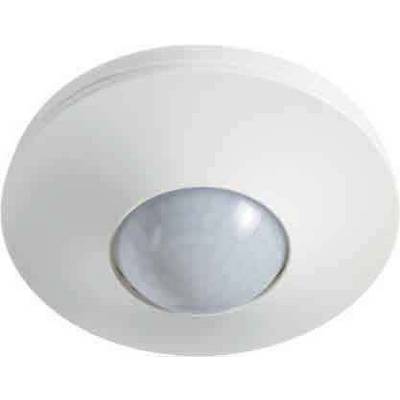

ESYLUX EP10425875 Flush mount Ceiling-mount motion detector 360 ° Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infrared
- With DALI interface: no.
- Constant light control: no.
- HVAC control: no.
- Forced switching: Yes
- Forced shutdown: Yes
- Animal cut: no.
- Low-creep/back-field monitoring: no.
- Networkable: no.
- Scanning angle 360 °
- Optimum mounting height: 3 m.
- Staircase monitoring: Yes
- Override switch: Yes
- Max. Range frontal: 2 m.
- Detection area Diameter on floor: 8 m.
- Suitable for wireless transmission: no.
- Remote control: Yes
- With remote control: no.
- Adjustable response sensitivity: Yes
- Adjustable response brightness: Yes
- With signal unit: Yes
- Teach function for response brightness: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Dimming function with dimming insert: no.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface: Untreated
- Surface type: Matt
- Antibacterial treatment: no.
- RAL number (similar): 9010
- Transparent: Yes
- Voltage type: AC
- Mains frequency: 50/60 Hz.
- Switch-off delay 30 s
- Switch-on delay: 0 s.
- Detection angle horizontal: 180..360 °
- Suitable for C load: no.
- Number of switching zones: 1
- Max. Inrush current 800 A.
- Control current 0 mA
- Extension input: Yes
- Alarm function: no.
- Mounting depth: 24 mm
- Installation diameter 60 mm
- Min Depth of the device socket: 24 mm
- Product type
Ceiling-mount motion detector
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Twilight settings
5 - 2000 lux
- Time settings
60 s - 30 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 °C to +50 °C
- Type
Motion detector
- Width
108 mm
- Height
38 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 38 mm
- Recess depth
24 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
Movement sensor
TRUE
62 mm
24 mm
50-50 MHz
108 mm
FALSE
60 mm
800 A
9010
230-230 V
TRUE
FALSE
24
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966423 ESYLUX EP10425875 Flush mount Ceiling-mount motion detector 360 ° Relay White IP20
Description
Motion detector with 360° detection range for ceiling mounting. Range of up to 8 m in diameter at a recommended installation height of 3 m (maximum installation height 5 m). 16 A high-power relay (tungsten-feed contact), especially suitable for switching capacitive loads such as EVGs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Integrated acoustic sensor for the optimum use in confusing and angled rooms with no or small part of daylight. Fixed plant program for immediate operational readiness. Automatic light control for applications with or without very low daylight. Simple programming via remote control with "blue mode" technology or via adjustment elements. Integrated change-over switch for setting via remote control or via adjustment control - prevention of misuse and as sabotage protection. Suppression of interference sources by reducing the sensitivity via DIP switch. Additional button input with switching function "Room = ON + OFF/corridor = ON". Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Extension of the detection range through parallel connection of max. 8 detectors. Targeted suppression of areas by means of lens mask provided.
