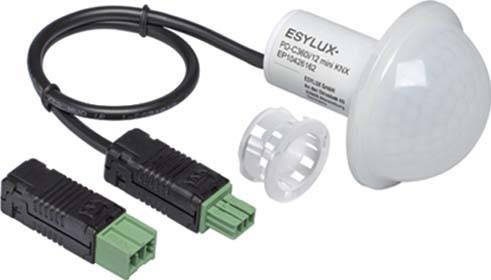

ESYLUX EP10426162 Flush mount Ceiling-mount occupancy sensor 360 ° Multicolour IP55
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: Yes
- KNX radio bus system: no.
- Bus system Radio bus: no.
- Bus system LON: no.
- Bus system Powernet: no.
- Other bus systems: None
- Bidirectional radio: no.
- Mounting type: Flush-mounted
- Material: Plastic
- Material quality: Thermoplastic
- Surface: Untreated
- Surface type: Matt
- Color: Other
- RAL number (similar): 9010
- Transparent: no.
- With bus connection: Yes
- Extension input: no.
- Low-creep/back-field monitoring: no.
- Mode selector: no.
- Animal cut: no.
- Staircase monitoring: no.
- Adjustable response brightness: Yes
- Teach function for response brightness: Yes
- Switch-off delay self-learning: no.
- Optimum mounting height: 3 m.
- Max. Range frontal: 3 m.
- Detection area diameter on floor: 12 m.
- Detection angle vertical: 0..180 °
- Detection angle horizontal: 180..360 °
- Number of channels: 4
- Number of binary inputs: 0
- Switching capacity 0 W
- Min Depth of device socket: 45 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
6 m
- Used at
Indoors
- Mounting type
Flush mount
- Voltage (max.)
31 V
- Twilight settings
5 - 2000 lx
- Time settings
30 s - 720 min
- Factory colour
Multicolour
- Similar RAL
9010
IP55
- Type
Presence detector
- Weight
0
- Voltage (min.)
29 V
Presence detector
70 mm
45 mm
58 mm
FALSE
25 mm
TRUE
FALSE
FALSE
TRUE
FALSE
9010
TRUE
FALSE
45
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958343 ESYLUX EP10426162 Flush mount Ceiling-mount occupancy sensor 360 ° Multicolour IP55
Description
KNX mini-presence detector with 360° detection range for ceiling mounting. Range of up to 12 m in diameter with a recommended mounting height of 3 m. Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Manual, temporary switching/dimming via user remote control. Communication objects, constant light control or switching, heating, ventilation and air conditioning (HVAC), blocking object for heating, ventilation and air conditioning (HVAC), light output (2 bytes), status message, presence output (heating/ventilation climate) HVAC, can be used as "Master" or "Slave", KNX button control for light channels, full or semi-automatic, orientation light 2 light values selectable 10% - 50%, test mode, correction factor. Targeted suppression of areas using enclosed lens mask.
