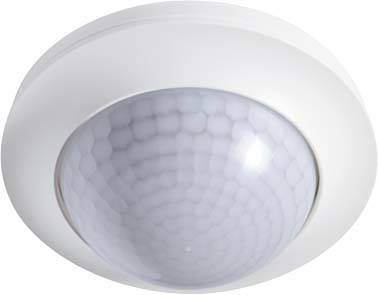

ESYLUX EP10426803 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infrared
- With DALI interface: no.
- Constant light control: no.
- HVAC control: Yes
- Forced switching: no.
- Forced shutdown: no.
- Animal cut: no.
- Low-creep/back-field monitoring: Yes
- Networkable: no.
- Scanning angle 360 °
- Optimum mounting height: 3 m.
- Staircase monitoring: Yes
- Override switch: no.
- Max. Presence area: 50.33 m²
- Max. Range frontal: 5 m.
- Detection area Diameter on floor: 24 m.
- Suitable for wireless transmission: no.
- Remote control: Yes
- With remote control: no.
- Adjustable response sensitivity: no.
- Adjustable response brightness: Yes
- With signal unit: no.
- Teach function for response brightness: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Dimming function with dimming insert: no.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface: Untreated
- Surface type: Matt
- Antibacterial treatment: no.
- RAL number (similar): 9010
- Transparent: no.
- Switch-off delay 30 s
- Switch-on delay: 300 s.
- Detection angle horizontal: 180..360 °
- Swivel range sensor
- horizontal: 0..0 °
- Swivel range sensor
- vertical: 0..0 °
- Suitable for C load: no.
- Number of switching zones: 1
- Max. Inrush current 800 A.
- Control current 0 mA
- Extension input: Yes
- Alarm function: no.
- Installation depth: 41 mm
- Installation diameter 60 mm
- Min Depth of device socket: 41 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
5 - 2000 lux
- Time settings
60 s - 15 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 °C to +50 °C
- Type
Presence detector
- Width
108 mm
- Height
46 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 46 mm
- Weight
0.33
- Recess depth
41 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
Presence detector
TRUE
70 mm
41 mm
50-50 MHz
108 mm
FALSE
60 mm
800 A
9010
230-230 V
FALSE
FALSE
41
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956993 ESYLUX EP10426803 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
Description
Presence detector with 360° detection range for ceiling mounting flush-mounted. Range of up to 24 m in diameter at a recommended installation height of 3 m and for independant control of 2 lighting zones (window area and interior) depending on presence and daylight. Additional switch contact (channel 3) HVAC for switching another light source or for controlling heating/ventilation/air conditioning depending on presence. Both light channels as well as HVAC contact with 16 A high-power relay (tungsten-feed contact), especially suitable for switching capacitive loads such as EVGs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Optimally suitable for installation at high altitudes up to 10 m, such as sports halls, warehouses, etc. Fixed plant program for immediate operational readiness. Simple programming via remote control with "blue mode" technology or via adjustment elements. Integrated change-over switch for setting via remote control or via adjustment control - prevention of misuse and as sabotage protection. Suppression of interference sources by reducing the sensitivity via DIP switch. Additional button input per channel with switching function "Room = ON + OFF/corridor = ON". Detector can be used as full or semi-automatic. Standard design as flush-mounted device. Extension of the detection range by connecting slave devices. Targeted suppression of areas by means of lens mask provided.
