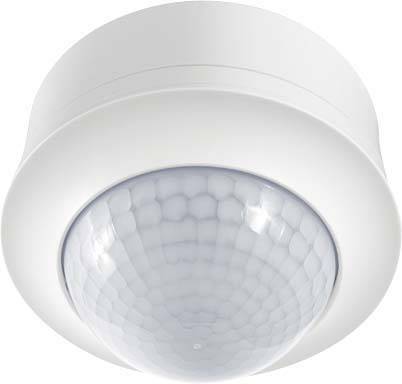

ESYLUX EP10426810 Surface-mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infraredWith DALI interface: No.Constant light control: No.HVAC activation: YesForced switching: No.Forced shutdown: No.Animal slope: No.Low-level detection/back field monitoring: YesNetwork-compatible: No.Scan angle 360°Optimum mounting height 3 m.Staircase monitoring: YesBridge switch: No.Max. Presence area: 50.33 m²Max. Range: Front 5 mCapturing field Diameter on floor: 24 m.Suitable for wireless transmission: No.Remote control: YesWith remote control: No.Response sensitivity adjustable: No.Response brightness adjustable: YesWith signal unit: No.Teach-Function for Response Brightness: YesSuitable for ceiling mounting: YesSuitable for wall mounting: No.Dimming function with dimming element: No.Mounting type: Surface-mountedConnection type: Plug-in terminalMaterial: PlasticMaterial quality: ThermoplasticHalogen-free: YesSurface: UntreatedDesign of surface: MattAntibacterial treatment: No.RAL number (similar): 9010Transparent: No.Voltage type ACMains frequency: 50/60 Hz.Min Switch-on time 60 secondsMax. duty cycle 15 minSwitch-off delay 30 s.Switch-on delay 300 s.Horizontal coverage angle: 180..360°Pivoting range sensorhorizontal: 0..0°Pivoting range sensorvertical: 0..0 °Response brightness 5 - .2000 LuxMax. switching capacity 2300 WSuitable for C-Load: No.Number of switching zones: 1Max. Power surge 800 AControl current 0 mAExtension input: YesAlarm function: No.
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
5 - 2000 lux
- Time settings
60 s – 15 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 °C to +50 °C
- Type
Presence detectors
- Length
108 mm
- Width
108 mm
- Height
74 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 74 mm
- Weight
0.34
- Max. temperature
50 °C
- Min. temperature
-25 °C
Presence detector
TRUE
74 mm
50-50 MHz
108 mm
FALSE
800 A
9010
230-230 V
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958350 ESYLUX EP10426810 Surface-mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
Description
Occupancy sensor with 360° detection range for ceiling mounting Range of up to 24 m in diameter at a recommended mounting height of 3 m and for an independent control of 2 lighting zones (window area and interior) depending upon presence and daylight. Additional switch contact (channel 3) HVAC for switching another light source or for controlling heating/ventilation/air conditioning depending on presence. Both light channels as well as HVAC contact with 16 A high power relay (tungsten feed contact), specially suitable for switching capacitive loads, for example B. EVGs, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Optimally suitable for the installation at large heights of up to 10 m, such as sports halls, warehouses etc. Permanently stored factory program for immediate operation. Simple programming via remote control with "blue mode" technology or via settings elements. Integrated switch for setting via remote control or using adjustable controller - to avoid incorrect operation and as tamper protection. Suppression of interference sources by reduction of sensitivity by DIP switches. Additional button input per channel with switching function "room = ON + OFF/corridor = ON". Detector can be used as a full or semi-automatic system. Standard design as surface-mounted device. Extension of the detection range by connection of slave devices. Targeted suppression of areas using enclosed lens mask.
