ESYLUX EP10426865 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Design: Presence detectors
- Sensor type: Passive infrared
- With DALI interface: No.
- Constant light control: No.
- HVAC activation: No.
- Forced activation: Yes
- Forced shutdown: Yes
- Animal slope: No.
- Low-level detection/back field monitoring: Yes
- Network-compatible: No.
- Scan angle 360°
- Optimum mounting height 3 m.
- By-pass switch: Yes
- Max. Range to one side: 12 m.
- Max. Presence area: 50.33 m²
- Max. Range: Front 5.5 m
- Capturing field Diameter on floor: 24 m.
- Suitable for wireless transmission: No.
- Remote control: Yes
- With remote control: No.
- Response sensitivity adjustable: Yes
- Response brightness adjustable: Yes
- With signal unit: Yes
- Teach-Function for Response Brightness: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: No.
- Dimming function with dimming element: No.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Design of surface: Matt
- Antibacterial treatment: No.
- Colour: white
- RAL number (similar): 9010
- Transparent: Yes
- Protection class (IP) IP20
- Voltage type AC
- Frequency: 50 Hz
- Nominal voltage: 230 V
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Switch-off delay 300 s.
- Switch-on delay 30 s.
- Horizontal coverage angle: 180..360°
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Response brightness 5 - .2000 Lux
- Max. switching capacity 2300 W
- Max. Switching capacity LED 600 W
- Suitable for C-Load: Yes
- Temperature: -25..50°C
- Number of switching zones: 1
- Max. Power surge 800 A
- Alarm function: No.

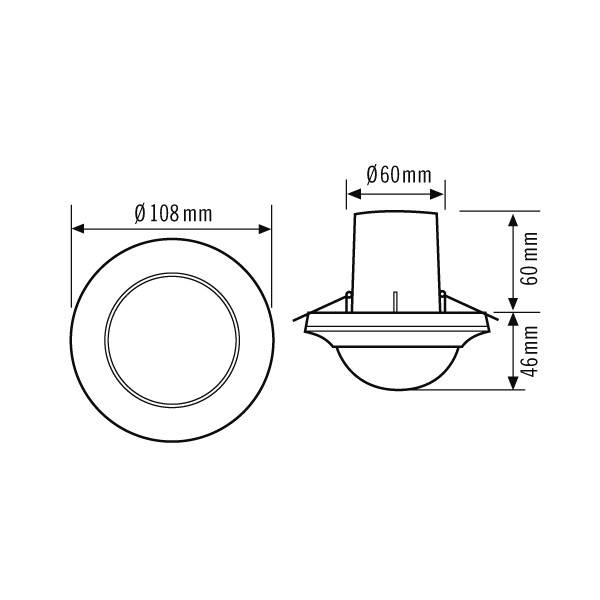

- Height: 106 mm
- Diameter 108 mm
- Installation depth: 90 mm
- Installation diameter 68 mm
- Compatible with Apple HomeKit: No.
- Min Depth of the device socket 90 mm
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
24 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Switching capacity (LED)
600 W
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Occupancy Sensors
- Height
106.00 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 106.00 mm
- Material (details)
Plastic
- Nominal voltage
230 V
- Recess diameter
68 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159199 ESYLUX EP10426865 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
Description
Occupancy sensor with 360° detection range for ceiling mounting Range of up to 24 m in diameter with a recommended mounting height of 3 m for use in offices, classrooms, conference rooms, etc. and through areas with natural light content. Ideal for installation at high altitudes of up to 10 m, such as sports halls, warehouses etc. 16 A high power relay (tungsten feed contact), specially suitable for switching capacitive loads, such as EVGs, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Permanently stored factory program for immediate operation. Automatic light control (channel 1) depending upon presence and daylight. Easy remote programming with "
blue mode"
Technology or by control element (poti). Integrated switch for setting via remote control or via adjustable controller - prevention of misuse and as tamper protection. Suppression of interference sources by reduction of sensitivity by DIP switches. Additional button input with switching function "
Room = ON + OFF/corridor = ON"
. Detector can be used as a full or semi-automatic system (channel 1). Cover plate and design ring can be easily changed/painted (in the color "
silver"
Available as accessories). Extension of the detection range by connection of slave devices. Targeted suppression of areas using enclosed lens mask.
