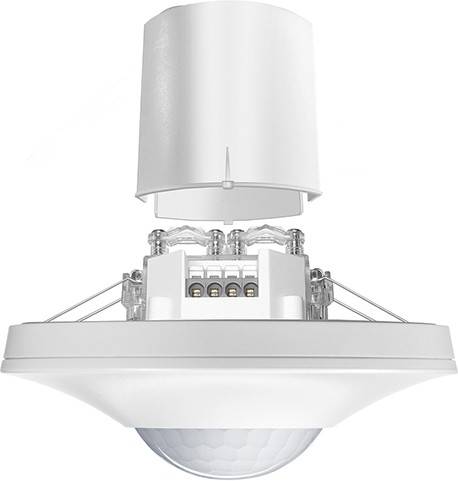

ESYLUX EP10426971 Flush mount Ceiling-mount occupancy sensor White IP20
EAN:
Part number:
Item no:
Technical specifications
- Design: Presence detectors
- Sensor type: Passive infrared
- With DALI interface: No.
- Constant light control: No.
- HVAC activation: No.
- Forced switching: No.
- Forced shutdown: No.
- Animal slope: No.
- Low-level detection/back field monitoring: Yes
- Network-compatible: No.
- Scan angle 360°
- Optimum mounting height 3 m.
- Bridge switch: No.
- Max. Range to one side: 4 m.
- Max. Presence area: 12.58 m²
- Max. Range: Front 3 m
- Capturing field Diameter on floor: 8 m.
- Suitable for wireless transmission: No.
- Remote control: No.
- With remote control: No.
- Response sensitivity adjustable: No.
- Response brightness adjustable: No.
- With signal unit: Yes
- Teach-Function for Response Brightness: No.
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: No.
- Dimming function with dimming element: No.
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Design of surface: Matt
- Antibacterial treatment: No.
- Colour: white
- RAL number (similar): 9010
- Transparent: Yes
- Protection class (IP) IP20
- Voltage type AC
- Frequency: 50 Hz
- Nominal voltage: 230 V
- Horizontal coverage angle: 180..360°
- Panning range of sensor, horizontal: 0°
- Swivel range of sensor, vertical: 0 °
- Suitable for C-Load: No.
- Temperature: -25..50°C
- Alarm function: No.
- Height: 98 mm
- Diameter 108 mm
- Installation depth: 90 mm
- Installation diameter 68 mm
- Compatible with Apple HomeKit: No.
- Min Depth of the device socket 90 mm
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Ceiling-mount occupancy sensor
4 m
- Mounting type
Flush mount
- Operating voltage
230 V
- Voltage (max.)
230 V
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Occupancy Sensors
- Height
98.00 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 98.00 mm
- Material (details)
Plastic
- Nominal voltage
230 V
- Recess diameter
68 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159177 ESYLUX EP10426971 Flush mount Ceiling-mount occupancy sensor White IP20
Description
Slave"
Presence detectors to expand the detection range of a "
Master"
-Presence detector with a 360° detection range for ceiling mounting. Range of up to 8 m in diameter for an economical system extension with up to 10 additional extensions. Switching of the LED via DIP switch is possible Suppression of interference sources by reduction of sensitivity by DIP switches. Cover plate and design ring can be easily changed/painted (in the color "
silver"
Available as accessories). Targeted suppression of areas using enclosed lens mask. Connection of the "
Slave"
Detectors can be connected to the following presence detectors: PD-C360i/8. PD-C360i/8plus, PD-C360i/24plus, PD-C360i/8 Dimplus, PD-C360i/24 Dimplus, PD-C360i/24 DUOplus, PD-C360i / 24 DRY, PD-C360i / 8 Dali, PD-C360i / 24 Dali.
This text is machine translated.
Presence detectors to expand the detection range of a "
Master"
-Presence detector with a 360° detection range for ceiling mounting. Range of up to 8 m in diameter for an economical system extension with up to 10 additional extensions. Switching of the LED via DIP switch is possible Suppression of interference sources by reduction of sensitivity by DIP switches. Cover plate and design ring can be easily changed/painted (in the color "
silver"
Available as accessories). Targeted suppression of areas using enclosed lens mask. Connection of the "
Slave"
Detectors can be connected to the following presence detectors: PD-C360i/8. PD-C360i/8plus, PD-C360i/24plus, PD-C360i/8 Dimplus, PD-C360i/24 Dimplus, PD-C360i/24 DUOplus, PD-C360i / 24 DRY, PD-C360i / 8 Dali, PD-C360i / 24 Dali.
