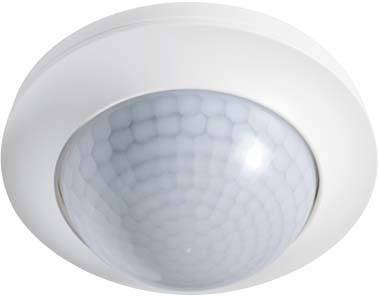

ESYLUX EP10427329 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infrared
- With DALI interface: no.
- Constant light control: Yes
- HVAC control: no.
- Forced switching: Yes
- Forced shutdown: Yes
- Animal cut: no.
- Low-creep/back-field monitoring: no.
- Networkable: no.
- Scanning angle 360 °
- Optimum mounting height: 3 m.
- Staircase monitoring: Yes
- Override switch: no.
- Max. Presence area: 50.33 m²
- Max. Range frontal: 5 m.
- Detection area Diameter on floor: 24 m.
- Suitable for wireless transmission: no.
- Remote control: Yes
- With remote control: no.
- Adjustable response sensitivity: Yes
- Adjustable response brightness: Yes
- With signal unit: Yes
- Teach function for response brightness: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Dimming function with dimming insert: Yes
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface: Untreated
- Surface type: Matt
- Antibacterial treatment: no.
- RAL number (similar): 9010
- Transparent: no.
- Switch-off delay 30 s
- Switch-on delay: 300 s.
- Detection angle horizontal: 180..360 °
- Max. breaking capacity 72 W
- Suitable for C load: no.
- Number of switching zones: 1
- Max. Inrush current 2 A.
- Control current 0 mA
- Extension input: Yes
- Alarm function: no.
- Mounting depth: 24 mm
- Installation diameter 60 mm
- Min Depth of the device socket: 24 mm
- Factory colour
White
- Similar RAL
9010
- (Ø)
108 mm
- Height
46 mm
IP20
- Type
Presence detector
- Recess depth
24 mm
- Mounting type
Flush mount
- Detection angle
360°
- Recess diameter
60 mm
12 m
- Operating voltage
36 V
- Voltage (max.)
36 V
- Voltage (min.)
12 V
- Used at
Indoors
- Operating temperature
-25 °C to +50 °C
- Time settings
1 s - 60 min
- Twilight settings
5 - 2000 lux
- Max. temperature
50 °C
- Min. temperature
-25 °C
- Switching capacity
72 W
- Weight
0.18
Presence detector
TRUE
70 mm
24 mm
108 mm
FALSE
60 mm
9010
12-36 V
FALSE
FALSE
24
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956989 ESYLUX EP10427329 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
Presence detector with 360° detection range for ceiling mounting. Range of up to 24 m in diameter for use in conjunction with building automation systems. Operating voltage 12-36 V DC or AC voltage. Potential-free software-controlled switching output (NC/NO). Detection display can be switched on and off. Noiseless switching up to max. 2 A. Additional button input for individual manual switching of the lighting. Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Targeted suppression of areas by means of lens mask provided. A fixed plant program ensures that the plant is ready for immediate operation.
