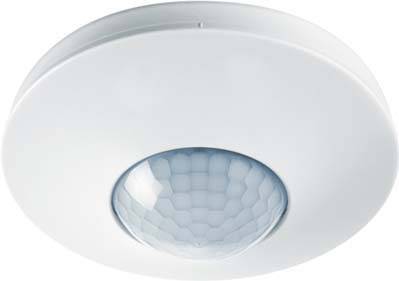

ESYLUX EP10427404 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: Yes
- KNX radio bus system: no.
- Bus system Radio bus: no.
- Bus system LON: no.
- Bus system Powernet: no.
- Other bus systems: None
- Bidirectional radio: no.
- Mounting type: Flush-mounted
- Material: Plastic
- Material quality: Thermoplastic
- Surface: Untreated
- Surface type: Matt
- RAL number (similar): 9010
- Transparent: no.
- With bus connection: Yes
- Extension input: no.
- Low-creep/back-field monitoring: no.
- Mode selector: no.
- Animal cut: no.
- Staircase monitoring: no.
- Adjustable response brightness: Yes
- Teach function for response brightness: Yes
- Switch-off delay self-learning: no.
- Optimum mounting height: 3 m.
- Max. Range frontal: 3 m.
- Detection area Diameter on floor: 8 m.
- Detection angle vertical: 0..180 °
- Detection angle horizontal: 180..360 °
- Number of channels: 4
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Voltage (max.)
31 V
- Twilight settings
5 - 2000 lx
- Time settings
30 s - 720 min
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Presence detector
- Weight
0
- Voltage (min.)
29 V
Presence detector
62 mm
24 mm
108 mm
FALSE
60 mm
TRUE
FALSE
FALSE
TRUE
FALSE
9010
FALSE
FALSE
24
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956975 ESYLUX EP10427404 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
KNX ceiling-mounted occupancy detector with 360° detection range. Range of up to 8 m in diameter with a recommended mounting height of 3 m (maximum mounting height 5 m). Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Manual, temporary switching/dimming via user remote control. Communication objects. - Constant light control or switching. - Heating, ventilation and air conditioning (HVAC). - Locking object for heating, ventilation and air conditioning (HVAC). - Light value output (2 bytes). - Status message. - Presence output (HVAC) HVAC. - Can be used as "Master" or "Slave". - KNX button control for light channels. - Full or semi-automatic. - Orientation light 2 light values can be selected 10 % - 50 %. - Test mode. - Correction factor for room light. - Sensitivity of sensor adjustable from 1 to 4. Standard design as flush-mounted device Wall-mounted or Ceiling mounting possible with accessories. Cover plate and design ring can be easily changed/painted (available in the color "silver" as an accessory). Targeted suppression of areas using enclosed lens mask.
