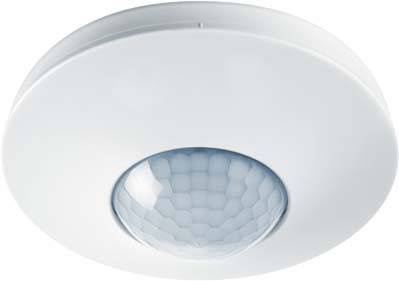

ESYLUX EP10427442 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: no
- Bus-KNX radio: no
- Funkbus bus system: no
- LON bus system: no
- Powernet bus system: no
- Other bus systems: without
- Bi-directional radio: no
- Installation type: flush-mounted
- Material: plastic
- Material: thermoplastic
- Untreated surface:
- Design of the surface: mat
- RAL-number (similar): 9010
- Transparent: no
- With bus coupling: yes
- Extension input: yes
- Sneak/field monitoring: no
- Mode switch: yes
- Animal - i.e up: no
- Staircase monitoring: no
- Adjustable threshold: yes
- Teach function for the light-intensity threshold: yes
- Switch-off delay is self-learning: no
- Optimum mounting height: 3m
- Max. The Front Range: 3 m
- Detection field diameter on floor: 8 m
- Detection angle, vertical: 0..180°
- Detection angle horizontal 180°. .360
- Number of Channels: 4
- The number of binary inputs: 0
- Power rating: 0 W
- Min. Switch-on duration: 60 s
- Max. duty cycle 240 min
- Min. The depth of the device box: 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Twilight settings
5 - 1000 lx
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Presence detector
- Weight
0
Presence detector
62 mm
24 mm
108 mm
FALSE
60 mm
FALSE
FALSE
FALSE
TRUE
FALSE
9010
FALSE
FALSE
24
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963744 ESYLUX EP10427442 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
Presence detector with 360° detection range for ceiling mounting. Range of up to 8 m in diameter at a recommended installation height of 3 m. Automatic light control of DALI or DSI EVGs to a constant brightness level depending on presence and daylight (with DALI/DSI output). Fixed plant program for immediate operational readiness. Simple programming via remote control with "blue mode" technology or via adjustment elements. Integrated change-over switch for setting via remote control or via adjustment control - prevention of misuse and as sabotage protection. Additional button input per channel. Detector can be used as full or semi-automatic. Reduction of the light output after expiration of the delay time as orientation light for corridors and passage ranges, adjustable between 10-50% . Integrated switch-off pre-warning. Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Extension of the detection range by connecting slave devices. Targeted suppression of areas by means of lens mask provided.
