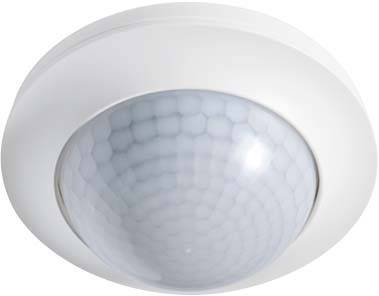

ESYLUX EP10427459 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: no.
- KNX radio bus system: no.
- Bus system Radio bus: no.
- Bus system LON: no.
- Bus system Powernet: no.
- Other bus systems: None
- Bidirectional radio: no.
- Mounting type: Flush-mounted
- Material: Plastic
- Material quality: Thermoplastic
- Surface: Untreated
- Surface type: Matt
- RAL number (similar): 9010
- Transparent: no.
- With bus connection: Yes
- Extension input: Yes
- Low-creep/back-field monitoring: no.
- Mode selector: Yes
- Animal cut: no.
- Staircase monitoring: no.
- Adjustable response brightness: Yes
- Teach function for response brightness: Yes
- Switch-off delay self-learning: no.
- Optimum mounting height: 3 m.
- Max. Range frontal: 5 m.
- Detection area Diameter on floor: 24 m.
- Detection angle vertical: 0..180 °
- Detection angle horizontal: 180..360 °
- Number of channels: 4
- Number of binary inputs: 0
- Switching capacity 0 W
- Min Depth of the device socket: 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Twilight settings
5 - 1000 lx
- Time settings
60 s - 240 min
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Presence detector
- Height
70 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 70 mm
- Weight
0
Presence detector
70 mm
24 mm
108 mm
FALSE
60 mm
FALSE
FALSE
FALSE
TRUE
FALSE
9010
FALSE
FALSE
24
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965101 ESYLUX EP10427459 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
Presence detector with 360° detection range for ceiling mounting. Range of up to 24 m in diameter at a recommended installation height of 3 m. Automatic light control of DALI or DSI EVGs to a constant brightness level depending on presence and daylight (with DALI/DSI output). Fixed plant program for immediate operational readiness. Simple programming via remote control with "blue mode" technology or via adjustment elements. Integrated switch for setting via remote control or via adjustment control - avoidance of misuse and as sabotage protection. Additional button input per channel. Detector can be used as full or semi-automatic. Reduction of the light output after expiration of the delay time as orientation light for corridors and passage ranges, adjustable between 10-50%. Integrated switch-off pre-warning. Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Extension of the detection range by connecting slave devices. Targeted suppression of areas by means of lens mask provided.
