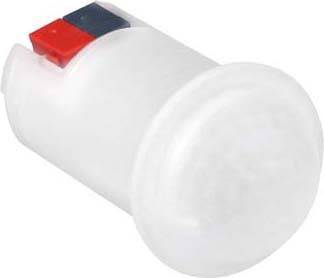

ESYLUX EP10427510 Flush mount Ceiling-mount occupancy sensor 360 ° Multi-coloured IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: no
- Bus-KNX radio: no
- Funkbus bus system: no
- LON bus system: no
- Powernet bus system: no
- Other bus systems: without
- Bi-directional radio: no
- Installation type: flush-mounted
- Material: plastic
- Material: thermoplastic
- Untreated surface:
- Design of the surface: mat
- Color: Other
- RAL-number (similar): 9010
- Transparent: no
- With bus coupling: yes
- Extension input: no
- Sneak/field monitoring: no
- Mode switch: no
- Animal - i.e up: no
- Staircase monitoring: no
- Adjustable threshold: yes
- Teach function for the light-intensity threshold: yes
- Switch-off delay is self-learning: no
- Optimum mounting height: 3m
- Max. The Front Range: 2 m
- Detection field diameter on floor: 8 m
- Detection angle, vertical: 0..180°
- Detection angle horizontal 180°. .360
- Number of Channels: 1
- The number of binary inputs: 0
- Switch output 2300 W
- Min. Switch-on duration: 1 s
- Max. duty cycle 60 min
- Min. The depth of the device box: 45 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
12 V
- Switching capacity
2300 W
- Twilight settings
10 - 2000 lx
- Factory colour
Multi-coloured
- Similar RAL
9010
IP20
- Type
Presence detector
Presence detector
60 mm
45 mm
33 mm
FALSE
25 mm
FALSE
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
45
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958353 ESYLUX EP10427510 Flush mount Ceiling-mount occupancy sensor 360 ° Multi-coloured IP20
Description
Presence detector with 360° detection zone for the ceiling mounting. Range of up to 8 m in diameter at a recommended mounting height of 3 m. Flat Lens with only 3 mm mounting height. Automatic lighting control of DALI ECGS on a constant brightness level, depending on the presence and daylight (with DALI output). Hard background program for an immediate readiness for operation. Easy programming via the remote control. Sensor can be used as full or semi-automatic machine can be used. Reduction of the light output after the delay time as an orientation light for corridors and transit areas. Integrated switch-off pre-warning. Standard version as a ceiling-mounted device. Can be combined with DALI testers. Hvac and potential free contact possible in combination with DALI switch from ESYLUX.
