ESYLUX EP10427534 Flush mount Ceiling-mount occupancy sensor 360 ° Black
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: Yes
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Wireless bidirectional: No
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Material quality: Thermoplastic
- Surface protection: Untreated
- Design of surface: Matt
- Colour, black
- RAL number (similar): 9005
- Transparent: No.
- With bus connection: Yes
- Low-level detection/back field monitoring: No.
- Operating mode switch: No.
- Animal slope: No.
- Response brightness adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Switch-off delay, self-learning: No.
- DALI-2 certified: No.
- Optimum mounting height 3 m.
- Max. Range to one side: 4 m.
- Max. Range: Front 3 m
- Capturing field Diameter on floor: 8 m.
- Angle of coverage vertical 53..106°
- Horizontal coverage angle: 180..360°
- Number of channels: 3
- Min Switch-on time 30 seconds
- Max. duty cycle 720 min

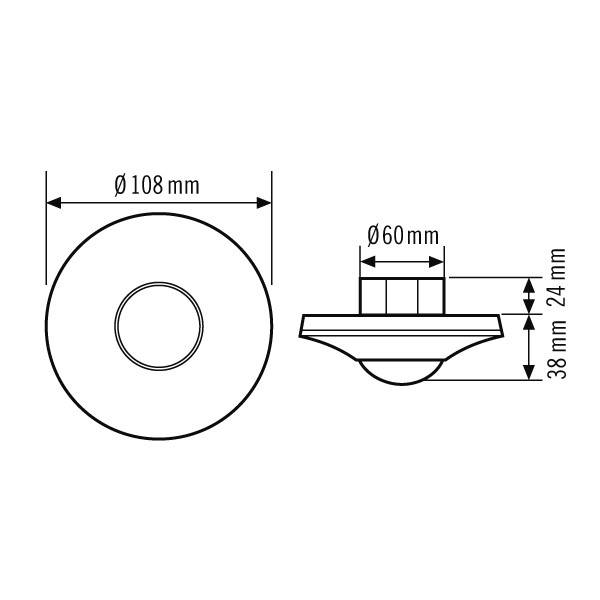

- Min Depth of the device socket 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
8 m
- Mounting type
Flush mount
- Factory colour
Black
- Similar RAL
9005
- Type
Occupancy Sensors
- Material (details)
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159192 ESYLUX EP10427534 Flush mount Ceiling-mount occupancy sensor 360 ° Black
Description
KNX ceiling-mounted occupancy detector with 360° detection range. Range of up to 8 m in diameter with a recommended mounting height of 3 m (maximum mounting height 5 m). Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Manual, temporary switching/dimming via user remote control. Communication objects (complete list of communication objects on www.esylux.com). - Constant light control or switching. - Heating, ventilation and air conditioning (HVAC). - Locking object for heating, ventilation and air conditioning (HVAC). - Light value output (2 bytes). - Status message. - Presence output (HVAC) HVAC. - Can be used as "
Master"
or "
Slave"
. - KNX button control for light channels. - Full or semi-automatic. - Orientation light 2 light values can be selected 10 % - 50 %. - Test mode. - Correction factor for room light. - Sensitivity of sensor adjustable from 1 to 4. Standard design as flush-mounted device Surface or ceiling mounting with accessories possible. Cover plate and design ring can be easily changed/painted (in the color "
silver"
Available as accessories). Targeted suppression of areas using enclosed lens mask.
