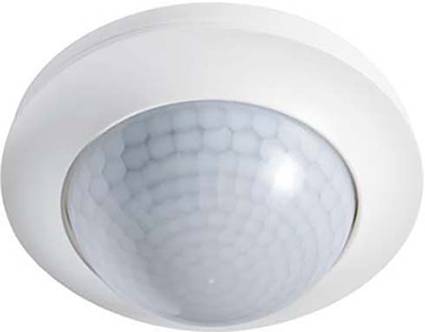

ESYLUX EP10427763 Flush mount Occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Dimming function with dimming insert: no.
- Connection type: Plug-in terminal
- Adjustable response sensitivity: Yes
- Adjustable response brightness: Yes
- Number of switching zones: 2
- Surface type: Matt
- Switch-off delay: 300 s.
- Installation diameter 60 mm
- Mounting depth: 24 mm
- Switch-on delay: 30 s.
- Detection area diameter on floor: 32 m.
- Remote control: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Halogen-free: Yes
- HVAC control: Yes
- Constant light control: no.
- Max. Inrush current 800 A.
- Max. Area: 50 m²
- Max. Range frontal: 5 m.
- Min Depth of the device socket: 24 mm
- With DALI interface: no.
- With signal unit: Yes
- Extension input: Yes
- Surface: Untreated
- Optimum mounting height: 3 m.
- Scanning angle 360 °
- Sensor type: Passive infrared
- Teach function for response brightness: Yes
- Transparent: Yes
- Staircase monitoring: Yes
- Override switch: Yes
- Material: Plastic
- Material quality: Thermoplastic
- Forced shutdown: Yes
- Forced switching: Yes
- Product type
Occupancy sensor
- Detection angle
360°
16 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity
2300 W
- Twilight settings
5 - 2000 lx
- Time settings
30 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 - +50 °C
- Height
70 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296634 ESYLUX EP10427763 Flush mount Occupancy sensor 360 ° Relay White IP20
Description
Presence detector with 360° detection range for ceiling mounting. Range of up to 32 m in diameter at a recommended installation height of 3 m for use in offices, classrooms, conference rooms, etc. and through areas with daylight content. Optimally suitable for installation at high altitudes up to 10 m, such as sports halls, warehouses etc. 16 A high-power relay (tungsten-feed contact), especially suitable for switching capacitive loads such as EVGs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Fixed plant program for immediate operational readiness. Automatic light control (channel 1) depending on presence and daylight. Additional potential-free switching contact (channel 2) HVAC for control of heating/ventilation/air conditioning depending on presence. Simple programming via remote control with blue mode technology or via adjustment elements (potentiometer). Integrated switch for setting via remote control or via adjustment control - avoidance of misuse and as sabotage protection. Suppression of interference sources by reducing the sensitivity via DIP switch. Additional button input with switchover function room = ON + OFF/corridor = ON. Detector can be used as full or semi-automatic (channel 1). Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Extension of the detection range by connecting slave devices. Targeted suppression of areas by means of lens mask provided.
