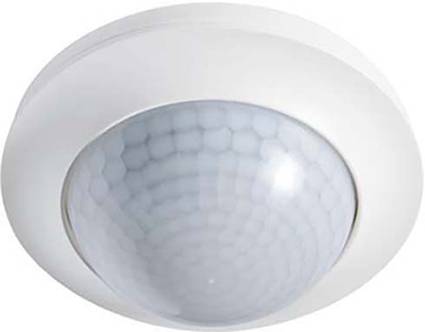

ESYLUX EP10427770 Flush mount Occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- Dimming function with dimming insert: no.
- Connection type: Plug-in terminal
- Adjustable response sensitivity: Yes
- Adjustable response brightness: no.
- Surface type: Matt
- Switch-off delay: 300 s.
- Installation diameter 60 mm
- Mounting depth: 24 mm
- Switch-on delay: 30 s.
- Detection area diameter on floor: 32 m.
- Remote control: no.
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Halogen-free: Yes
- HVAC control: no.
- Constant light control: no.
- Max. Inrush current 800 A.
- Max. Area: 50 m²
- Max. Range frontal: 5 m.
- Min Depth of the device socket: 24 mm
- With DALI interface: no.
- With signal unit: Yes
- Extension input: no.
- Surface: Untreated
- Optimum mounting height: 3 m.
- Scanning angle 360 °
- Sensor type: Passive infrared
- Teach function for response brightness: Yes
- Transparent: Yes
- Staircase monitoring: no.
- Override switch: Yes
- Material: Plastic
- Material quality: Thermoplastic
- Forced shutdown: Yes
- Forced switching: Yes
- Product type
Occupancy sensor
- Detection angle
360°
16 m
- Used at
Fixed
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Time settings
30 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 - +50 °C
- Height
70 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294678 ESYLUX EP10427770 Flush mount Occupancy sensor 360 ° White IP20
Description
Slave presence detector for extending the detection range of a master presence detector with 360° detection range for ceiling mounting. Range of up to 32 m in diameter for a cost-effective system extension with up to 10 additional extensions. Optimally suitable for installation at high altitudes of up to 10 m, such as sports halls, warehouses, etc. Switch-off of the LED possible via DIP switch. Suppression of interference sources by reducing the sensitivity via DIP switch. Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Targeted suppression of areas by means of lens mask provided. The slave detector can be connected to the following presence detectors: PD-C360i/8, PD-C360i/8plus, PD-C360i/24plus, PD-C360i/8 DIMplus, PD-C360i/24 DIMplus, PD-C360i/24 DUOplus, PD-C360i/24 DRY, PD-C360i/8 Dali, PD-C360i/24 Dali.
