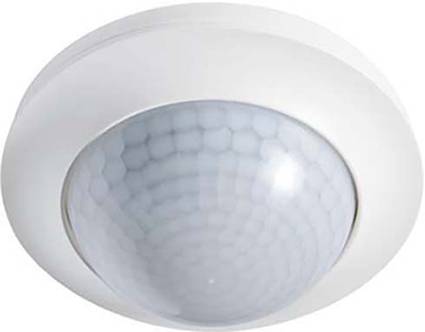

Image similar
Image similar
ESYLUX EP10427787 Flush mount Occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- Dimming function with dimming insert: Yes
- Connection type: Plug-in terminal
- Adjustable response sensitivity: Yes
- Adjustable response brightness: Yes
- Number of switching zones: 2
- Surface type: Matt
- Switch-off delay: 300 s.
- Installation diameter 60 mm
- Mounting depth: 24 mm
- Switch-on delay: 30 s.
- Detection area diameter on floor: 32 m.
- Remote control: Yes
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Halogen-free: Yes
- HVAC control: Yes
- Constant light control: Yes
- Max. Inrush current 800 A.
- Max. Area: 50 m²
- Max. Range frontal: 5 m.
- Min Depth of the device socket: 24 mm
- With DALI interface: Yes
- With signal unit: Yes
- Extension input: Yes
- Surface: Untreated
- Optimum mounting height: 3 m.
- Scanning angle 360 °
- Sensor type: Passive infrared
- Teach function for response brightness: Yes
- Transparent: Yes
- Staircase monitoring: no.
- Override switch: no.
- Material: Plastic
- Material quality: Thermoplastic
- Forced shutdown: Yes
- Forced switching: Yes
- Product type
Occupancy sensor
- Detection angle
360°
16 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Twilight settings
5 - 2000 lx
- Time settings
30 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 - +50 °C
- Height
70 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297146 ESYLUX EP10427787 Flush mount Occupancy sensor 360 ° White IP20
Description
Presence detector with 360° detection range for ceiling mounting. Range of up to 32 m in diameter at a recommended installation height of 3 m. Automatic light control of DALI or DSI EVGs to a constant brightness level depending on presence and daylight (with DALI/DSI output). Fixed plant program for immediate operational readiness. Simple programming via remote control with blue mode technology or via adjustment elements. Integrated switch for setting via remote control or via adjustment control - prevention of misuse and as sabotage protection. Additional button input per channel. Detector can be used as full or semi-automatic. Reduction of the light output after expiration of the delay time as orientation light for corridors and passage ranges, adjustable between 10-50%. Integrated switch-off pre-warning. Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Extension of the detection range by connecting slave devices. Targeted suppression of areas by means of lens mask provided.
