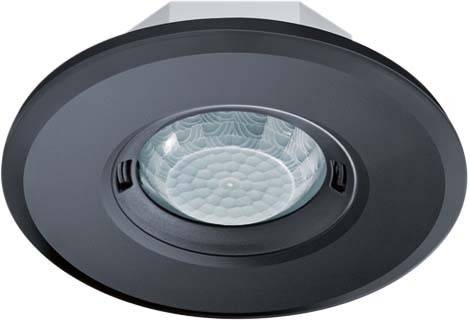

ESYLUX EP10427954 Flush mount Motion detector 360 ° Black IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: yes
- Forced shut-off: yes
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 360°
- Optimum mounting height: 2.5 m
- Staircase monitoring: yes
- Bypass switch: no
- Max. Presence Range: 12,58 m²
- Max. The Front Range: 3 m
- Detection field diameter on floor: 8 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: yes
- Adjustable threshold: yes
- With Signal Unit: yes
- Teach function for the light-intensity threshold: no
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- Abdimmfunktion with dimming use: no
- Installation type: flush-mounted
- Type of connection: Plug-in terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: no
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- RAL-number (similar): 9004
- Transparent: no
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Switch-off delay: 30 s
- Delay: 300 s
- Detection angle horizontal 180°. .360
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Inrush Current: 78A
- Control current 0 mA
- Extension input: yes
- Alarm function: no
- Installation depth 24 mm
- Installation diameter: 60 mm
- Min. The depth of the device box: 24 mm
- Product type
Motion detector
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Switching capacity
2300 W
- Voltage (max.)
230 V
- Twilight settings
5 - 2000 lux
- Time settings
5 s - 30 h min
- Factory colour
Black
- Similar RAL
9004
IP20
- Operating temperature
0 to 50 °C
- Type
Presence detector
- Length
24 mm
- Width
60 mm
- Height
6 mm
- (Ø)
94 mm
- Dim
(Ø x H) 94 mm x 6 mm
- Recess depth
24 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
0 °C
Presence detector
FALSE
30 mm
24 mm
50-50 MHz
94 mm
FALSE
60 mm
78 A
9004
230-230 V
FALSE
FALSE
24
FALSE
FALSE
FALSE
TRUE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966435 ESYLUX EP10427954 Flush mount Motion detector 360 ° Black IP20
Description
Design presence detector, range approx. 8 m in diameter. 1 channel, Switch, with zero-voltage switching optimized for LED-lights. Master/Slave (parallel circuit). Surface finish with design covers made of plastic: round, black-and-variable can be changed (alternatively: Glass, square, white). In-wall and ceiling mounted. Input.
