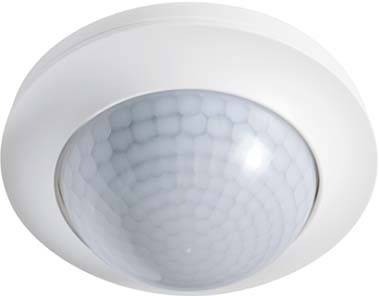

ESYLUX EP10428067 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: passive infrared
- With DALI interface: no
- Constant light control: no
- The HVAC control: no
- Forced activation: yes
- Forced shut-off: yes
- Animal - i.e up: no
- Sneak/field monitoring: no
- Can be interlinked: no
- Scan angle: 360°
- Optimum mounting height: 3m
- Staircase monitoring: yes
- Bypass switch: yes
- Max. Presence Range: 50,33 m²
- Max. The Front Range: 5 m
- Detection field diameter on floor: 24 m
- Suitable for wireless transmission: no
- Remote control: yes
- With remote control: no
- The sensitivity can be set: yes
- Adjustable threshold: yes
- With Signal Unit: yes
- Teach function for the light-intensity threshold: yes
- Suitable for ceiling mounting: yes
- Suitable for wall mounting: no
- Abdimmfunktion with dimming use: no
- Installation type: flush-mounted
- Type of connection: Plug-in terminal
- Material: plastic
- Material: thermoplastic
- Halogen-free: yes
- Untreated surface:
- Design of the surface: mat
- Antibacterial treatment: no
- RAL-number (similar): 9010
- Transparent: yes
- Type of voltage: AC
- Mains frequency: 50/60 Hz.
- Min. Switch-on duration: 60 s
- Max. duty cycle 30 min
- Switch-off delay: 30 s
- Delay: 300 s
- Detection angle horizontal 180°. .360
- Suitable for C-load: no
- Number of switching zones: 1
- Max. Switch-on current: 800 A
- Control current 0 mA
- Extension input: yes
- Alarm function: no
- Installation depth 24 mm
- Installation diameter: 60 mm
- Min. The depth of the device box: 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
12 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2300 W
- Twilight settings
5 - 2000 lux
- Time settings
60 s - 30 min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 °C to +50 °C
- Type
Presence detector
- Height
46 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 46 mm
- Weight
194.00
- Recess depth
24 mm
- Recess diameter
60 mm
- Max. temperature
50 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966418 ESYLUX EP10428067 Flush mount Ceiling-mount occupancy sensor 360 ° Relay White IP20
Description
Presence detector with 360° detection range for ceiling mounting. Range of up to 24 m in diameter at a recommended installation height of 3 m for use in offices, classrooms, conference rooms, etc. and through areas with daylight content. Optimally suitable for installation at high altitudes up to 10 m, such as sports halls, warehouses, etc. 16 A high-power relay (tungsten-feed contact), especially suitable for switching capacitive loads such as EVGs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Fixed plant program for immediate operational readiness. Automatic light control (channel 1) depending on presence and daylight. Simple programming via remote control with "blue mode" technology or via adjustment elements (potentiometer). Integrated switch for setting via remote control or via adjustment control - avoidance of misuse and as sabotage protection. Suppression of interference sources by reducing the sensitivity via DIP switch. Additional button input with switching function "Room = ON + OFF/corridor = ON". Detector can be used as full or semi-automatic (channel 1). Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Cover and design ring can be easily changed/painted (available in silver as an accessory). Extension of the detection range by connecting slave devices. Targeted suppression of areas by means of lens mask provided.
