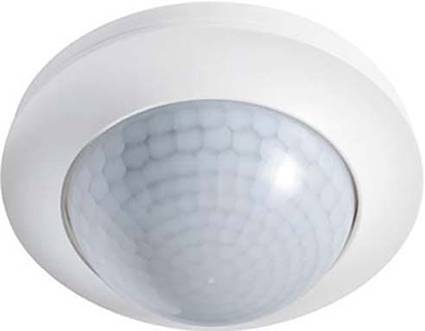

ESYLUX EP10428180 Flush mount Occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- Dimming function with dimming insert: no.
- Connection type: Plug-in terminal
- Adjustable response sensitivity: Yes
- Adjustable response brightness: no.
- Number of switching zones: 1
- Surface type: Matt
- Installation diameter 60 mm
- Mounting depth: 24 mm
- Switch-on delay: 30 s.
- Detection area Diameter on floor: 40 m.
- Remote control: Yes
- Frequency: 50 Hz
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Halogen-free: Yes
- HVAC control: no.
- Constant light control: no.
- Max. Inrush current 800 A.
- Max. Area: 50 m²
- Max. Range frontal: 10 m.
- Min Depth of the device socket: 24 mm
- With DALI interface: no.
- With signal unit: Yes
- Extension input: Yes
- Surface: Untreated
- Optimum mounting height: 3 m.
- Scanning angle 360 °
- Swivel range sensor, horizontal: 0 ° - 180 °
- Sensor type: Passive infrared
- Teach function for response brightness: Yes
- Transparent: Yes
- Staircase monitoring: Yes
- Material: Plastic
- Material quality: Thermoplastic
- Product type
Occupancy sensor
- Detection angle
360°
20 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Switching capacity
2300 W
- Twilight settings
5 - 2000 lx
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
-25 - +50 °C
- Height
70 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 70 mm
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297635 ESYLUX EP10428180 Flush mount Occupancy sensor 360 ° White IP20
Description
Presence detector with 360° detection range for ceiling mounting. Long range of up to 40 m in corridors or aisles in diameter at a recommended mounting height of 3 m for a wide range of applications. 16 A high-power relay (tungsten-feed contact), especially suitable for switching capacitive loads such as EVGs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps. Automatic light control depending on presence and daylight. Simple programming via remote control with blue mode technology or via adjustment elements (potentiometer). Integrated switch for setting via remote control or via adjustment control - avoidance of misuse and as sabotage protection. Fixed plant program for immediate operational readiness. Suppression of interference sources by reducing the sensitivity via DIP switch. Button input with switchover function room = ON + OFF/corridor = ON. Standard design as flush-mounted device. Surface or ceiling mounting with accessories. Large wiring space thanks to low installation depth of the Powerbox. Quick and easy connection through plug-in terminals. Extension of the detection range through parallel connection of max. 8 detectors. Targeted suppression of areas by means of lens mask provided.
This text is machine translated.
