ESYLUX EP10428432 Flush mount Ceiling-mount occupancy sensor Black
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: No.
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Wireless bidirectional: No
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Material quality: Thermoplastic
- Surface protection: Untreated
- Design of surface: Matt
- Colour, black
- RAL number (similar): 9005
- Transparent: No.
- With bus connection: Yes
- Low-level detection/back field monitoring: No.
- Operating mode switch: Yes
- Animal slope: No.
- Response brightness adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Switch-off delay, self-learning: No.
- DALI-2 certified: Yes
- Optimum mounting height 3 m.
- Max. Range to one side: 12 m.
- Max. Range: Front 5.5 m
- Capturing field Diameter on floor: 24 m.
- Angle of coverage vertical 76..152°
- Horizontal coverage angle: 180..360°

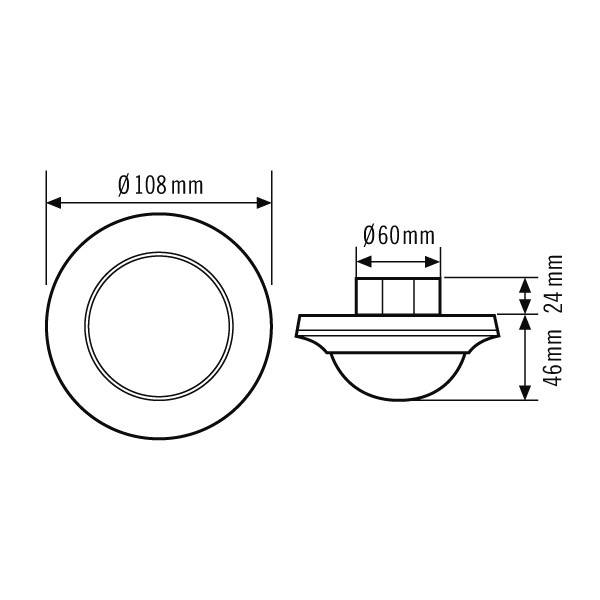

- Min Depth of the device socket 24 mm
- Product type
Ceiling-mount occupancy sensor
12 m
- Mounting type
Flush mount
- Factory colour
Black
- Similar RAL
9005
- Type
Occupancy Sensors
- Material (details)
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159196 ESYLUX EP10428432 Flush mount Ceiling-mount occupancy sensor Black
Description
DALI-2 certified ceiling presence detector as input device for DALI-2 lighting systems. Cross-room light management in combination with APC presence detectors. As an alternative, it can be integrated into third-party building management systems with DALI-2 interface. Integrated PIR sensor for DALI-2 commands according to IEC 62386-303 and light sensor for commands according to IEC 62386-304. Pushbutton input for connecting conventional buttons (push-buttons and switch commands are output as DALI-2 commands in accordance with IEC 62386-301 or -302). Surface or ceiling mounting with accessories.
