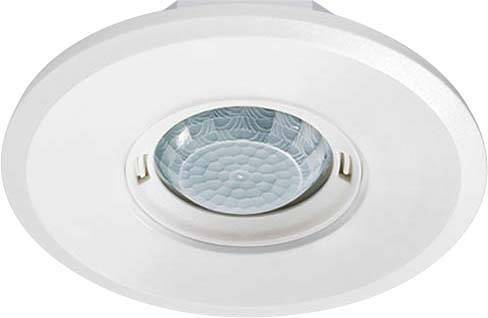

ESYLUX EP10428685 Flush mount Occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- Sensor type: Passive infrared
- With DALI interface: no.
- Constant light control: Yes
- HVAC control: no.
- Forced switching: Yes
- Forced shutdown: Yes
- Animal cut: no.
- Low-creep/back-field monitoring: no.
- Networkable: no.
- Scanning angle 360 °
- Optimum mounting height: 3 m.
- Staircase monitoring: no.
- Override switch: no.
- Max. Attendance: 12.58 m²
- Max. Range frontal: 3 m.
- Detection area Diameter on floor: 8 m.
- Suitable for wireless transmission: no.
- Remote control: Yes
- With remote control: no.
- Adjustable response sensitivity: Yes
- Adjustable response brightness: Yes
- With signal unit: Yes
- Teach function for response brightness: no.
- Suitable for ceiling mounting: Yes
- Suitable for wall mounting: no.
- Dimming function with dimming insert: Yes
- Mounting type: Flush-mounted
- Connection type: Plug-in terminal
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: no.
- Surface: Untreated
- Surface type: Matt
- Antibacterial treatment: no.
- RAL number (similar): 9010
- Transparent: no.
- Voltage type: DC
- Mains frequency: 50/60 Hz.
- Switch-off delay 30 s
- Switch-on delay: 300 s.
- Detection angle horizontal: 180..360 °
- Swivel range sensor
- horizontal: 0..0 °
- Swivel range sensor
- vertical: 0..0 °
- Suitable for C load: no.
- Number of switching zones: 1
- Max. Inrush current 0 A.
- Control current 0 mA
- Extension input: no.
- Alarm function: no.
- Mounting depth: 24 mm
- Installation diameter 68 mm
- Min Depth of the device socket: 24 mm
- Product type
Occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Operating voltage
31 V
- Switching capacity
2300 W
- Twilight settings
3 - 1000 lux
- Time settings
5 s - 30 h min
- Factory colour
White
- Similar RAL
9010
IP20
- Operating temperature
+5 °C to +35 °C. °C
- Type
Presence detector
- Height
6 mm
- (Ø)
104 mm
- Dim
(Ø x H) 104 mm x 6 mm
- Recess depth
24 mm
- Recess diameter
68 mm
- Max. temperature
35 °C
- Min. temperature
5 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958337 ESYLUX EP10428685 Flush mount Occupancy sensor 360 ° White IP20
Description
KNX design ceiling-mounted occupancy detector with a 360° detection range. Range approx. 8 m Ø at a recommended mounting height of 3 m (maximum mounting height 5 m). Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Manual, temporary switching/dimming via user remote control. Communication objects, constant light control or switching, heating, ventilation and air conditioning (HVAC), blocking object for heating, ventilation and air conditioning (HVAC), light output (2 bytes), status message, presence output (HVAC), usable as "Master" or "Slave", KNX button control for light channels, full or semi-automatic, orientation light 2 light values selectable 10% - 50%, test mode, correction factor Sensitivity of sensor adjustable from 1 to 4. Standard design as flush-mounted device Flat appearance with designer plastic covers (Ø 104mm): Round, white - variable interchangeable. Ceiling mounting possible with accessories. Targeted suppression of areas using enclosed lens mask.
