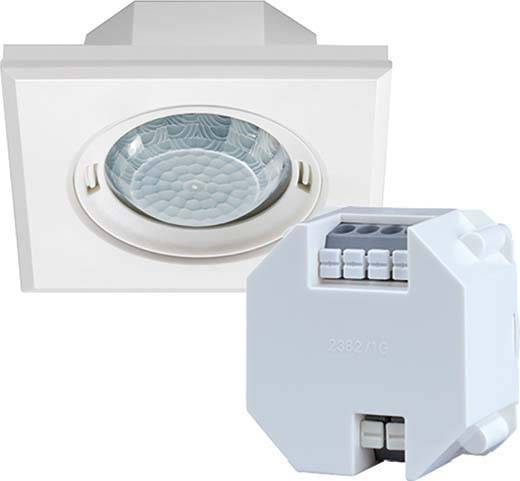

ESYLUX EP10428715 Flush mount Occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: no
- Bus-KNX radio: no
- Funkbus bus system: no
- LON bus system: no
- Powernet bus system: no
- Other bus systems: without
- Bi-directional radio: no
- Installation type: flush-mounted
- Material: plastic
- Material: thermoplastic
- Untreated surface:
- Design of the surface: mat
- RAL-number (similar): 9010
- Transparent: no
- With bus coupling: yes
- Extension input: yes
- Sneak/field monitoring: no
- Mode switch: no
- Animal - i.e up: no
- Staircase monitoring: no
- Adjustable threshold: yes
- Teach function for the light-intensity threshold: yes
- Switch-off delay is self-learning: no
- Optimum mounting height: 3m
- Max. The Front Range: 3 m
- Detection field diameter on floor: 8 m
- Detection angle, vertical: 0..180°
- Detection angle horizontal 180°. .360
- Number of Channels: 1
- The number of binary inputs: 0
- Power rating: 0 W
- Min. The depth of the device box: 24 mm
- Product type
Occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Switching capacity
0 W
- Twilight settings
3 - 1000 lx
- Time settings
1 - 240 min
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Presence detector
- Length
77 mm
- Width
77 mm
- Height
30 mm
- Dim
(L x W x H) 77 x 77 x 30 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955599 ESYLUX EP10428715 Flush mount Occupancy sensor 360 ° White IP20
Description
DALI design presence detector with excellent coverage, at least 8 m in diameter. Surface finish with design covers in plastic: Square, white - variable can be changed (alternatively: round, glass, black). Set: DALI Bus-Spannungsversorgung 200 mA included in the delivery. In-wall and ceiling mounted. Input.
