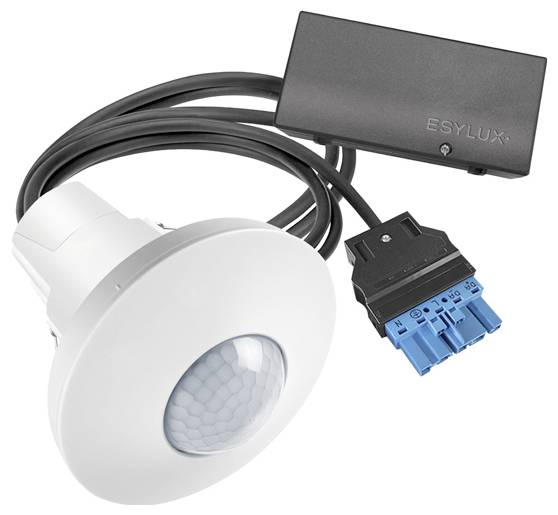

ESYLUX EP10428944 Flush mount Occupancy sensor Relay
EAN:
Part number:
Item no:
Technical specifications
- Height: 118 mm
- Mounting depth: 80 mm
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- Diameter 108 mm
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Min Depth of the device socket 80 mm
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Installation diameter 68 mm
- With connection cable: No.
- Material quality: Thermoplastic
- RAL number (similar): 9010
- Response brightness adjustable: Yes
- Optimum mounting height 3 m.
- Max. Range to one side: 4 m.
- Max. Range: Front 3 m
- Capturing field Diameter on floor: 8 m.
- Angle of coverage vertical 53..106°
- Horizontal coverage angle: 180..360°
- Low-level detection/back field monitoring: No.
- Animal slope: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- Bus power supply: Yes
- DALI-2 certified: Yes
- Product type
Occupancy sensor
- Used at
Indoors
- Mounting type
Flush mount
- Contact type
Relay
- Similar RAL
9010
- Height
118 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 118 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548961 ESYLUX EP10428944 Flush mount Occupancy sensor Relay
Description
DALI-2 certified ceiling presence detector with integrated DALI-2 control unit and power supply (250 mA). Cross-area lighting control of up to 16 groups. Easy to adapt to individual and complex room situations. Adaptive HCL light control for energy-efficient Human Centric Lighting (SymbiLogic). 16A relay for switching HVAC and auxiliary lighting. 4 button inputs (potential-affected). Versatile manual override options and up to 16 scenes. Automatic switching of groups if space usage changes. Day of the week and time-dependent control options per group. Power-saving and time-controlled shutdown of DALI operating devices (Power cut-off). Warm function for more comfort at the workplace. Central functions for zone or building-wide override. Extensively configurable night-time operation, for example for health care facilities. Alarm functions that can be triggered manually or automatically. Fast start with factory settings in broadcast mode. Individual groups ready to use immediately with factory settings. Easy configuration via ESY-APP via bidirectional Bluetooth interface. Easy documentation and management of configured projects via ESY APP (e.g. as PDF report). 2.0 m pre-assembled WAGO WINSTA® supply and lead.
