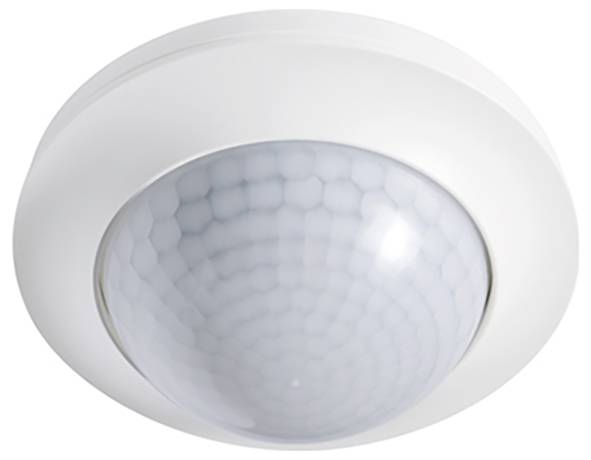

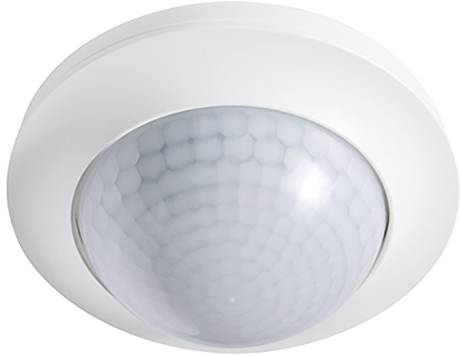

ESYLUX EP10428982 Flush mount Motion detector
EAN:
Part number:
Item no:
Technical specifications
- Height: 70 mm
- Mounting depth: 24 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- Diameter 108 mm
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: No.
- Min Depth of the device socket 24 mm
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: Yes
- Installation diameter 68 mm
- With connection cable: No.
- Material quality: Thermoplastic
- RAL number (similar): 9010
- Response brightness adjustable: Yes
- Optimum mounting height 10 m.
- Max. Range to one side: 20 m.
- Max. Range: Front 10 m
- Capturing field Diameter on floor: 40 m.
- Angle of coverage vertical 63..126°
- Horizontal coverage angle: 180..360°
- Operating mode switch: No.
- Staircase monitoring: No.
- Low-level detection/back field monitoring: No.
- Teach-Function for Response Brightness: No.
- Animal slope: No.
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- Bus power supply: No.
- DALI-2 certified: Yes
- Product type
Motion detector
20 m
- Mounting type
Flush mount
- Similar RAL
9010
- Height
70 mm
- (Ø)
108 mm
- Dim
(Ø x H) 108 mm x 70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547915 ESYLUX EP10428982 Flush mount Motion detector
Description
DALI-2 certified ceiling motion detector as input device for DALI-2 lighting systems. Cross-room light management in combination with APC presence detectors. As an alternative, it can be integrated into third-party building management systems with DALI-2 interface. Integrated PIR sensor for DALI-2 commands according to IEC 62386-303 and light sensor for commands according to IEC 62386-304. Pushbutton input for connecting conventional buttons (push-buttons and switch commands are output as DALI-2 commands in accordance with IEC 62386-301 or -302). Surface or ceiling mounting with accessories.
