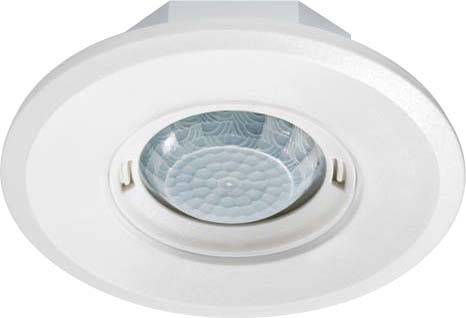

ESYLUX EP10451706 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: YesBus system KNX radio: No.Bus system wireless bus: No.Bus system LON: No.Bus system Powernet: No.Other bus systems: WithoutWireless bidirectional: NoMounting type: Flush-mountedMaterial: PlasticMaterial quality: ThermoplasticSurface: UntreatedDesign of surface: MattRAL number (similar): 9010Transparent: No.With bus connection: YesExtension input: No.Low-level detection/back field monitoring: No.Operating mode switch: No.Animal slope: No.Staircase monitoring: No.Response brightness adjustable: YesTeach-Function for Response Brightness: YesSwitch-off delay, self-learning: No.Optimum mounting height 3 m.Max. Range: Front 3 mCapturing field Diameter on floor: 8 m.Angle of coverage vertical 0..180°Horizontal coverage angle: 180..360°Number of channels: 4Number of binary inputs: 0Switching capacity 0 WMin Depth of the device socket 24 mm
- Product type
Ceiling-mount occupancy sensor
- Detection angle
360°
4 m
- Used at
Indoors
- Mounting type
Flush mount
- Voltage (max.)
31 V
- Twilight settings
3 - 1000 lx
- Time settings
30 s – 720 min
- Factory colour
White
- Similar RAL
9010
IP20
- Type
Presence detectors
- Height
30 mm
- (Ø)
94 mm
- Dim
(Ø x H) 94 mm x 30 mm
- Weight
0.13
- Voltage (min.)
29 V
Presence detector
30 mm
24 mm
94 mm
FALSE
60 mm
TRUE
FALSE
FALSE
TRUE
FALSE
9010
FALSE
FALSE
24
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966437 ESYLUX EP10451706 Flush mount Ceiling-mount occupancy sensor 360 ° White IP20
Description
KNX design ceiling-mounted occupancy detector with a 360° detection range. Range approx. 8 m Ø at a recommended mounting height of 3 m (maximum mounting height 5 m). Can be used in the KNX bus system (EIB), TP (2-wire bus) in connection with other KNX components. Parameter and function setting via the ETS (engineering tool software). Manual, temporary switching/dimming via user remote control. Communication objects, constant light control or switching, heating, ventilation and air conditioning (HVAC), blocking object for heating, ventilation and air conditioning (HVAC), light output (2 bytes), status message, presence output (HVAC), usable as "Master" or "Slave", KNX button control for light channels, full or semi-automatic, orientation light 2 light values selectable 10% - 50%, test mode, correction factor Sensitivity of sensor adjustable from 1 to 4. Standard design as flush-mounted device Ceiling mounting possible with accessories. Targeted suppression of areas using enclosed lens mask.
