ESYLUX EQ10132339 EQ10132339 LED panel 33 W White White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ESYLUX ESYLUX LED insert light M600 3000K CELINE-2 #EQ10132339
- Power= 33 W
- Total luminous flux= 4300 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Painted
- Housing color: White
- Cover material: Textured plastic
- Design of grid: Without
- Voltage type DC
- Nominal voltage: 42 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Manufacturer-specific dimming: Yes
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM2
- Light emission: Direct
- Highest energy efficiency class of the replaceable bulb: E.
- Rated life L70/B50 at 25 °C: 110000 h
- Rated life L80/B10 at 25 °C: 65000 h
- Rated life L90/B10 at 25 °C: 35000 h
- Protection class (IP) IP20
- Impact strength: IK02
- Protection class III
- Lamp with limited surface temperature "D-sign": No.
- Rated ambient temperature according to IEC62722-2-1: 0..40°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Suitable for lamp output 30 W
- Max. System power 33 W
- Light output 130 lm/W
- Rated light current according to IEC 62722-2-1: 4300 lm
- Light color: White
- Colour temperature: 3000 K
- Flicker value PST LM: 0.13
- Color Rendering Index CRI: 80-89
- Strobe effect value SVM: 0.02
- Constant luminous flux regulation: No.

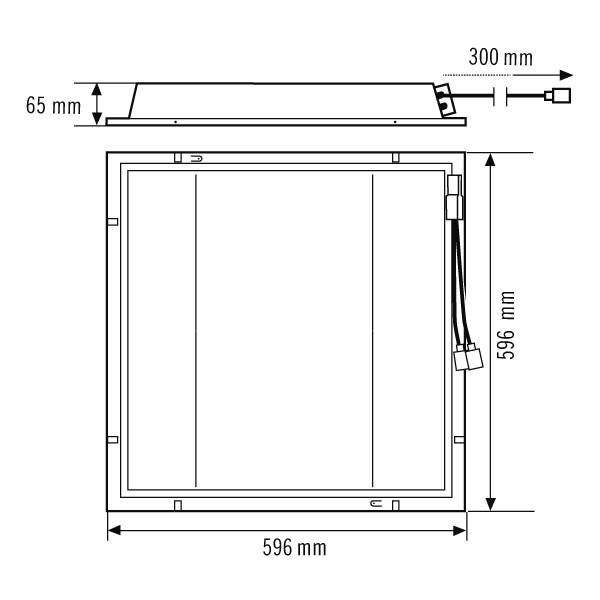

- Width 596 mm
- Height/depth 65 mm
- Length: 596 mm
- Mounting length 600 mm
- Mounting width 600 mm
- Installation height/depth 140 mm
- Type of wiring: Finish
- Connector type: Socket
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 19
- Light intensity 1706 cd
- Adjustable color temperature: No.
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
LED panel
- Type
Square
- Operating voltage
42 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
30 W
33 W
3000 K
- Colour
White
4300 lm
- Total luminous flux
4300 lm
- Protection screen
Textured
- Light features
Dimmable
- Protection class
III
IP20
- Factory colour
White
- Material
Steel
- Width
596.00 mm
- Height
65.00 mm
- Length
596.00 mm
n.rel.
- Rated luminous flux
4300 lm
Yes
- Light bulb included
Yes
- Colour rendering index
80-89
- Recess length
600 mm
- Recess width
600 mm
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Recess depth
140 mm
- Nominal voltage
42 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3159234 ESYLUX EQ10132339 EQ10132339 LED panel 33 W White White
User & Safety Instructions
User & Safety Instructions 3159234 ESYLUX EQ10132339 EQ10132339 LED panel 33 W White White
Description
LED lamp with transparent, microprismatic diffuser. Can be used as ceiling insertion lamp for system ceilings with hidden or visible mounting rails for the system dimensions 600 x 600 mm (please special features and if necessary Observe the limitations of the ceiling system manufacturer!). Lamp for ESYLUX light control via RJ45 plug with ESYLUX smart driver or DALI-2 driver set or ON/OFF driver set (not included in the delivery). Colour temperature approx. 3000 K (warm white). Excellent lighting quality, suitable for screen workstations according to EN 12464-1. Rated life L80B subold<>50 at 25 °C: 70000 h.
