ESYLUX EQ10132414 EQ10132414 LED panel 33 W White White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ESYLUX ESYLUX LED insert lamp M625 TW CELINE-2 #EQ10132414
- Power= 33 W
- Total luminous flux= 4400 lm
- Colour temperature= 6500 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Painted
- Housing color: White
- Cover material: Textured plastic
- Design of grid: Without
- Voltage type DC
- Nominal voltage: 42 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Manufacturer-specific dimming: Yes
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM2
- Light emission: Direct
- Highest energy efficiency class of the replaceable bulb: E.
- Rated life L70/B50 at 25 °C: 110000 h
- Rated life L80/B10 at 25 °C: 65000 h
- Rated life L90/B10 at 25 °C: 35000 h
- Protection class (IP) IP20
- Impact strength: IK02
- Protection class III
- Lamp with limited surface temperature ""D-sign"": No.
- Rated ambient temperature according to IEC62722-2-1: 0..40°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Suitable for lamp output 30 W
- Max. System power 33 W
- Light output 133 lm/W
- Rated light current according to IEC 62722-2-1: 4400 lm
- Light color: White
- Colour temperature 2700..6500 K
- Flicker value PST LM: 0.02
- Color Rendering Index CRI: 80-89
- Constant luminous flux regulation: No.

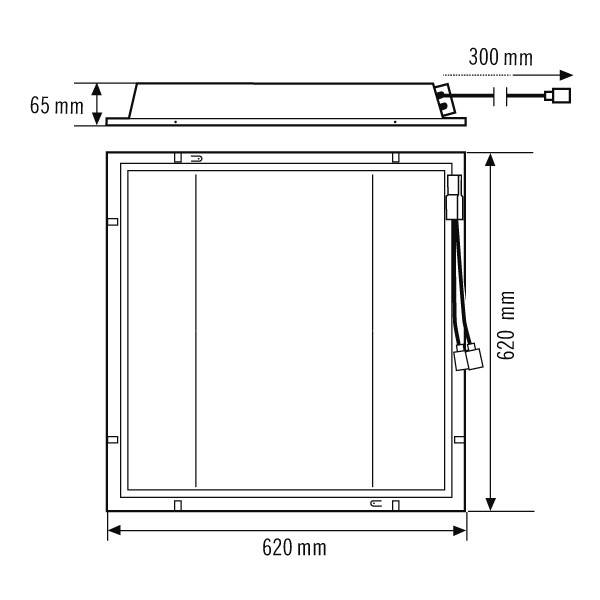

- Width 620 mm
- Height/depth 65 mm
- Length: 620 mm
- Mounting length 625 mm
- Mounting width 625 mm
- Installation height/depth 140 mm
- Type of wiring: Finish
- Connector type: Socket
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 19
- Light intensity 1661 cd
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
LED panel
- Operating voltage
42 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
30 W
33 W
6500 K
- Colour
White
4400 lm
- Total luminous flux
4400 lm
- Protection screen
Textured
- Light features
Dimmable
- Radiation angle
80°
- Protection class
III
IP20
- Factory colour
White
- Material
Steel
- Width
620.00 mm
- Height
65.00 mm
- Length
620.00 mm
n.rel.
- Rated luminous flux
4400 lm
Yes
- Light bulb included
Yes
- Colour rendering index
80-89
- Recess length
625 mm
- Recess width
625 mm
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
2700 K
- Recess depth
140 mm
- Nominal voltage
42 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3159203 ESYLUX EQ10132414 EQ10132414 LED panel 33 W White White
User & Safety Instructions
User & Safety Instructions 3159203 ESYLUX EQ10132414 EQ10132414 LED panel 33 W White White
Description
LED lamp with transparent, microprismatic diffuser. Can be used as ceiling insertion lamp for system ceilings with hidden or visible mounting rails for the system dimensions 625 x 625 mm (please special features and if necessary Observe the limitations of the ceiling system manufacturer!). Lamp for ESYLUX light control via RJ45 plug with ESYLUX smart driver or DALI DT8 driver set (not included in the delivery). Colour temperature 2700 - 6500 K (Tunable White). Excellent lighting quality, suitable for screen workstations according to EN 12464-1. Rated life L80B subold<>50 at 25 °C: 70000 h.
