ESYLUX EQ10132490 EQ10132490 LED panel 132 W White White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ESYLUX ESYLUX LED lighting system M625 HCL QUADRO-S #EQ10132490
- Power= 132 W
- Total luminous flux= 17600 lm
- Colour temperature= 6500 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Painted
- Housing color: White
- Cover material: Textured plastic
- Design of grid: Without
- Voltage type AC
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Manufacturer-specific dimming: Yes
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Highest energy efficiency class of the replaceable bulb: E.
- Rated life L70/B50 at 25 °C: 110000 h
- Rated life L80/B10 at 25 °C: 65000 h
- Rated life L90/B10 at 25 °C: 35000 h
- Protection class (IP) IP20
- Impact strength: IK02
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Rated ambient temperature according to IEC62722-2-1: 0..40°C.
- Suitable for emergency light: No.
- With motion detector: Yes
- With light sensor: Yes
- With air vents: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Max. System power 132 W
- Light output 133 lm/W
- Rated light current according to IEC 62722-2-1: 17600 lm
- Light color: White
- Colour temperature 2700..6500 K
- Flicker value PST LM: 0.02
- Color Rendering Index CRI: 80-89

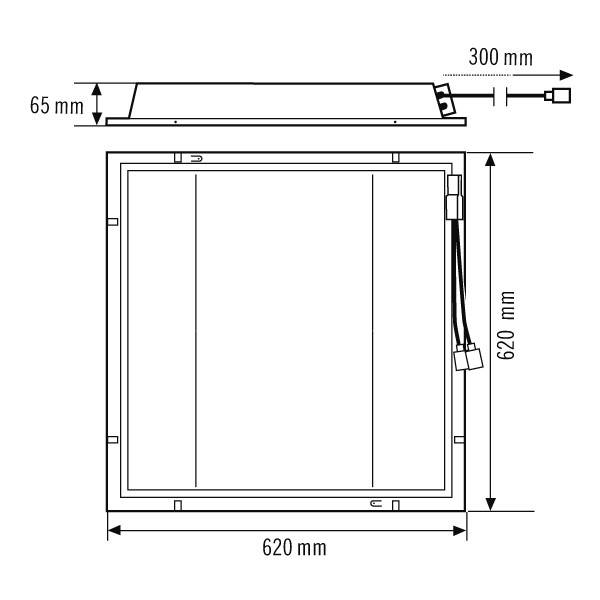

- Width 620 mm
- Height/depth 65 mm
- Length: 620 mm
- Mounting length 625 mm
- Mounting width 625 mm
- Installation height/depth 140 mm
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 19
- Adjustable color temperature: Continuously
- Luminous flux can be set continuously
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
LED panel
- No. of bulbs
1
- Bulb type
LED (monochrome)
132 W
6500 K
- Colour
White
17600 lm
- Total luminous flux
17600 lm
- Protection screen
Textured
- Light features
Incl. ballast
Dimmable
App-enabled
Incl. motion detector
Incl. light sensor
- Protection class
I
IP20
- Factory colour
White
- Material
Steel
- Width
620.00 mm
- Height
65.00 mm
- Length
620.00 mm
n.rel.
- Rated luminous flux
17600 lm
Yes
- Light bulb included
Yes
- Colour rendering index
80-89
- Recess length
625 mm
- Recess width
625 mm
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
2700 K
- Recess depth
140 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3159211 ESYLUX EQ10132490 EQ10132490 LED panel 132 W White White
User & Safety Instructions
User & Safety Instructions 3159211 ESYLUX EQ10132490 EQ10132490 LED panel 132 W White White
Description
Pre-configured, ready to install light system with ESYLUX light control ELC. Optimized for offices up to approximately 20 m². Delivery: 4x ELC light with prismatic diffuser, cable with RJ45 plugs, ferrite, ELC control, ELC presence detector with connection cable RJ10. Can be used as ceiling insertion lamp for system ceilings with hidden or visible mounting rails for the system dimensions 600 mm x 600 mm (please special features and if necessary Observe the limitations of the ceiling system manufacturer!). Fit for screen working as per EN 12464-1. Simple parameterisation, remote control and documentation via ESY-app. Colour temperature 2700-6500 K (Tunable White).
