ESYLUX EQ10132513 EQ10132513 LED panel 33 W White White
EAN:
Part number:
Item no:
Highlights & Details
ESYLUX ESYLUX LED panel M625 840, DALI CELINE-2 #EQ10132513
- Power= 33 W
- Total luminous flux= 4200 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Painted
- Housing color: White
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC/DC
- Nominal voltage 200..240 V
- With operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI-2 dimming: Yes
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.
- Light distributor: Diffuser lens/-optic/-panel
- Light distribution: Symmetric
- Radiation angle: Extremely wide radiation >80°
- Color consistency (McAdam ellipse): SDCM2
- Light emission: Direct
- Highest energy efficiency class of the replaceable bulb: E.
- Rated life L70/B50 at 25 °C: 110000 h
- Rated life L80/B10 at 25 °C: 65000 h
- Rated life L90/B10 at 25 °C: 35000 h
- Protection class (IP) IP20
- Impact strength: IK02
- Protection class: II
- Lamp with limited surface temperature ""D-sign"": No.
- Rated ambient temperature according to IEC62722-2-1: 0..40°C.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:850°C - 30 s.
- Max. System power 33 W
- Light output 127 lm/W
- Rated light current according to IEC 62722-2-1: 4200 lm
- Light color: White
- Colour temperature: 4000 K
- Flicker value PST LM: 0.01
- Color Rendering Index CRI: 80-89
- Strobe effect value SVM: 0.01
- Constant luminous flux regulation: No.

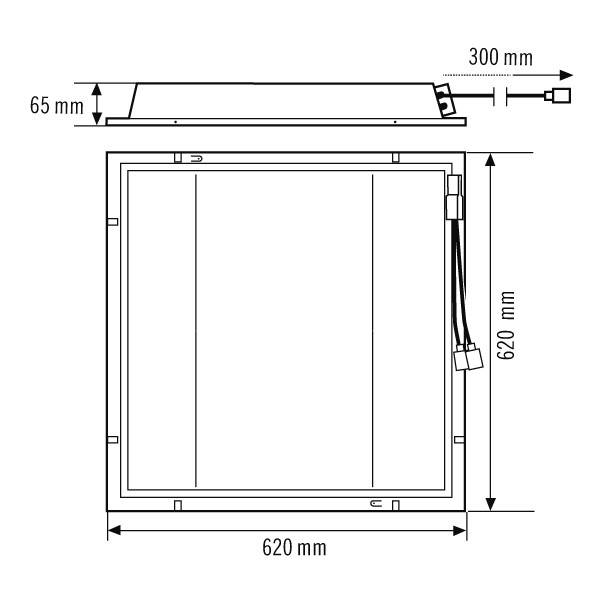

- Width 620 mm
- Height/depth 65 mm
- Length: 620 mm
- Mounting length 625 mm
- Mounting width 625 mm
- Installation height/depth 140 mm
- Number of pins: 5
- Conductor cross-section: 2.5 mm²
- Connector type: Plug
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 19
- Light intensity 1784 cd
- Adjustable color temperature: No.
- Luminous flux can be set continuously
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With bulb: Yes
- Product type
LED panel
- Type
Square
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
33 W
33 W
4000 K
- Colour
White
4200 lm
- Total luminous flux
4200 lm
- Protection screen
Satinised
- Light features
Dimmable
- Protection class
II
IP20
- Factory colour
White
- Material
Steel
- Width
620.00 mm
- Height
65.00 mm
- Length
620.00 mm
n.rel.
- Rated luminous flux
4200 lm
Yes
- Light bulb included
Yes
- Colour rendering index
80-89
- Recess length
625 mm
- Recess width
625 mm
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Recess depth
140 mm
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159212 ESYLUX EQ10132513 EQ10132513 LED panel 33 W White White
Description
LED light with opal diffuser. Can be used as ceiling insertion lamp for system ceilings with hidden or visible mounting rails for the system dimensions 625 x 625 mm (please special features and if necessary Observe the limitations of the ceiling system manufacturer!). Lamp with DALI-2 driver set included in the delivery. Connection clamp for cables up to 5 x 2.5 mm². Colour temperature approx. 4000 K (neutral white). Excellent lighting quality, suitable for screen workstations according to EN 12464-1. Rated life L80B subold<>50 at 25 °C: 70000 h.
