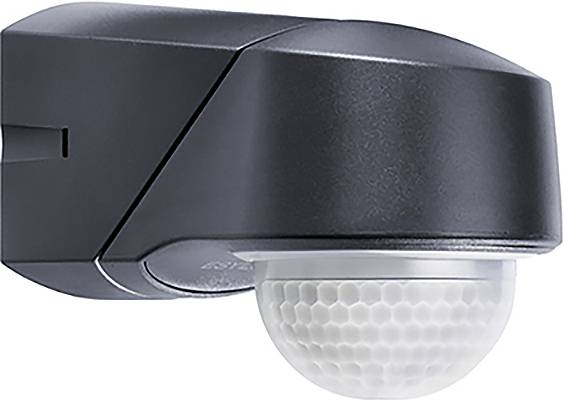

ESYLUX KNX EM10015489 Motion detector RC 230 KNX BK
EAN:
Part number:
Item no:
Technical specifications
- Height: 105 mm
- Width 78 mm
- Depth: 135 mm
- Design: Motion detector
- Mounting type: Surface-mounted
- Material: Plastic
- Colour, black
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- KNX bus system: Yes
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- Number of channels: 3
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: Yes
- Suitable for wall mounting: Yes
- Suitable for ceiling mounting: Yes
- With connection cable: No.
- Material quality: Thermoplastic
- RAL number (similar): 9005
- Response brightness adjustable: Yes
- Optimum mounting height 2.5 m.
- Max. Range to one side: 20 m.
- Max. Range: Front 8 m
- Capturing field Diameter on floor: 40 m.
- Angle of coverage vertical 83..166°
- Horizontal coverage angle: 115..230°
- Operating mode switch: No.
- Staircase monitoring: No.
- Min Switch-on time 30 seconds
- Max. duty cycle 30 min
- Low-level detection/back field monitoring: Yes
- Teach-Function for Response Brightness: Yes
- Animal slope: No.
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- Bus power supply: No.
- DALI-2 certified: No.
- Product type
Motion detector
- Series
KNX
- Data transfer (Smart Home)
Wired
- Channels
3
- Mounting type
Surface-mount
- Factory colour
Black
- Width
78 mm
- Height
105 mm
- Depth
135 mm
- Dim
(W x H x D) 78 x 105 x 135 mm
- Hub
Not required, optional for remote access
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551949 ESYLUX KNX EM10015489 Motion detector RC 230 KNX BK
Description
KNX motion detector with a 230° detection range and large range. 360° creep protection for a complete detection Programmable via ETS Avoidance of incorrect operation through integrated selection switch for test function/remote control/potentiometer setting. Single-hand socket mounting. Double membrane cable entry Concealed connection socket with a large wiring space. Range adjustment of the sensor with additional focus LED as adjustment help. Retractable adjustment elements prevent accidental adjustment of the parameters. Wall or ceiling mounting is possible without accessories thanks to swivel joint. Cladding can be provided by the provided cover (can be cut to size). Special socket for indoor and outdoor mounting as an accessory.
