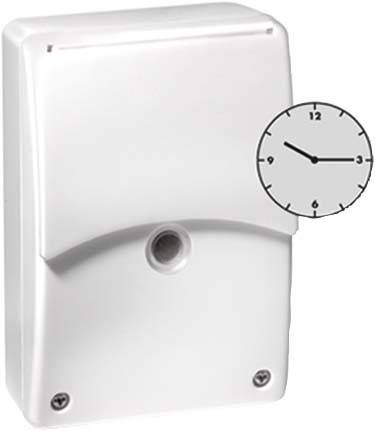

ESYLUX RK39500010040 Twilight switch White 230 V 1 maker
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design of the sensor: Light sensor installed
- Contacts: 1 closer
- Switch-on brightness: 5..300 lx
- Switch-off brightness: 5..300 lx
- Switch-off delay 60 s
- Switch-on delay 60 s.
- Suitable for C load: Yes
- With automatic night switch-off: Yes
- Mounting type: Surface-mounted
- Swivel: no.
- Material: Plastic
- Material quality: Thermoplastic
- Halogen-free: no.
- Surface: Untreated
- Surface type: Matt
- RAL number (similar): 9010
- Transparent: no.
- Max. Switching current (resistive load): 10 A.
- Operating temperature -25..55 °C.
- Min Depth of device socket: 0 mm
- Product type
Twilight switch
- Twilight settings
5 - 300 lux
- Operating voltage
230 V
- Contact type
1 maker
- Max. switching capacity
2300 W
IP54
- Factory colour
White
- Dim
(W x H x D) 80 x 114 x 51 mm
- Width
80 mm
- Height
114 mm
- Depth
51 mm
- Similar RAL
9010
- Mounting type
Surface-mount
- Switching capacity
2300 W
230 V
80
FALSE
51 mm
114 mm
-25-55 °C
9010
FALSE
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1962602 ESYLUX RK39500010040 Twilight switch White 230 V 1 maker
User & Safety Instructions
User & Safety Instructions 1962602 ESYLUX RK39500010040 Twilight switch White 230 V 1 maker
Description
Surface-mounted twilight switch for automatic switching of lighting. Integrated day timer with different switching options. Potential free relay contact Sets the light value from the outside. LED adjustment aid (delay-free). On and off delay. Double cable entry from below or through the rear wall of the housing is possible. Large connection space. Suitable for wall and internal mounting. Captive stainless steel screws. Housing made of impact-resistant, UV-stabilized polycarbonate.
