Eufab Cycle carrier Premium III 11522 No. of bicycles=3
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

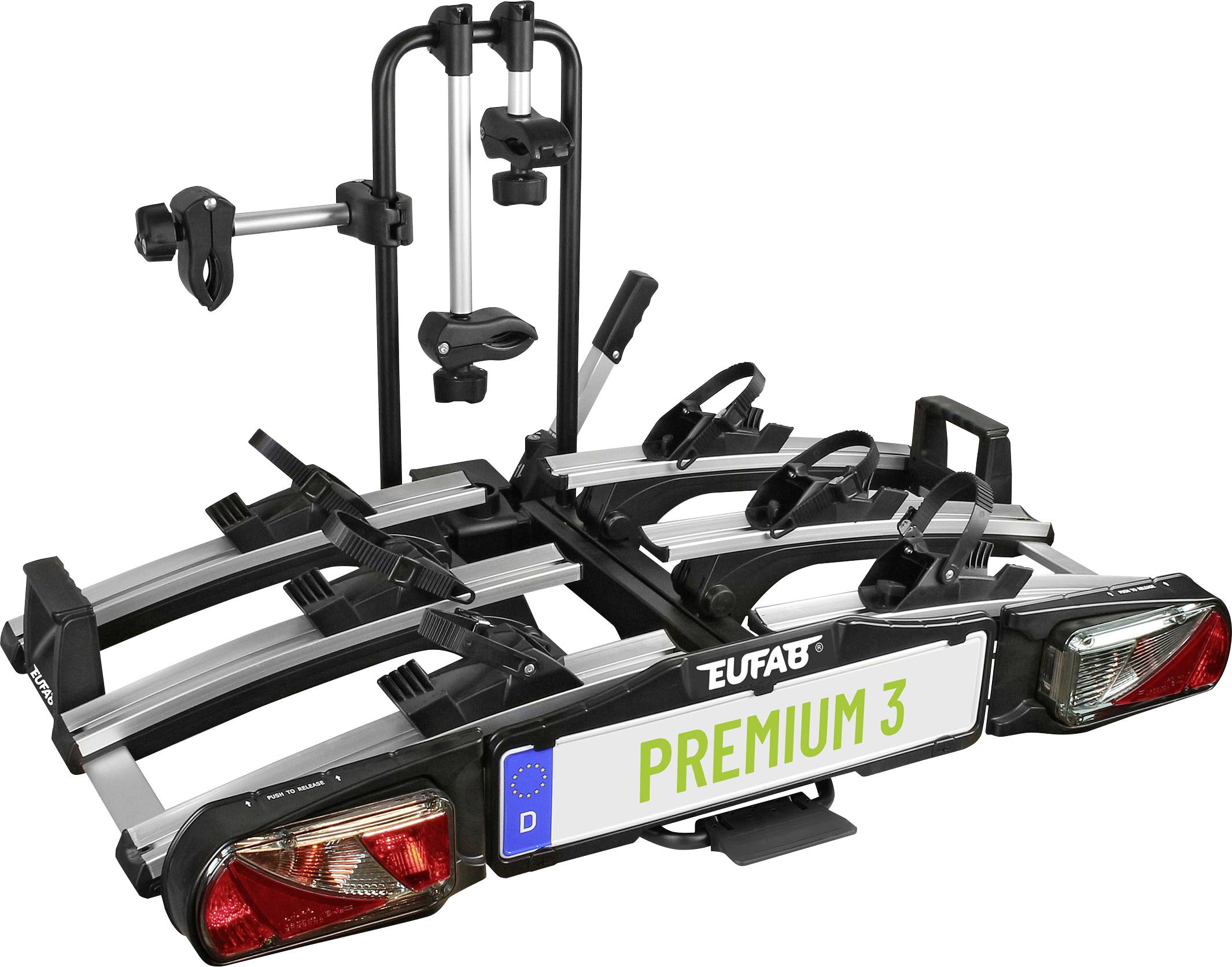

Eufab bicycle carrier premium III
- E-Bike-enabled with 60 kg total load
- Convenient folding function for trunk access

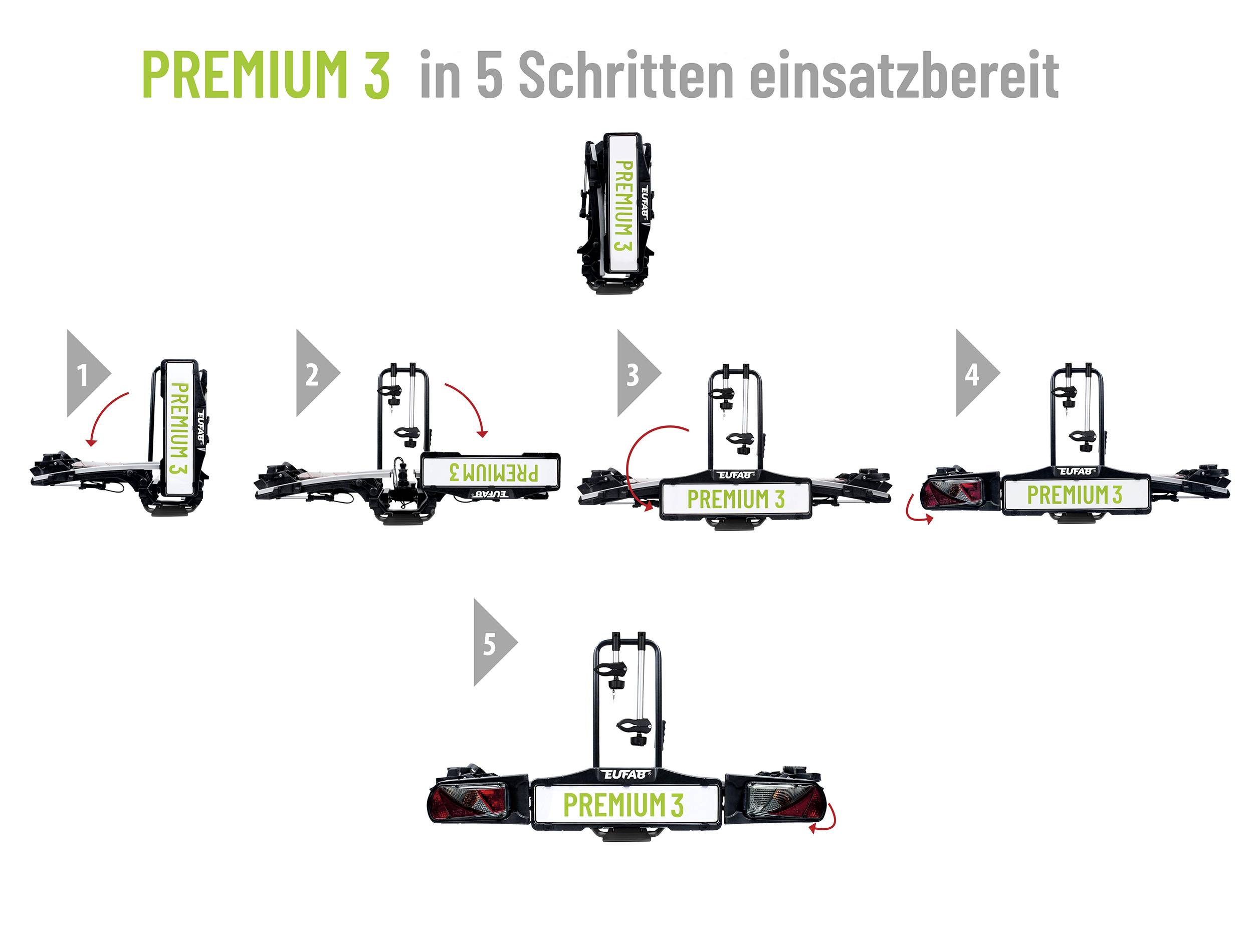

- Pre-assembled and ready to use immediately
- Theft protection for bicycles and carriers

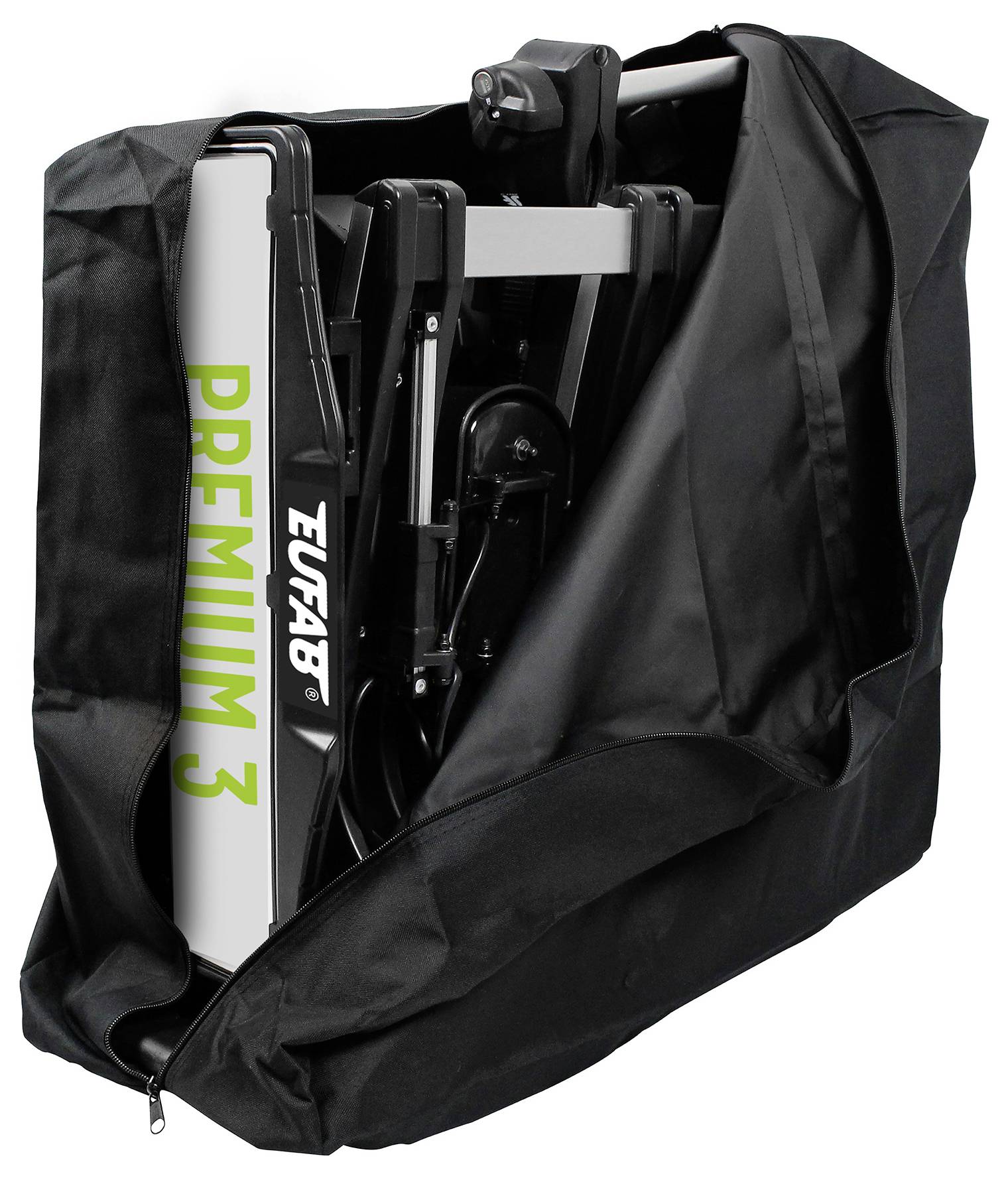

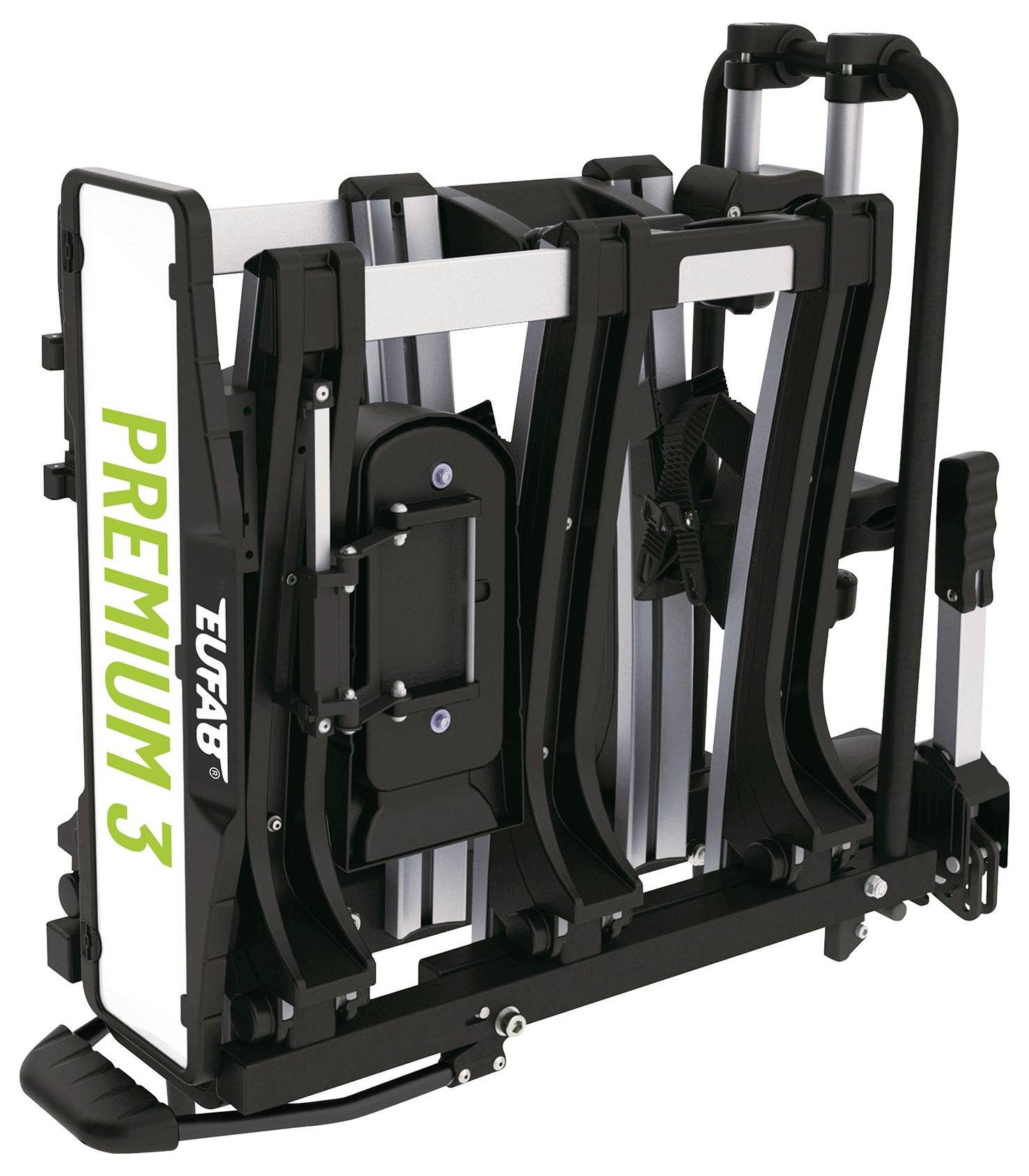

- Space saving and foldable
- High-quality aluminum profile rails
Technical specifications
- Dim
(L x W x H) 74 cm x 11500 mm x 67 cm
- Product type
Cycle carrier
- Distance between bikes
22 cm
- Connector
13-pin
- No. of bicycles
3
- Width (folded)
68.5 cm
- Features
Folding/foldable
Detachable brackets
Lockable
Folding
Suitable for electric bicycles
- Suitable for frame size (max.)
60 cm
- Suitable for frame size (min.)
20 cm
- Weight
21 kg
- Height (folded)
67 cm
- Length (folded)
55.5 cm
- Material
Aluminium
Plastic
Steel
- Mounting site
Trailer hitch
- Suitable for type
Universal
- Width
11500 mm
- Height
67 cm
- Length
74 cm
- Depth
115 mm
- Series
Premium III
- Depth (folded)
30 cm
- Load capacity
60 kg
Documents & Downloads
Datasheet
Datasheet 3385312 Eufab Cycle carrier Premium III 11522 No. of bicycles=3
User & Safety Instructions
User & Safety Instructions 3385312 Eufab Cycle carrier Premium III 11522 No. of bicycles=3
Description
Discover unlimited freedom with the Premium III bike rack. This rugged and versatile carrier is your perfect companion for family outings and adventures with up to three bicycles or e-bikes. Thanks to its high-quality construction and sophisticated features, it offers maximum security and comfort. Whether you are planning a weekend trip or a longer cycling tour - the PREMIUM 3 will bring you and your wheels reliably at your destination.
This text is machine translated.
This text is machine translated.
Features

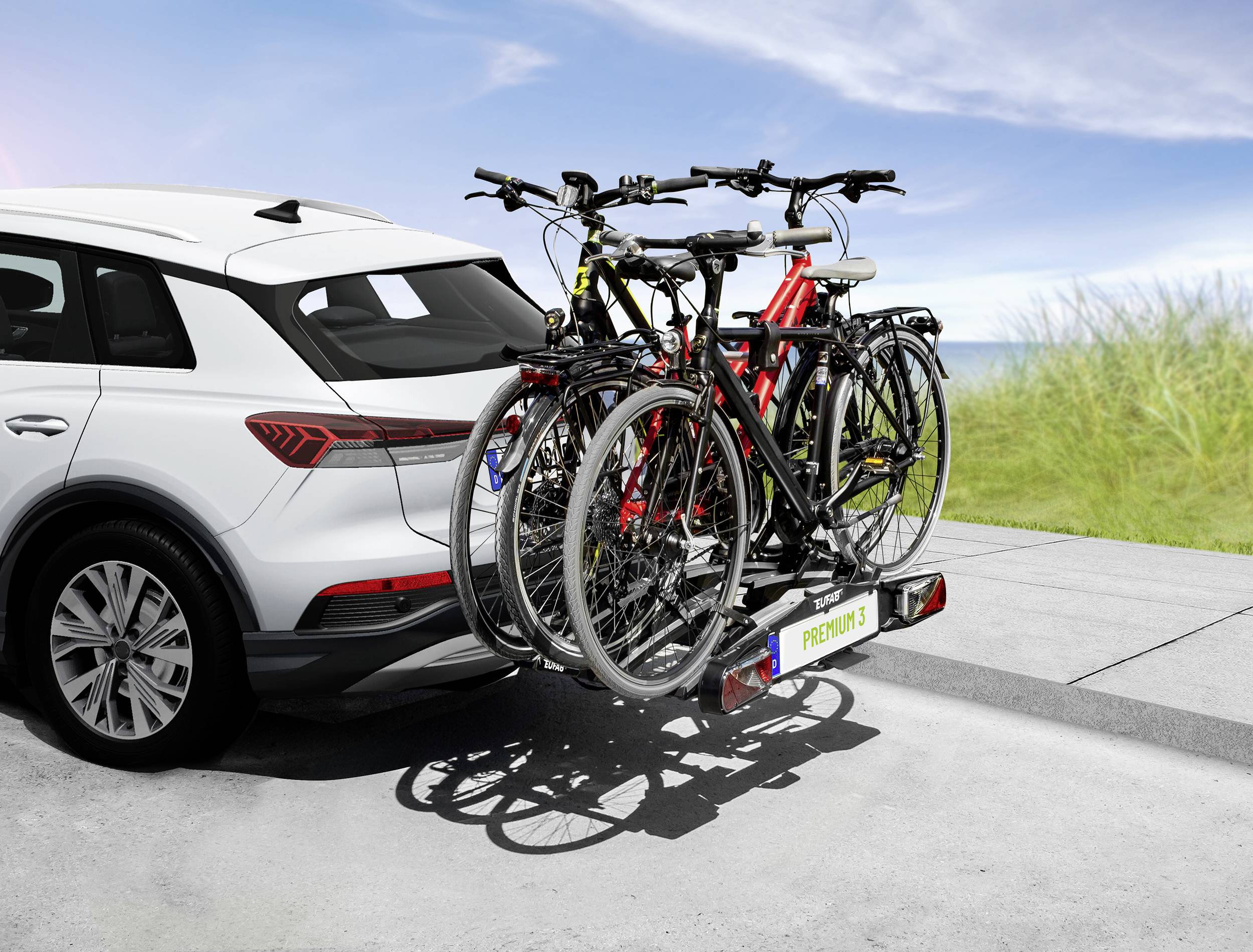

- Suitable for 3 bicycles or electric bikes
- Maximum payload: 60 kg
- Lockable, removable frame holder

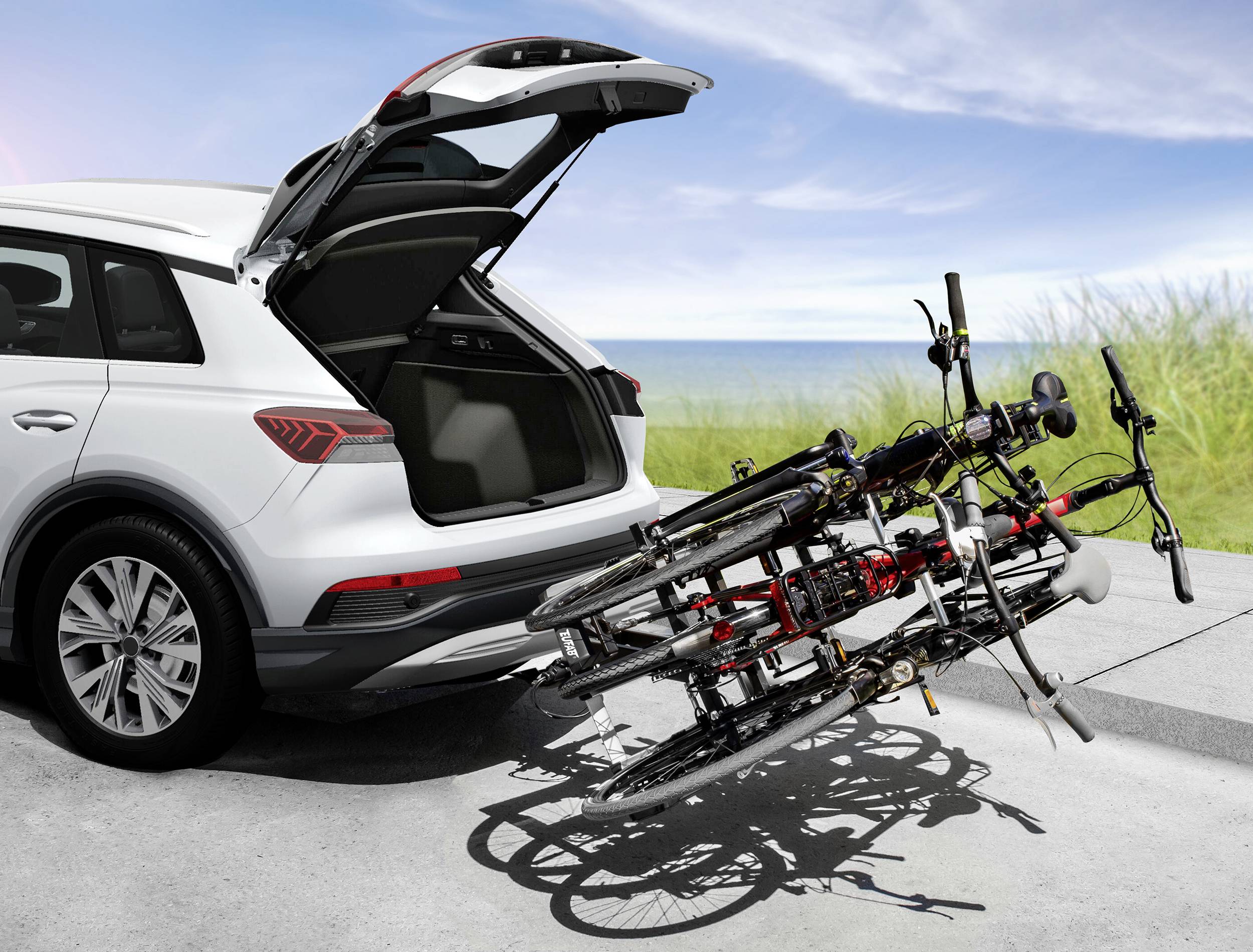

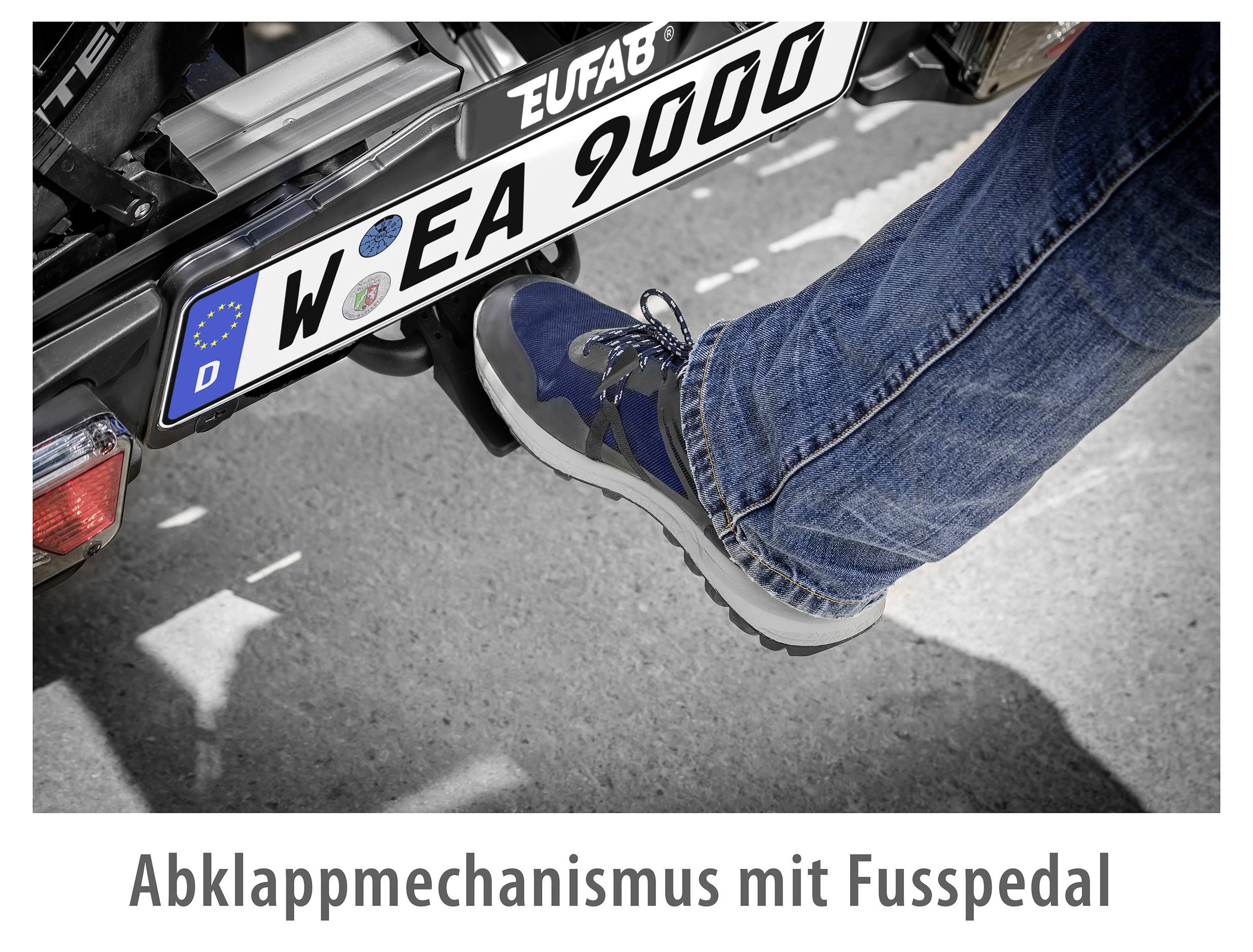

- Folding mechanism for boot access

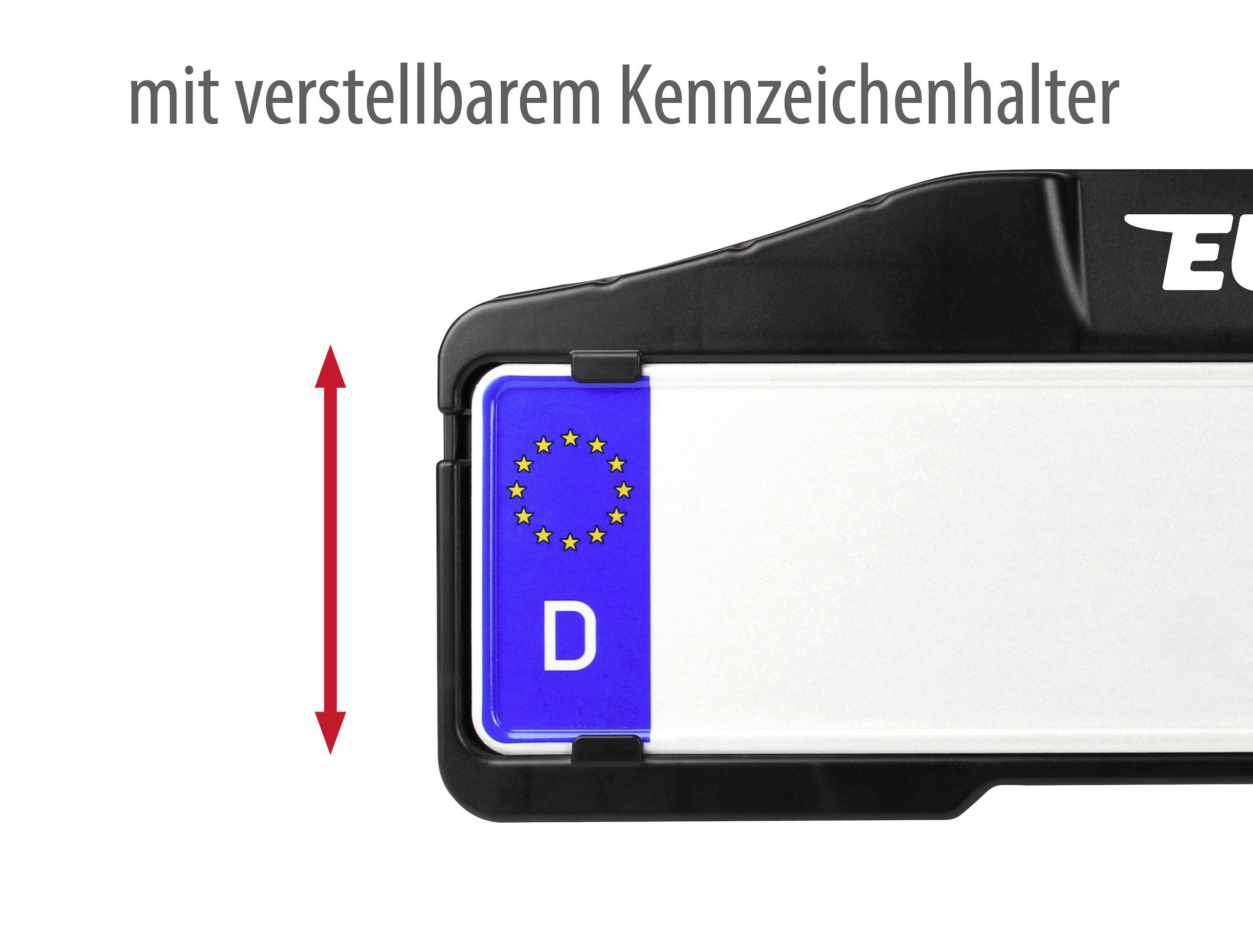

- Adjustable license plate holder with light
- Wheel stopper and tension belts with ratchets
- 13-pin plug for lighting
- Quick release system for easy mounting
Scope of delivery
- Premium III.
- 2 keys for frame holder locks
- User manual
Hints

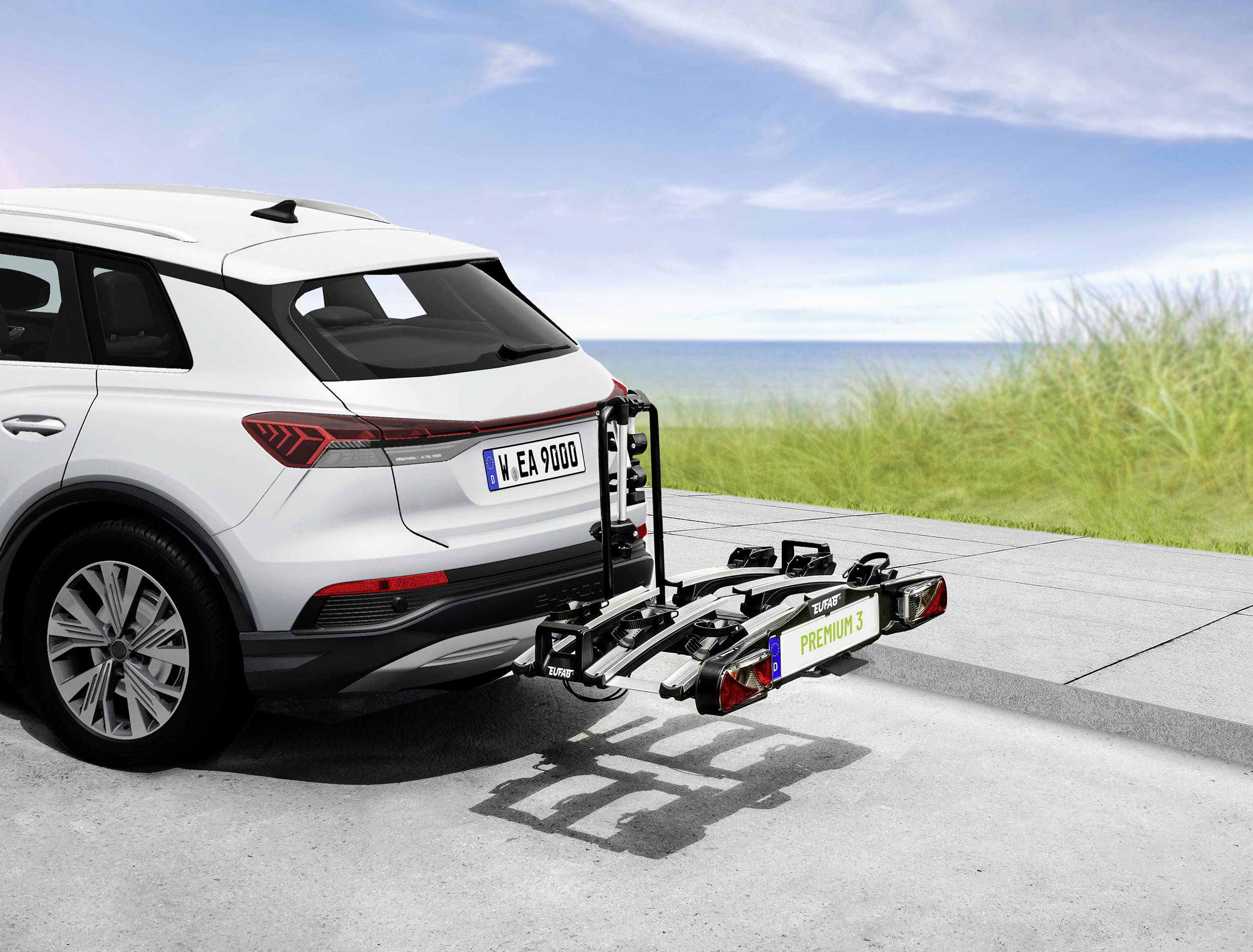

Please pay attention to the increased vehicle length with the mounted beam (approx. 74 cm). Maximum vehicle speed with loaded carrier is 130 km/h. Regularly check all attachments and remove loose objects from the bicycles before driving. The carrier is suitable for bicycles with a maximum wheelbase of 135 cm and a tire width of up to 2.2 inches (56 mm). Optional adapters for wider tires up to 3.35 inches (80 mm) are available separately. For your safety and optimum use, please read the operating instructions carefully before first use.
System requirements
- Trailer coupling with a vertical load of at least 60 kg
13-pin trailer socket
