Eurolite 41602127 THA-100F MK3 LED pin spot No. of LEDs (details):1 100 W
EAN:
Part number:
Item no:
Highlights & Details

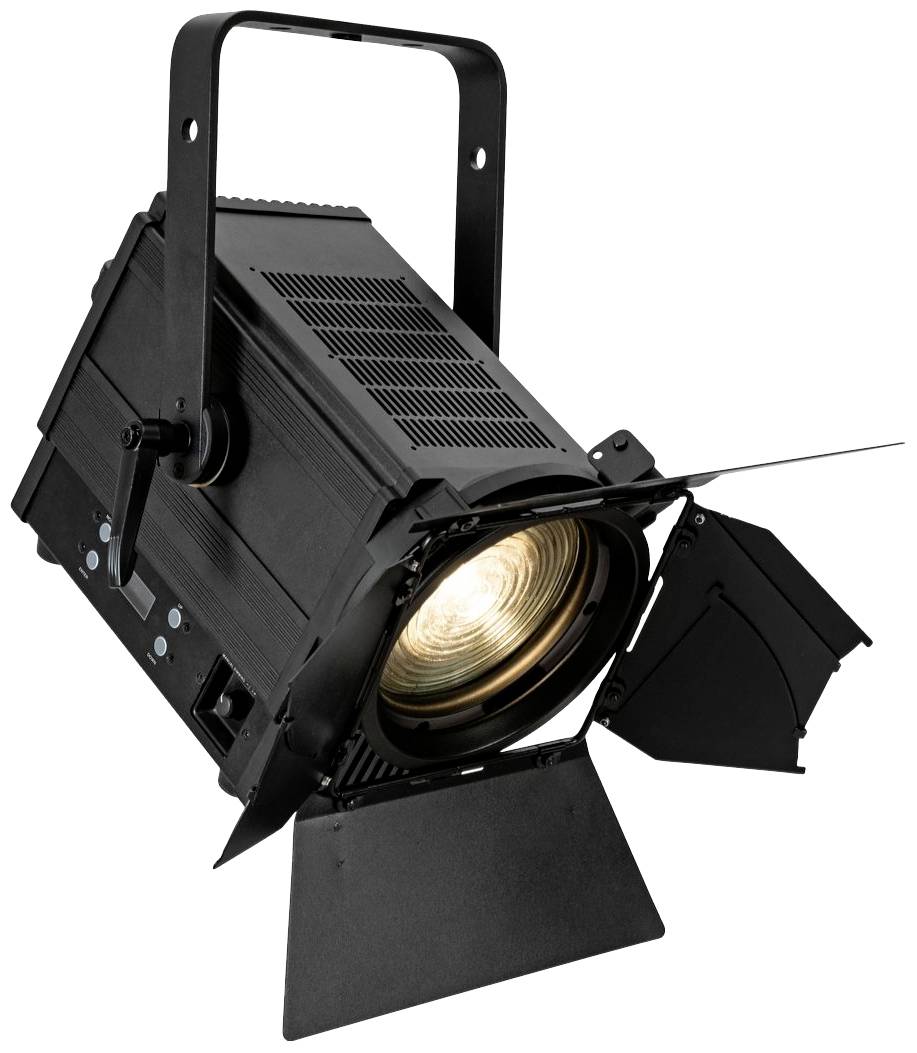

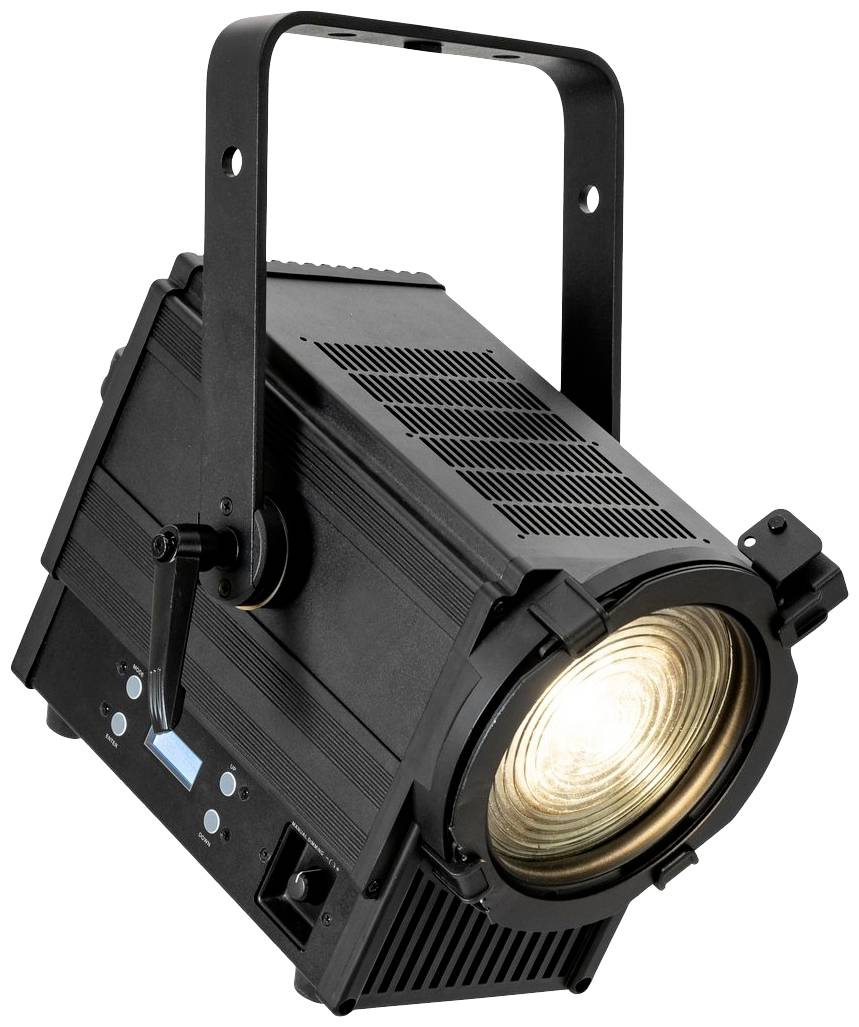

Eurolite LED THA-100F MK3 theater spot
- Fresnel lens (Step lens), 100 W Warm White LED, CRI 90, quiet, DMX
- 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
- Stroboscope-effect
- The fan ensures that the unit is cooled with minimal noise
Technical specifications
- Product type
LED pin spot
95 W
- LEDs
1
- Colour
Warm white
- Dim
(L x W x H) 350 x 315 x 395 mm
- Weight
7.15 kg
n.rel.
- Features
Dimmable
incl. strobe
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
315 mm
- Height
395 mm
- Length
350 mm
- Watt per LED
100 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131207 Eurolite 41602127 THA-100F MK3 LED pin spot No. of LEDs (details):1 100 W
Description
In comparison with the previous versions, a lot has changed: First, the so-called color rendering index. This specifies how natural the white light reproduces the colors of the illuminated objects and thus says something about the quality of light.
The classical THA 100F had a value of 76 here – more was then not possible with LEDs. The MK2 version came as an update of the headlight and reached a very good value of 94. The MK3 version now even achieves an excellent value of 96.
This text is machine translated.
The classical THA 100F had a value of 76 here – more was then not possible with LEDs. The MK2 version came as an update of the headlight and reached a very good value of 94. The MK3 version now even achieves an excellent value of 96.
This text is machine translated.
Features
- Can be controlled via stand alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional)
- Flicker-free
- With a beam angle of 8° - 55°
- Very high color rendering index (CRI)
- With mounting bracket
- LCD display
- Electronic dimmer; dimmer curves with adjustable response behavior; variable pulse width modulation; dimmer speed (step response) can be set
- Pre-programmed by Light Captain
- Rubber feet
- Power input and power output for simple connection of up to 8 devices
- For application areas like: Trade fair and shop building; installation; stage; theater
- Very quiet operation
- Possible application: On-the-fly; on a tripod
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 95 W
- Power supply: Power feed via P-Con (blue), installation version
- LCD display type
- Protection class SK I
- Cable length approx. 1.1 m
- Cooling: Fans quiet
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Control: Stand-alone
- Transport aid: Rubber feet
- Width: 31.5 cm
- LED lamp type
- LED:1 x 100 W COB (chip-on-board) warm white (WW)
- Colour temperature: 3000K
- DMX input 3-pin XLR (M), built in version
- Pre-programmed with: Light Captain
- Angle of radiation 8° - 55°
- Max. Beam angle: 1/2 peak, 8 - 40°
- Max. Beam angle: 1/10 peak, 16 - 55°
- Colour rendering index (CRI): 96 Ra
- Noise classification: Class 1 (very light noise, suitable for noise-sensitive environments)
- 5 x 20 mm, T 2 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Luminous flux: 5384 lm
- ENERGY EFFICIENCY CLASS (A - G): G.
- P-Con (gray), installation version
- Flash rate 20 Hz
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- 5-pin XLR (M) installation version
- 5-pin XLR (W) installation version
Scope of delivery
- Headlamps
- User manual
- Network cable/power cable
- Barn Doors
- Filter frame
