Eurolite 41602133 41602133 DMX LED effect light No. of LEDs (details):1
EAN:
Part number:
Item no:
Highlights & Details

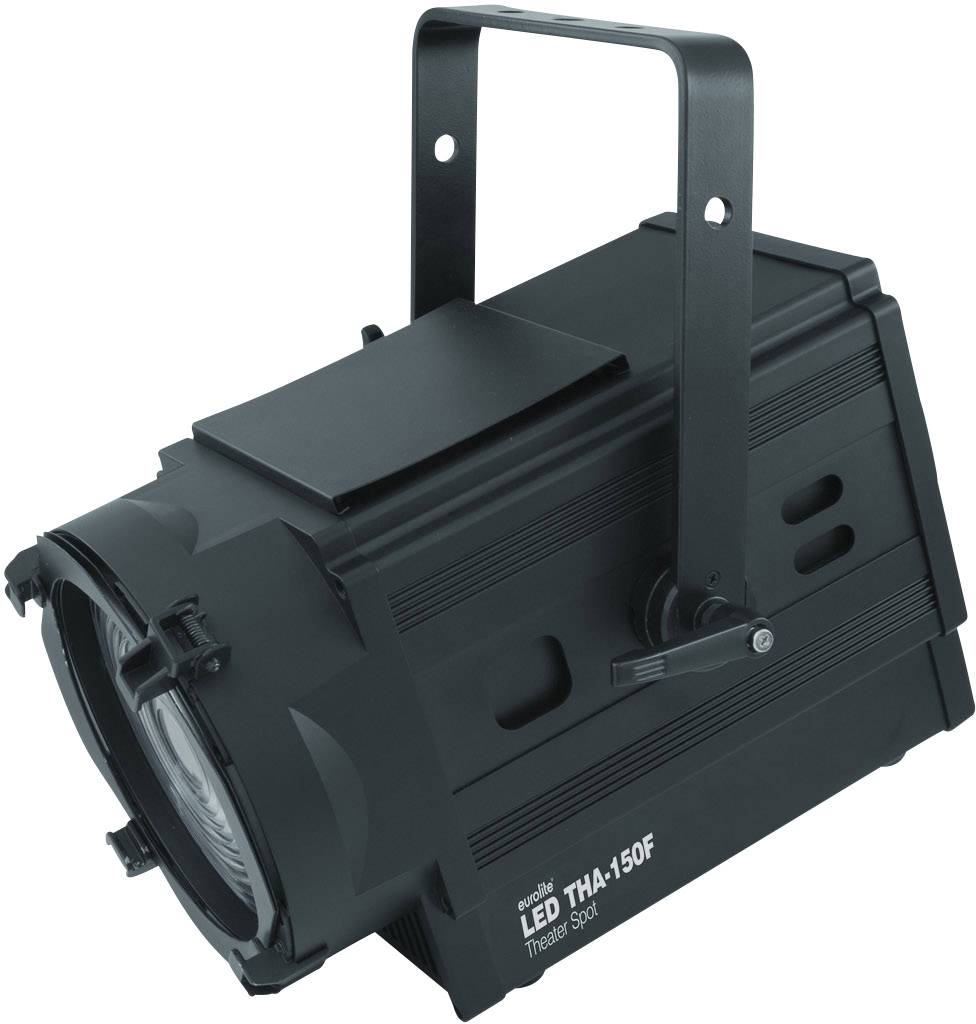

LED THA-150F theater spot
- Dimmer with 8 or 16 bit resolution
- Strobe effect with variable speed and via random generator
- Motorized zoom
- This text is machine translated.
Technical specifications
- Power supply 100-240 V AC, 50/60 Hz
- Total connected wattage 150 W
- Protection class: IP20

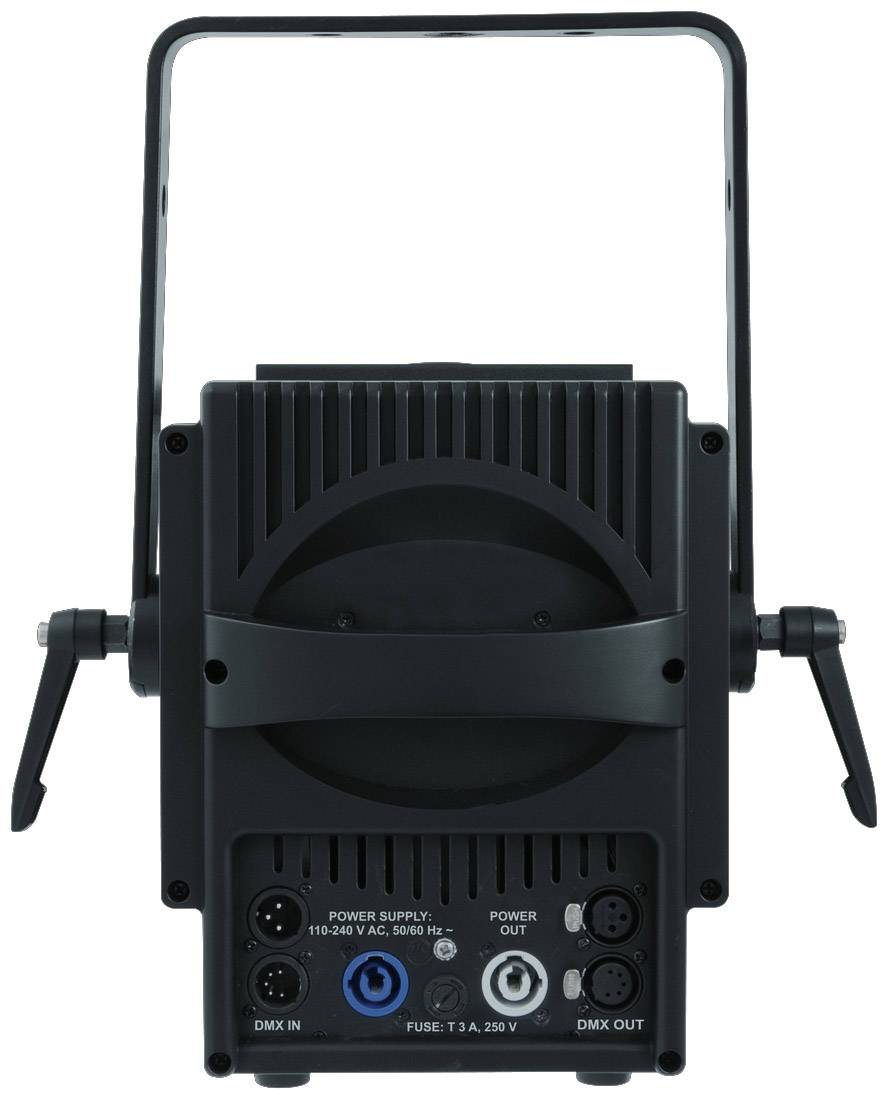

- Power connection: Power feed Powercon (blue), built-in version Power connection cable with earthing contact
- Power output: PowerCon (gray)
- LED: 1 x COB (Chip-on-board) 170 W Dim to warm (homogeneous color mixing)
- DMX input 1 x 3-pin XLR (M) panel-mounted version; 1 x 5-pin XLR (M) panel-mounted version
- DMX output: 1 x 3-pin XLR (W) mounted version; 1 x 5-pin XLR (W) built-in version
- Fan: Yes, temperature controlled
- Housing colour black.
- Special product: Not intended for domestic lighting
- Intended use: Lighting for show effects
- Product type
DMX LED effect light
- LEDs
1
- Dim
(L x W x H) 457 x 336 x 398 mm
- Weight
9.4 kg
n.rel.
- Features
Dimmable
- Bulb type
LED (monochrome)
- Width
336 mm
- Height
398 mm
- Length
457 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2236072 Eurolite 41602133 41602133 DMX LED effect light No. of LEDs (details):1
Description
Features
- Different dimmer curves can be set via the control unit
- LED technology that simulates the color temperature curve of a halogen lamp when dimming
- Zoom can be set via DMX or directly on the device
- Brightness can be adjusted directly on the device via the rotary control
- Equipped with a warm white/amber colored COB LED (2in1)
- Continuously variable WW+A color mixing; color reproduction (CRI) 90
- Light emission via Fresnel lens
- Metal housing
- Mounting bracket for installation on a stand or on a cross beam
- Locking possibility at the bracket
- Temperature-protected handle
- Additional rubber feet if the spot is to be placed on the ground
- Rotating wing limiter and color filter frame included
- 2, 6 or 7 DMX channels can be selected
- DMX-controlled operation or standalone mode
- Supports Remote Device Management (RDM);
- Fan cooled

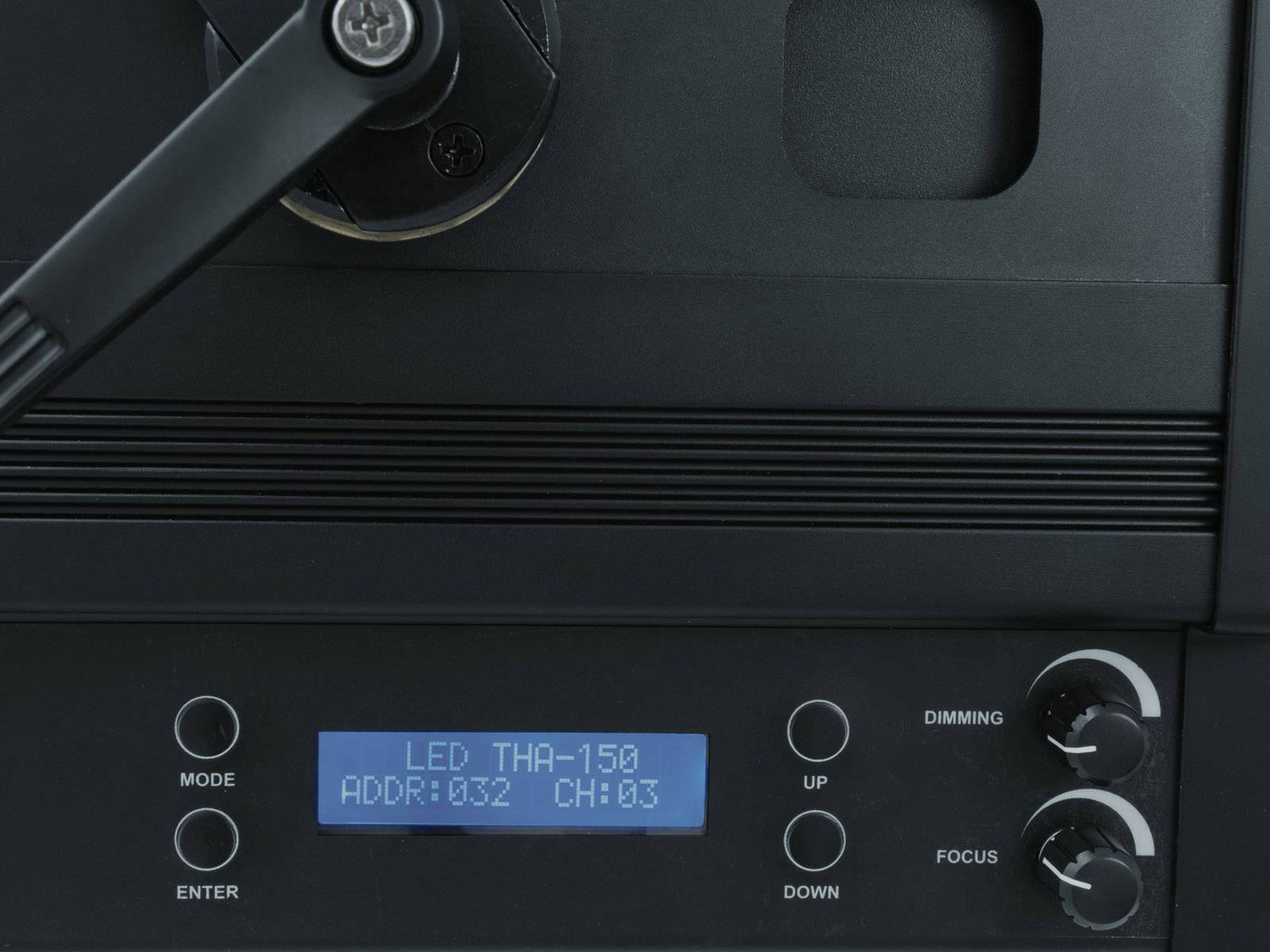

- Convenient addressing and setting via control unit with LCD and four control buttons
- Mains connection via Neutrik PowerCon socket and supplied power cable with safety plug
- Loop-through output for power supply of up to 8 devices
- Control: DMX
- Projection: Flicker-free.
