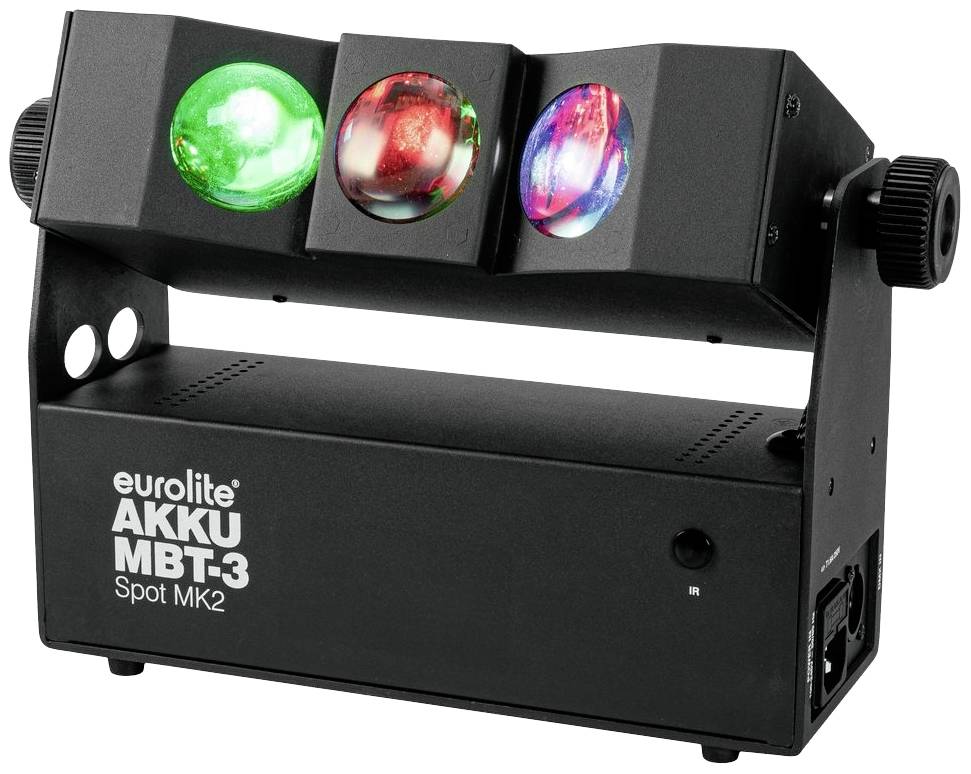

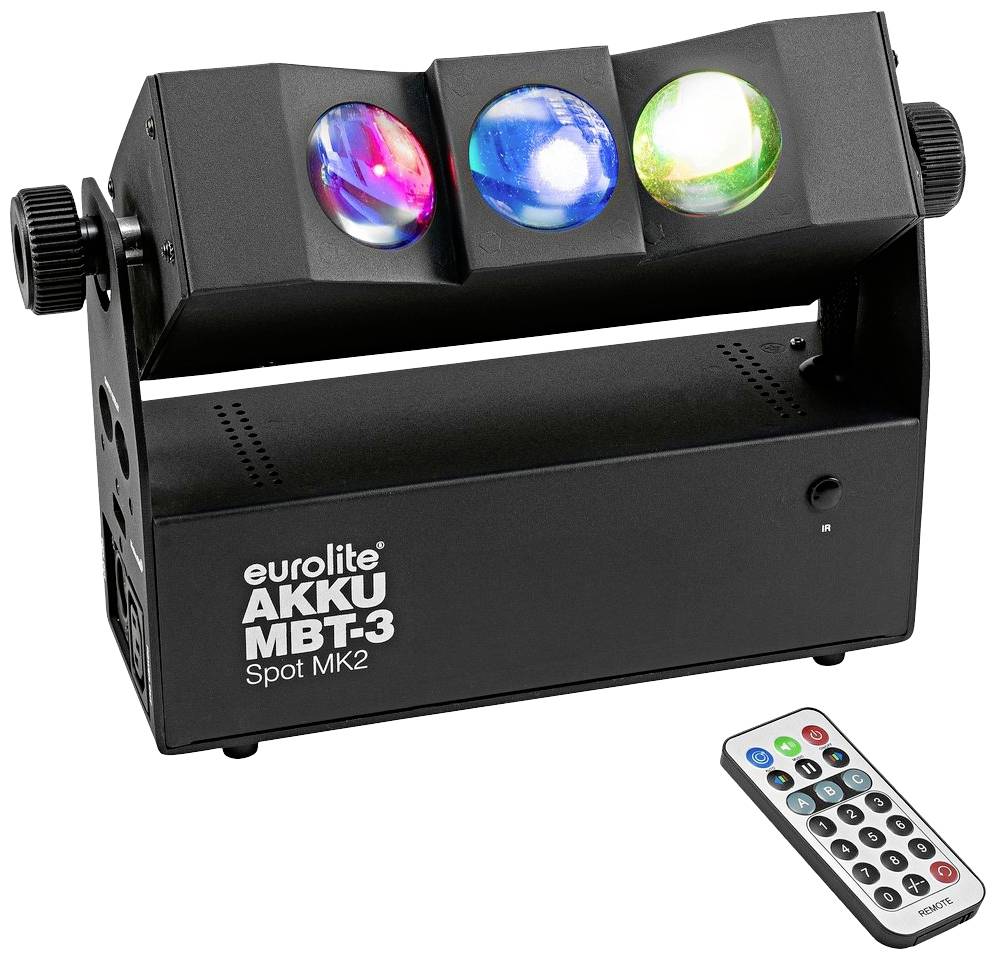

Eurolite 41700150 MBT-3 LED effect light
EAN:
Part number:
Item no:
Highlights & Details
Eurolite BATTERY MBT-3 Spot MK2
- Light compartments for special uplighting and beamer effects with battery
- Strobe effect; Subject effect; Uplight effect
- Wireless, flexible and versatile
- Noiseless operation
Technical specifications
- Product type
LED effect light
24 W
- Colour
RGBW
- Dim
(L x W x H) 305 x 95 x 220 mm
- Weight
4.15 kg
n.rel.
- Features
Battery-powered
Dimmable
Audio control via built-in mic
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
95 mm
- Height
220 mm
- Length
305 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131248 Eurolite 41700150 MBT-3 LED effect light
Description
3 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)
LEDs can be controlled individually
9 integrated show programs
Direct color selection for 15 colors
Continuous color mixing; adjustable color change; adjustable color cross-fading; electronic dimmer; dimmer speed (step response) with adjustable response behavior
Battery life up to 16 h depending on the program used
Can be controlled via stand alone; master/slave function; music control via microphone; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional)
Integrated automatic charging and status display
Flicker-free
Space-saving built
With an angle of radiation of 13°
4 digit 7-segment LED display
The device is cooled by passive convection cooling
Power input and power output for simple connection of up to 8 devices
Possible application: Standing; flying
Pre-programmed at Light´J; Light Captain; EASY SHOW 1; EASY SHOW 3; EASY SHOW 2
For applications such as: Wedding/gala/events; mobile use; mobile DJ's/solo entertainer; small rental
This text is machine translated.
LEDs can be controlled individually
9 integrated show programs
Direct color selection for 15 colors
Continuous color mixing; adjustable color change; adjustable color cross-fading; electronic dimmer; dimmer speed (step response) with adjustable response behavior
Battery life up to 16 h depending on the program used
Can be controlled via stand alone; master/slave function; music control via microphone; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional)
Integrated automatic charging and status display
Flicker-free
Space-saving built
With an angle of radiation of 13°
4 digit 7-segment LED display
The device is cooled by passive convection cooling
Power input and power output for simple connection of up to 8 devices
Possible application: Standing; flying
Pre-programmed at Light´J; Light Captain; EASY SHOW 1; EASY SHOW 3; EASY SHOW 2
For applications such as: Wedding/gala/events; mobile use; mobile DJ's/solo entertainer; small rental
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Display type: 4 digit 7-segment LED display
- Battery:1 x button cell 3.0 V CR2025 Lithium-manganese installed
- Protection class SK I
- Cable length: 1.5 m
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Control: Stand-alone
- Width: 9.5 cm
- Battery type 1 x Lithium-Ion 14.8 V/6600 mAh/97.68 Wh
- Battery: Operating time up to 16h depending upon the used program
- Design: Space-saving built
- LED lamp type
- LED:3 x 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)
- DMX channels: 3
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- Pre-programmed at: Light´J
- Light captain: Light captain
- Angle of radiation 13°
- Beam angle (1/2 peak) 13°
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, T 1.6 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Current output: Cold-device (W) in built-in version
- Flash rate 0 - 25 Hz
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- EASY SHOW 1
- EASY SHOW 2
- EASY SHOW 3
- Charging time 4h
- IR remote control
- Inclination 180 °
Scope of delivery
- Device
- Network cable/power cable
- User manual
- Remote control
- Battery
