Eurolite 50530109 LED strip EEC: F (A - G) open cable ends 12 V 5 m Neutral white 5 m
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Self-adhesive
Colour
Neutral white
Total luminous flux
1950 lm
Highlights & Details

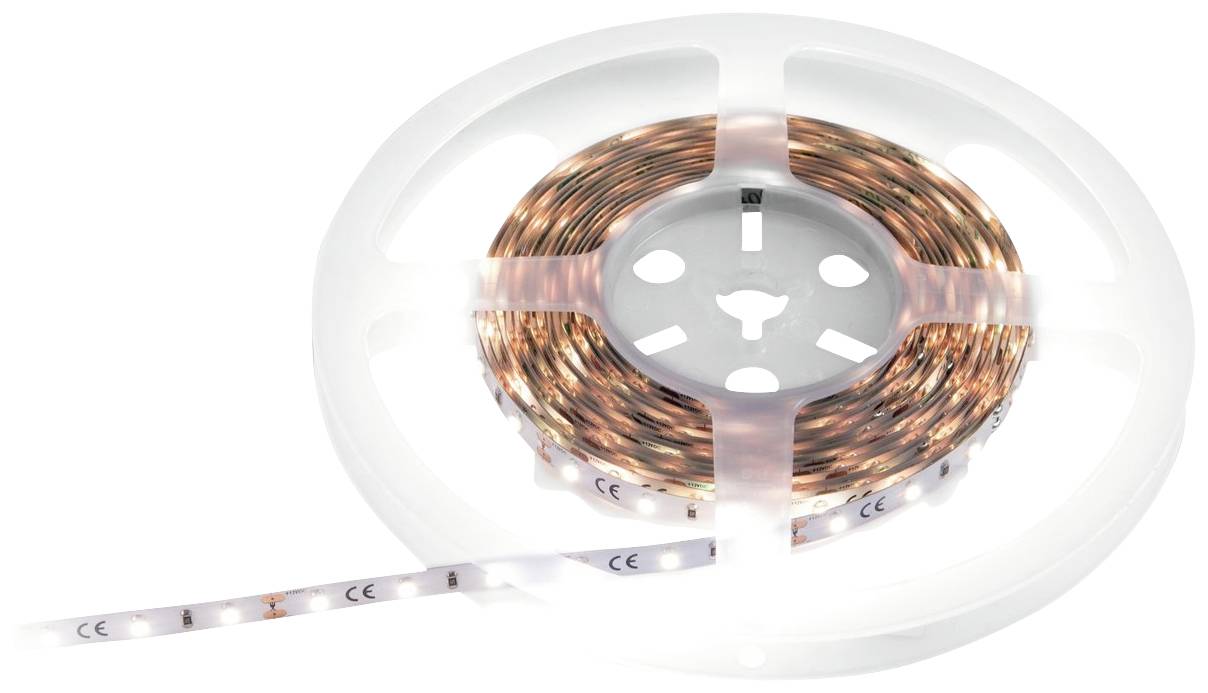

Eurolite LED strip 300 5m 3528 4000K 12V
- Product size (length)= 5 m
- Total luminous flux= 1950 lm
- Neutral white
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Self-adhesive
- Factory colour
White
- Colour
Neutral white
- Min. colour temperature
4000 K
- Colour temperature type
4000 K
- Total luminous flux
1950 lm
- Use
Inside
- Colour rendering index
93 Ra
- Luminous flux (Φ)
1950 lm
- Operating voltage
12 V
- Connection
Connector
- Dim
(L x W x H) 5 m x 8 mm x 2 mm
- Power consumption
18 W
- Power consumption per unit
3.5 W
- LEDs
300
- LED number per unit
60
- Width
8 mm
- Height
2 mm
- Length
5 m
- Unit length
5 cm
IP20
F (A - G)
- Energy consumption
18 kWh/1000h
- No. of bulbs
300
- Colour rendering index
93 Ra
- Weight
90 g
7 lm
- Material
Plastic
- Protection class
III
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2890500 Eurolite 50530109 LED strip EEC: F (A - G) open cable ends 12 V 5 m Neutral white 5 m
Description
Flexible LED strips with a size CRI of 90 Flexible LED strips for decorative lighting indoor use
High-quality materials and a solid design guarantee a long life and excellent color reproduction
This text is machine translated.
High-quality materials and a solid design guarantee a long life and excellent color reproduction
This text is machine translated.
Features
- Colour temperature 4000 K
- Variable divisible in segments
- Self-adhesive back side
- Supplied on plastic coil
- Feed cable, straight and flexible connectors available as accessories
- 300 high-performance LEDs SMD 3528 neutral white (NW)
- Can be controlled via accessories
- Very high color rendering index (CRI)
- For applications such as: Trade fairs and shops
- Voltage supply: 12 V DC
- Total connected wattage 17.5 W
- Protection class: IP20
- Protection class SK III.
- Luminous flux (lumen) per meter: 390 lm/m

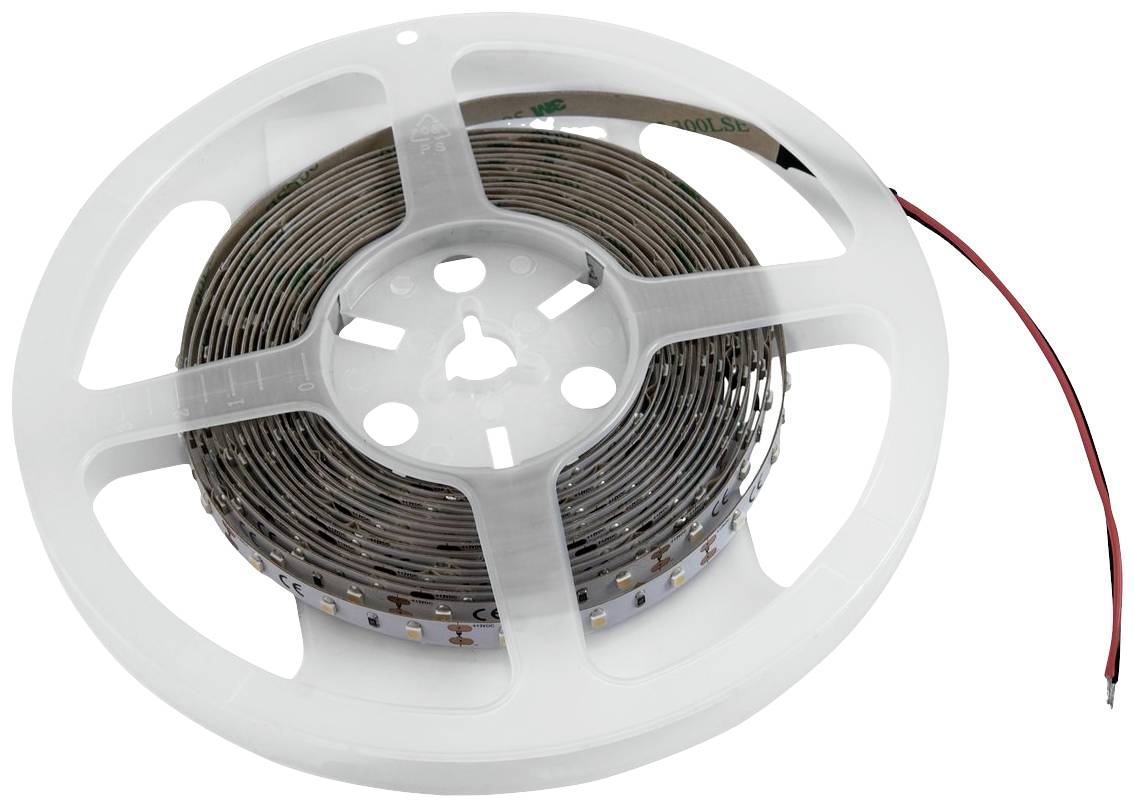

- Power connection: Fixed connection cable with open cable ends
- Cable length approx. 0.15 m
- 300 x SMD 3528 neutral white (NW)
- Colour temperature: 4000K
- Control: Accessories
- Mounting/mounting: Self-adhesive
- Colour rendering index (CRI): 93 Ra
- Bulbs/Meter: 60 piece Power/Meter: 3.5 W
- Lamps/hose 300 pieces
- Lamp distance 16 mm
- Cutting marker 5 cm
- Housing color: White
Scope of delivery
- 1 bulbs
- 1 x Operating manual
