Eurolite 50530136 LED strip EEC: G (A - G) open cable ends 12 V 5 m RGB 5 m
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Self-adhesive
Colour
RGB
Total luminous flux
1800 lm
Highlights & Details

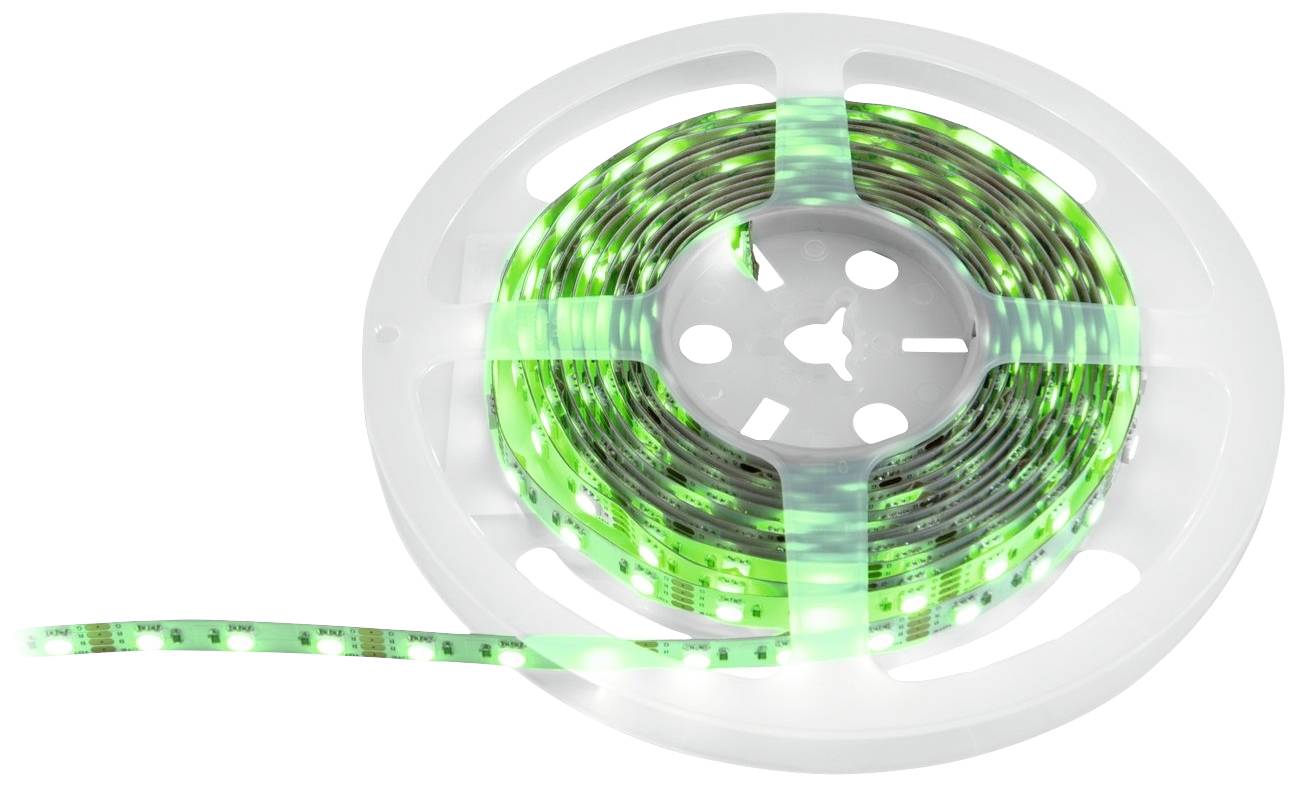

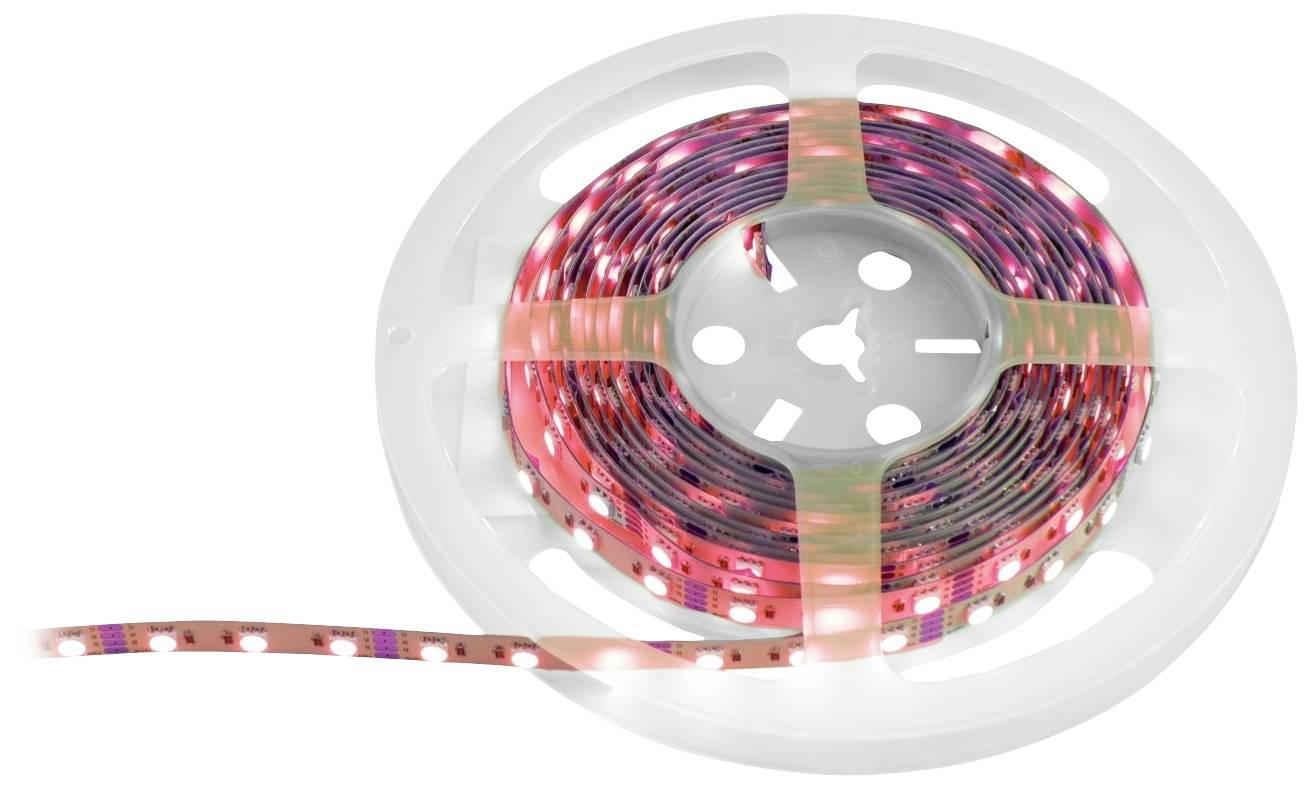

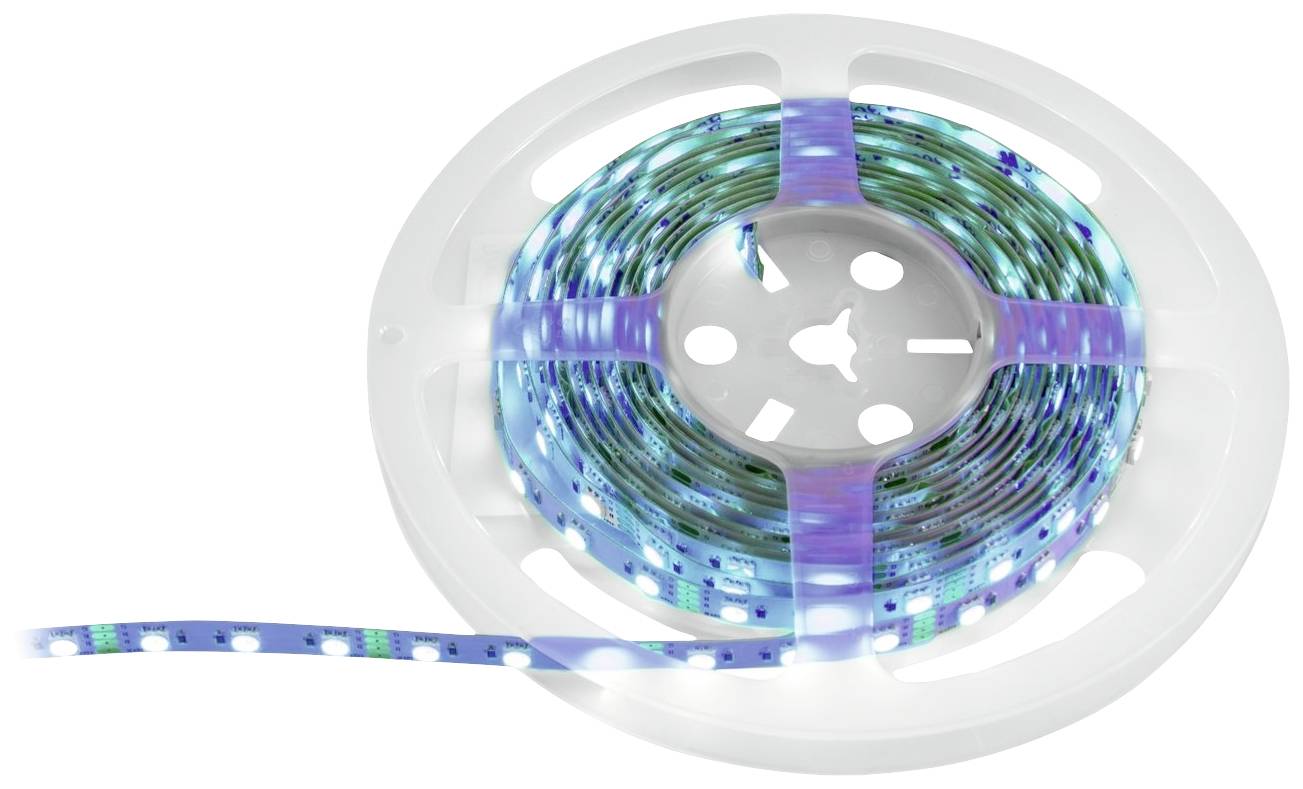

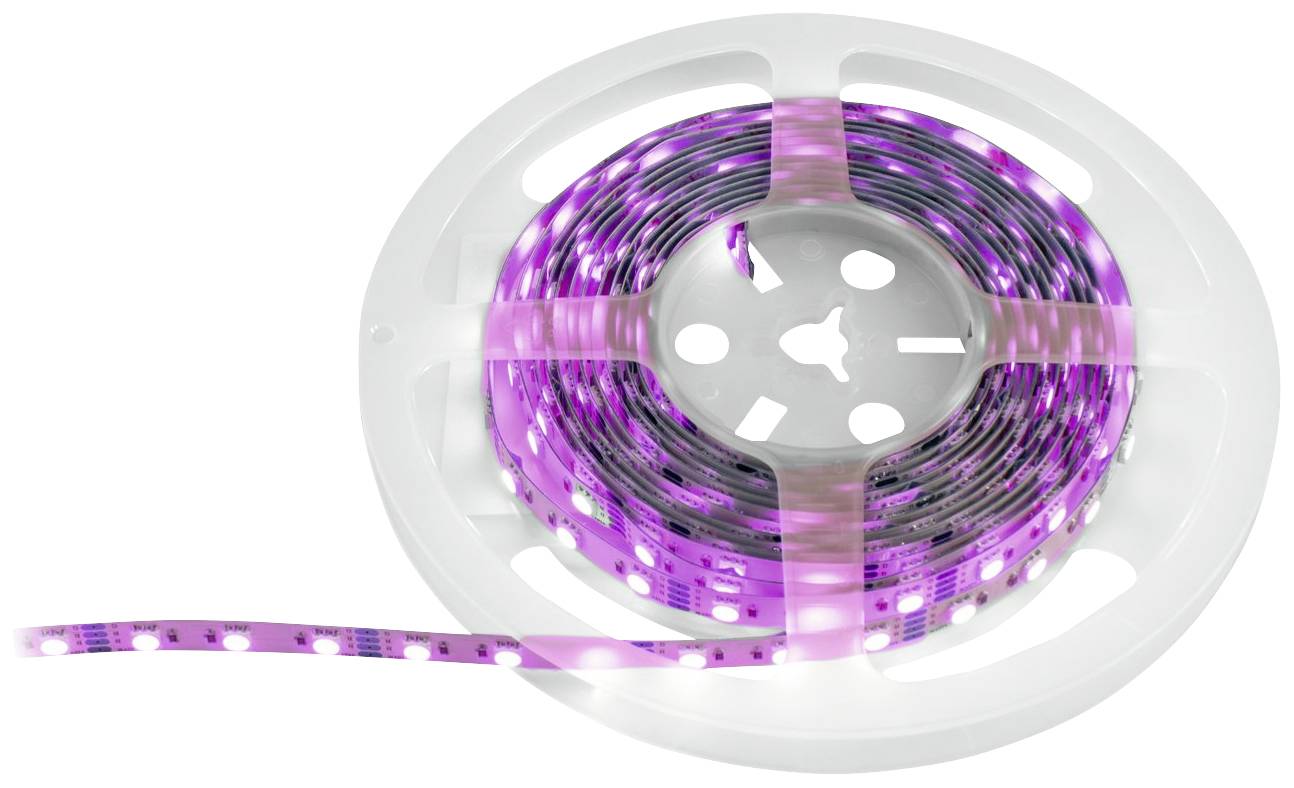

Eurolite LED strip 300 5m 5050 RGB 12V
- Product size (length)= 5 m
- Total luminous flux= 1800 lm
- RGB
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Self-adhesive
- Factory colour
White
- Colour
RGB
- Min. colour temperature
3000 K
- Total luminous flux
1800 lm
- Use
Inside
- Operating voltage
12 V
- Connection
Connector
- Dim
(L x W x H) 5 m x 1 cm x 2 mm
- Power consumption
55 W
- Power consumption per unit
11 W
- LEDs
300
- LED number per unit
60
- Width
1 cm
- Height
2 mm
- Length
5 m
- Unit length
5 cm
IP20
G (A - G)
- Energy consumption
55 kWh/1000h
- No. of bulbs
300
- Weight
140 g
6 lm
- Material
Plastic
- Protection class
III
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2890504 Eurolite 50530136 LED strip EEC: G (A - G) open cable ends 12 V 5 m RGB 5 m
Description
Flexible LED strips with RGB LEDs Flexible LED strips for decorative lighting in the interior
High-quality materials and a solid design guarantee a long life and excellent color reproduction
Variable divisible in segments
This text is machine translated.
High-quality materials and a solid design guarantee a long life and excellent color reproduction
Variable divisible in segments
This text is machine translated.
Features
- Self-adhesive back side
- Supplied on plastic coil
- Feed cable, straight and flexible connectors available as accessories
- 300 powerful LEDs SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
- Can be controlled via System Controller
- For applications such as: Trade fairs and shops
- 1 x device, 1 x user manual
- Voltage supply: 12 V DC / 4.5 A
- Total connected wattage 55 W
- Protection class: IP20
- Protection class SK III.
- Luminous flux (lumen) per meter: 360 lm/m

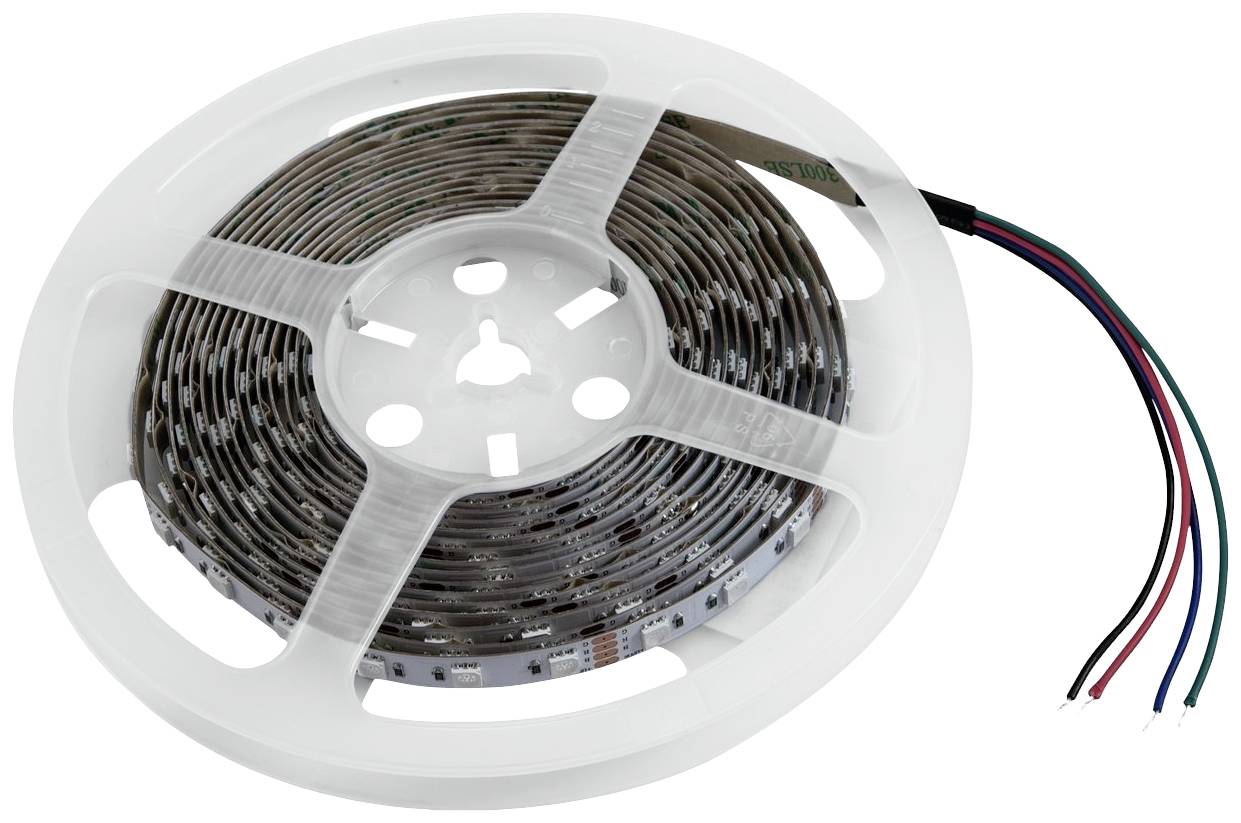

- Power connection: Fixed connection cable with open cable ends
- 300 x SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
- Control: System controller
- Mounting/mounting: Self-adhesive
- Bulbs/Meter: 60 piece Power/Meter: 11 W
- Lamps/hose 300 pieces
- Lamp distance 16 mm
- Cutting marker 5 cm
- Housing color: White
- Legal specifications Special product: Not intended for room lighting in households Intended use: Lighting for show effects
Scope of delivery
- 1 bulbs
- 1 x Operating manual
