Eurolite 50530190 LED strip EEC: G (A - G) open cable ends 24 V 5 m RGB 5 m
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
open cable ends
LED strip features
Self-adhesive
Colour
RGB
Total luminous flux
1500 lm
Highlights & Details
Eurolite LED IP strip 150 5m RGB 24V
- Product size (length)= 5 m
- Total luminous flux= 1500 lm
- RGB
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
open cable ends
- LED strip features
Self-adhesive
- Factory colour
White
- Colour
RGB
- Min. colour temperature
3000 K
- Total luminous flux
1500 lm
- Use
Inside/outside
- Luminous flux (Φ)
1500 lm
- Operating voltage
24 V
- Connection
Open cable ends
- Dim
(L x W x H) 5 m x 1 cm x 2 mm
- Power consumption
30 W
- Power consumption per unit
7.2 W
- LEDs
150
- LED number per unit
150
- Width
1 cm
- Height
2 mm
- Length
5 m
- Unit length
17 cm
IP65
G (A - G)
- Energy consumption
30 kWh/1000h
- No. of bulbs
150
- Weight
180 g
10 lm
- Protection class
III
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2890509 Eurolite 50530190 LED strip EEC: G (A - G) open cable ends 24 V 5 m RGB 5 m
Description
Eurolite with its numerous IP LED strips also offers light on strip for outdoor use. A total of several LED strips are available, which comply with the protection class IP68. The light bands have a length of 5 meters. They are plain - red, blue, green, yellow, cold white, Warm white - and it is available in RGB. The single-color versions can be ordered with 150 or 300 LEDs, i.e. with a shorter or longer distance between the individual diodes. For the RGB versions, a distinction is made between 12 V and 24 V operation - the number of LEDs is 150 in each case. It is controlled via an optional LED controller, which controls the brightness and speed of color change or 4 color programs can be run. The flexible LED bands are supplied on a practical plastic coil. With their self-adhesive back, they can be easily attached. Colours and shapes can be used as desired and in situ - the Flexi LEDs are very adaptable.Flexible LED-strips with RGB-LEDs for interior and external area, 24 V flexible LED-strips for decorative lighting
This text is machine translated.
This text is machine translated.
Features
- Variable divisible in segments
- Self-adhesive back side

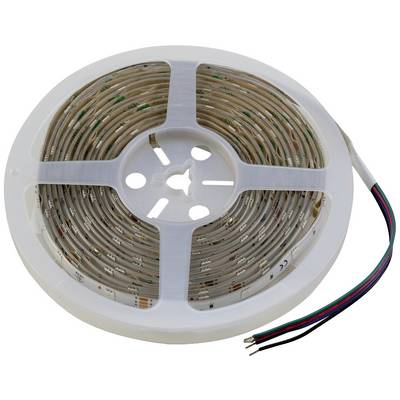

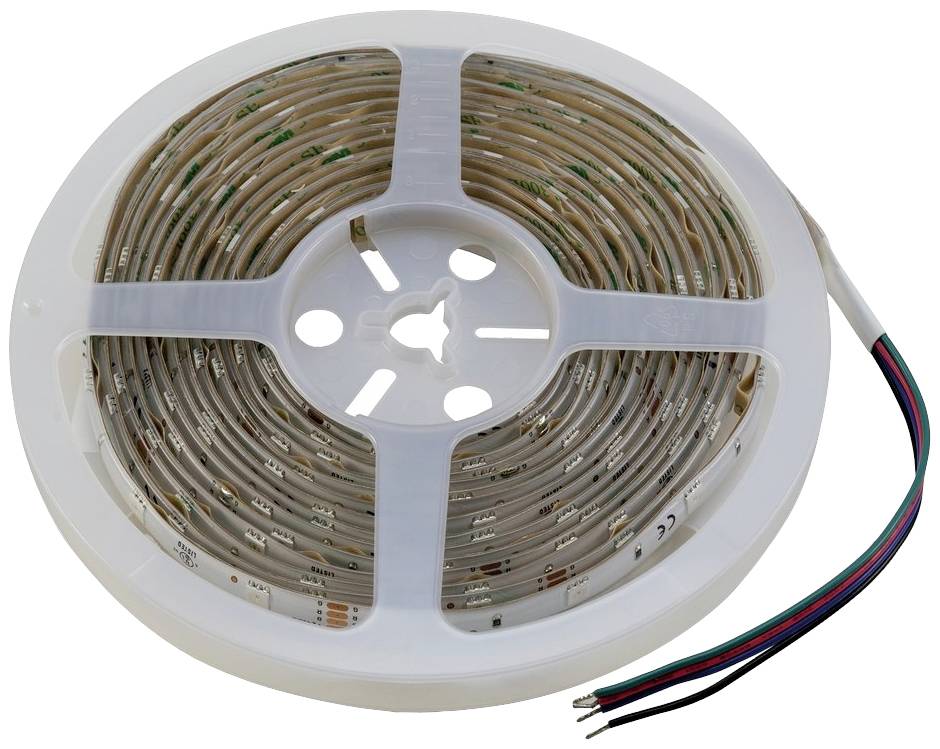

- Supplied on plastic coil

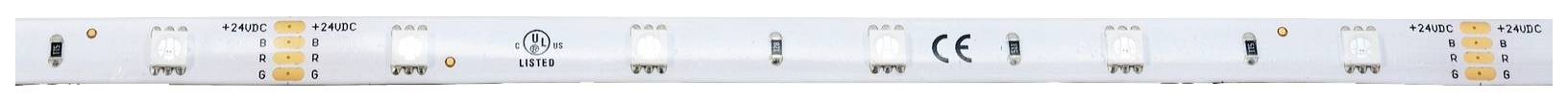

- 150 powerful LEDs SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
- Can be controlled via System Controller
- Suitable for outdoor use
- For applications such as: Trade fairs and shops
- 1 x device, 1 x user manual
- Voltage supply: 24 V DC
- Total connected wattage 30 W
- Protection system: IP65
- Protection class SK III.
- Luminous flux (lumen) per meter: 300 lm/m
- Electrical connection:

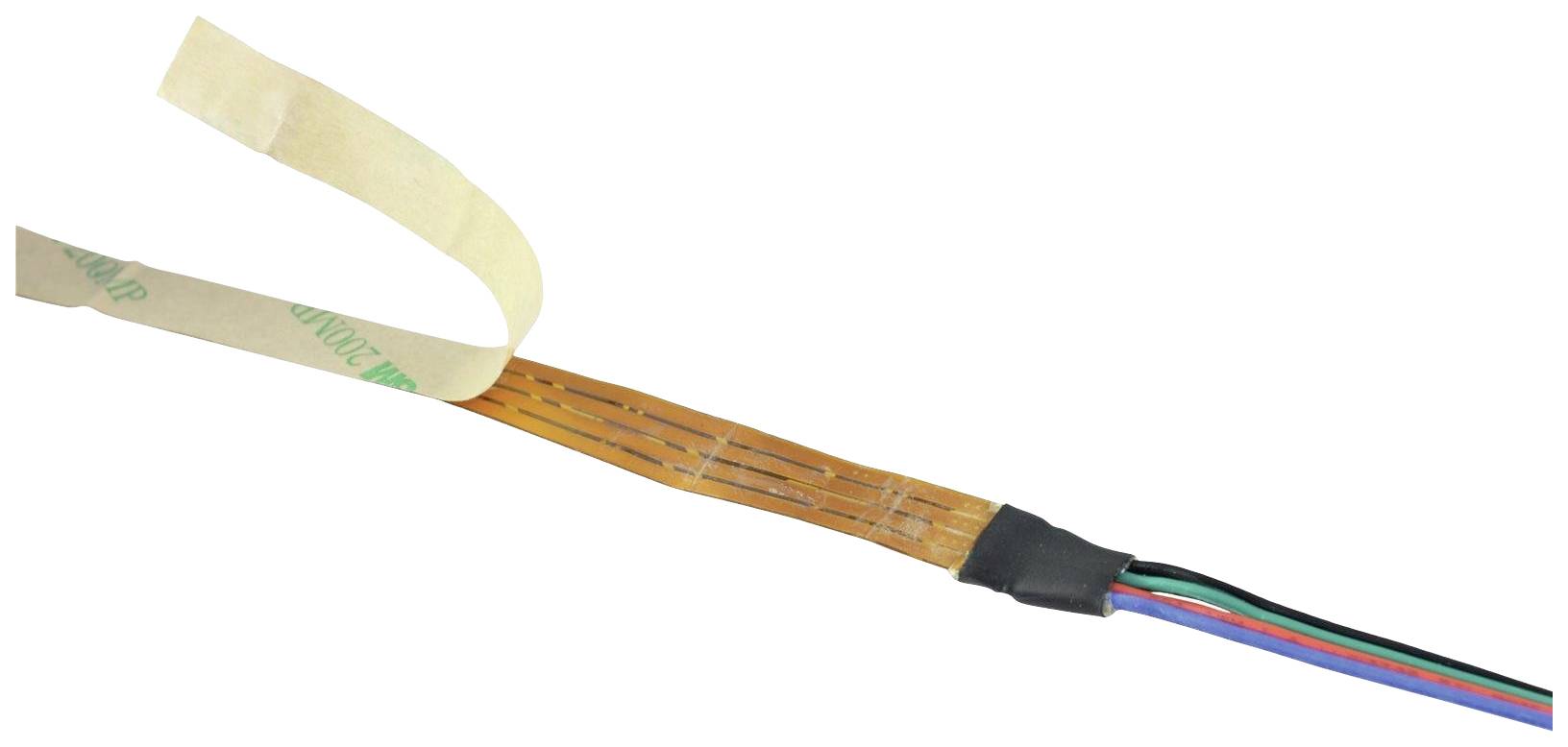

- Connection cable with open cable ends
- Cable length approx. 0.15 m
- 150 x SMD 5050 3-in-1 TCL RGB (homogeneous color mixing)
- Control: System controller
- Mounting/mounting: Self-adhesive
- Bulbs/Meter: 30 piece Power/Meter: 7.2 W
- Lamps/hose 150 pieces
- Lamp distance 33 mm
- Cutting marker 17 cm
- Housing color: White
- Legal specifications Special product: Not intended for room lighting in households Intended use: Lighting for show effects
Scope of delivery
- 1 bulbs
- 1 x Operating manual
Hints
Legal specifications: Not intended for room lighting in households;Lighting for show effects.
